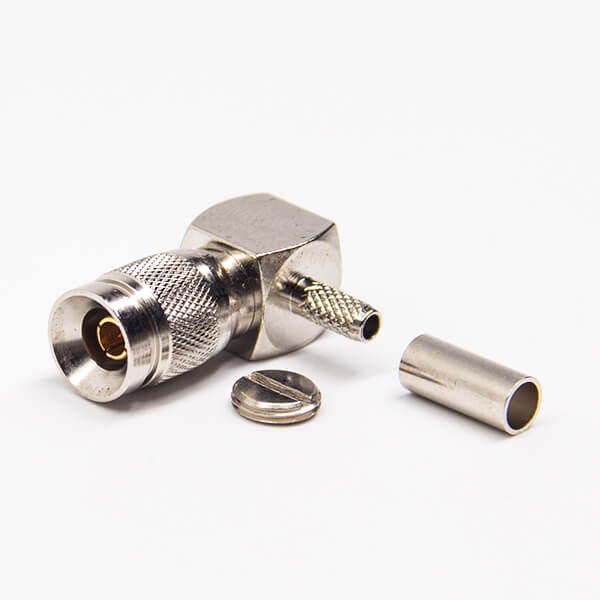

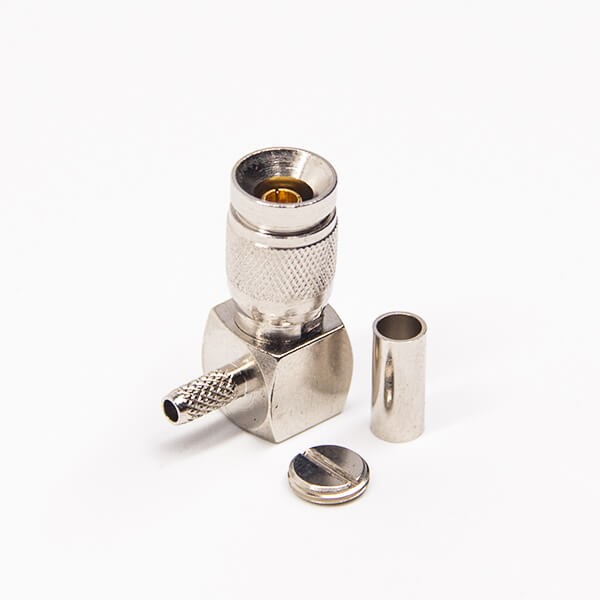

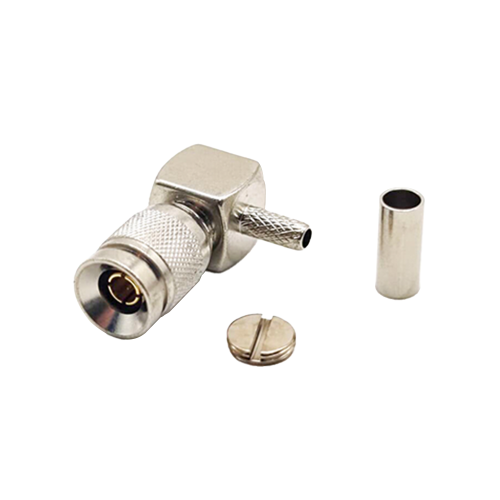

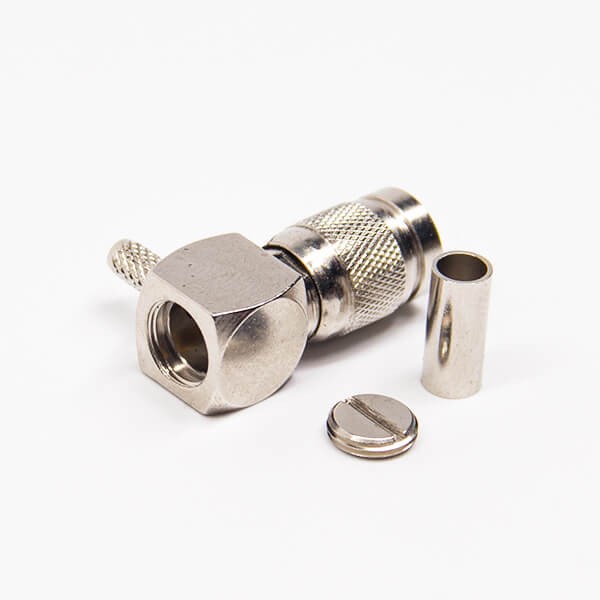

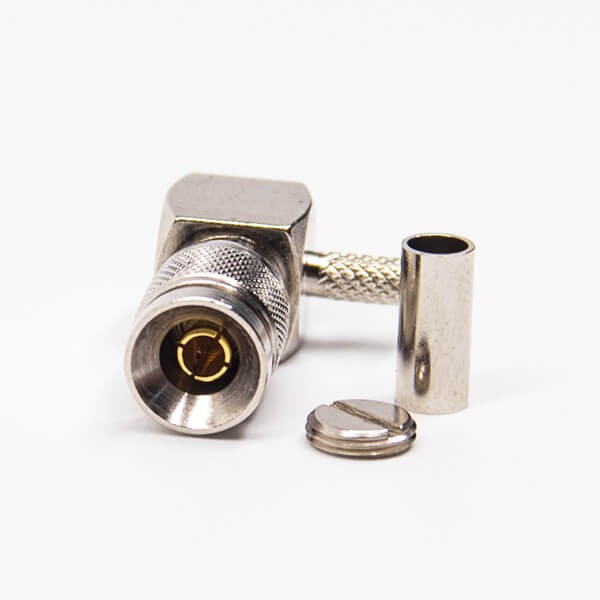

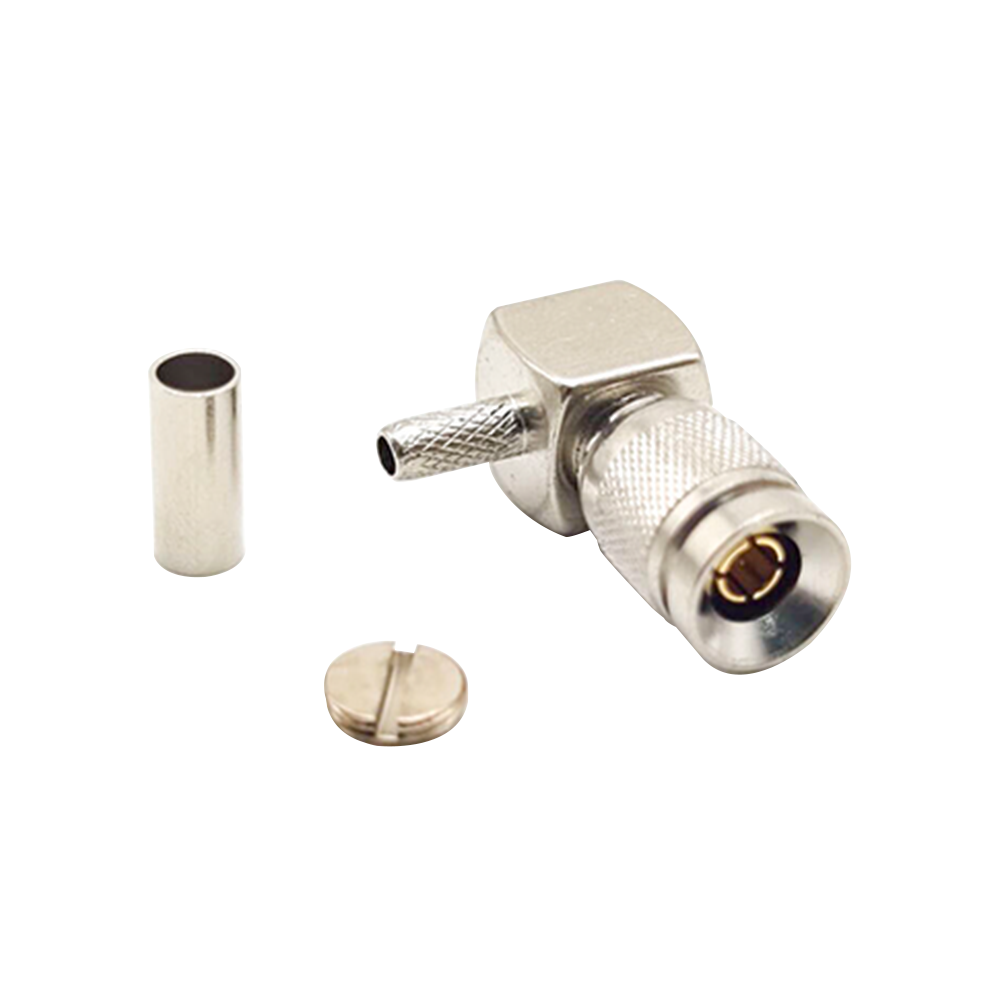

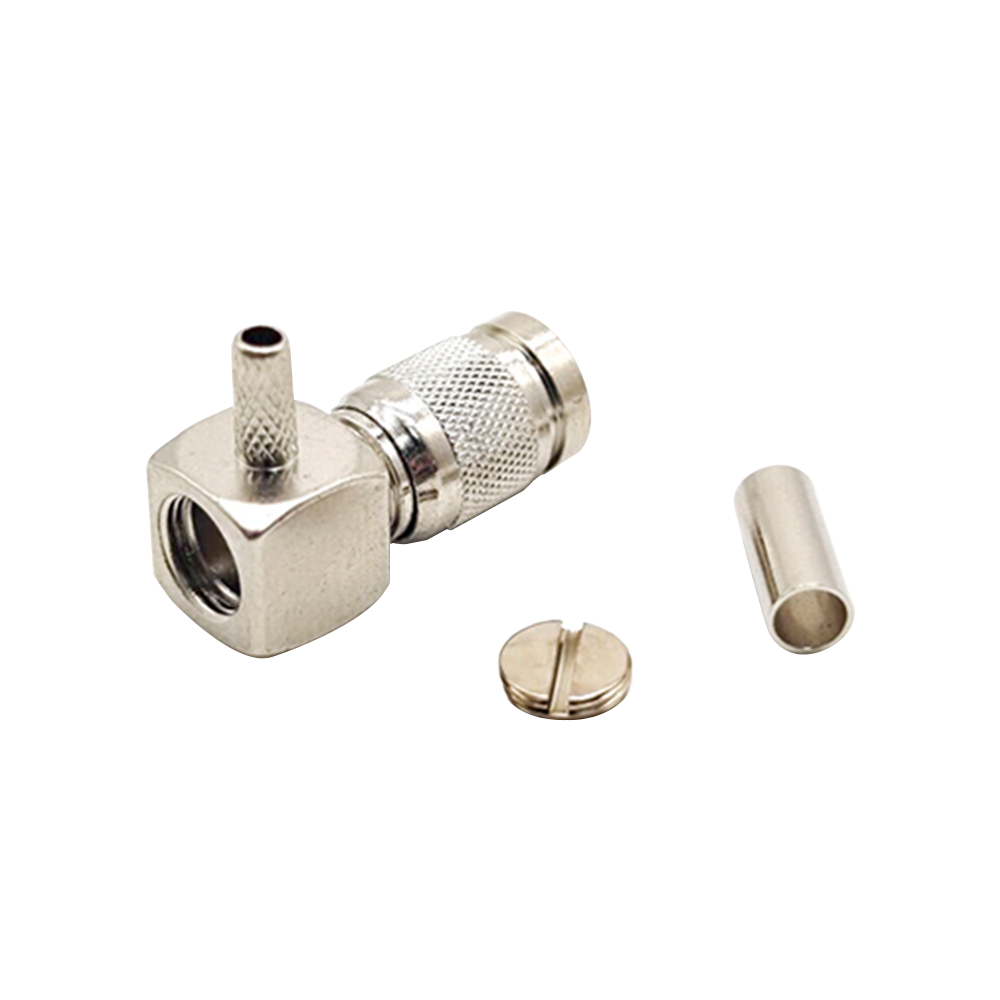

DIN 1.0/2.3 Connector Right Angle Male Crimp Type for Coaxial Connector

Main Application of DIN1.0/2.3 Connectors:

• Aerospace and Defense: Communication systems
• Telecommunications: CATV, Central office, High-density Radios, Base station, Switching equipment
• Networking: Video Equipment, Radio boards

Electrical Characteristics

• Impedance：50 ohm or 75 ohm
• Frequency Range: 0~4 GHz for 50 ohm, 0~2 GHz for 75 ohm
• VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
• Dielectric Withstanding Voltage: 750 V rms
• Working Voltage: 250 V rms
• Center Contact Resistance ≦ 6.0 mΩ  (Milliohms max.)
• Outer Contact Resistance  3.0 mΩ  (Milliohms max.)
• Insultation Resistance ≧ 10⁴ mΩ

Mechanical Characteristics

• Coupling: Push-pull
• Contact Retention: 4 lbs min.
• Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Environmental Characteristics: -40°C ~ +155°C
