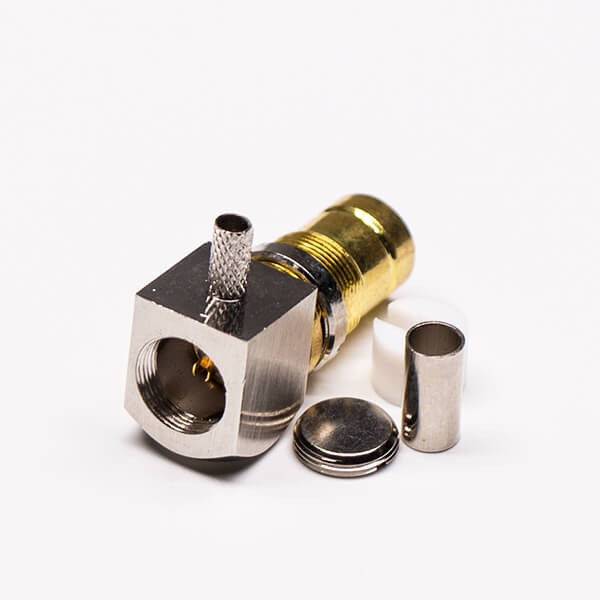

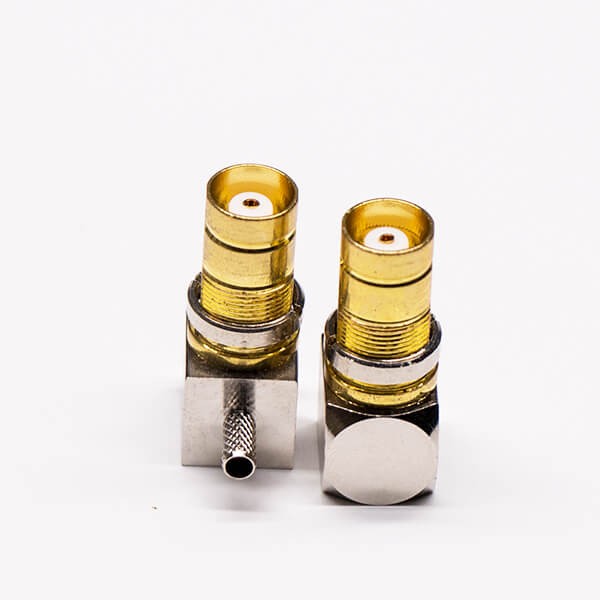

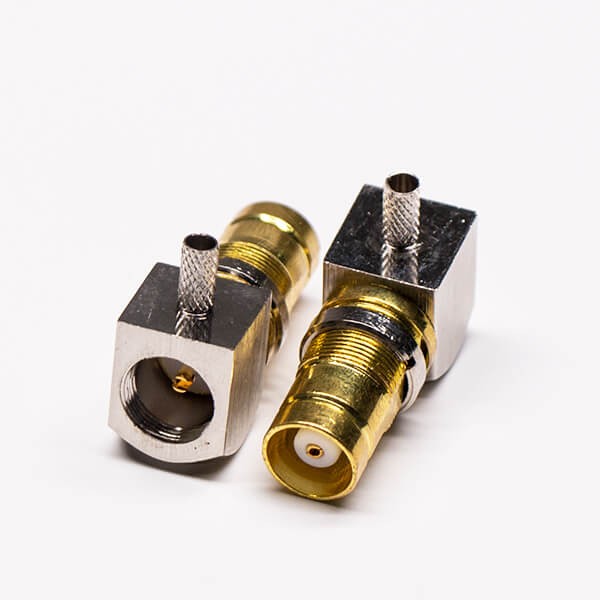

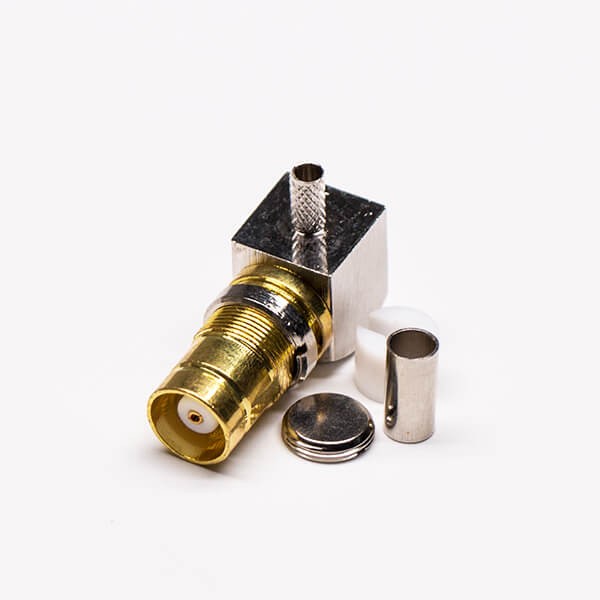

20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type

20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
20pcs DIN 1.6/5.6 Connector Female Right Angled Crimp Type
  • DIN1.6/5.6 Connector, Cable Connector, Female/Jack,Crimp Type,Right Angled;
  • Miniature design only requried limited space for installation;
  • Threaded coupling version ensure safty and high durability;
  • Good performance at 75Ω impendance and up to 1GHz frequency.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.6/5.6 Connectors:

Antenna, Base Stations, Routers, Wireless application, Switching Equipment, Computers/LAN and Telecom

- Write a review
from
$66.96
Ex Tax: $66.96
  • Stock: In Stock
  • Model: JE00002770
  • Weight: 11.00g
  • SKU: JE00002770
Products Sold: 0
Product Views: 8
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics None
Gender Female
Function Dustproof
Direction Right Angle
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method Cable
Outer conductor connection Crimp
  • Description

Electrical Characteristics

  • Impedance：75 ohm
  • Frequency Range: 0~1 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 1000 V rms
  • Working Voltage: 335 V rms
  • Center Contact Resistance ≦ 4.0 mΩ  (Milliohms max.)
  • Outer Contact Resistance  2.0 mΩ  (Milliohms max.)
  • Insultation Resistance ≧ 10⁴ mΩ

Mechanical Characteristics

  • Coupling: M9 x 0.5 Thread
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: -40°C ~ +155°C
