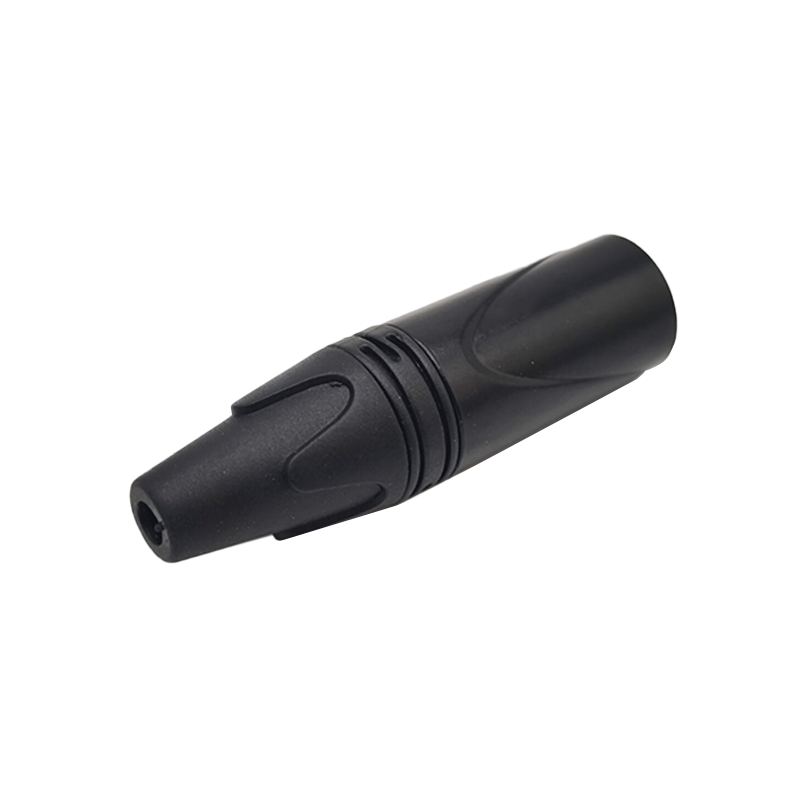

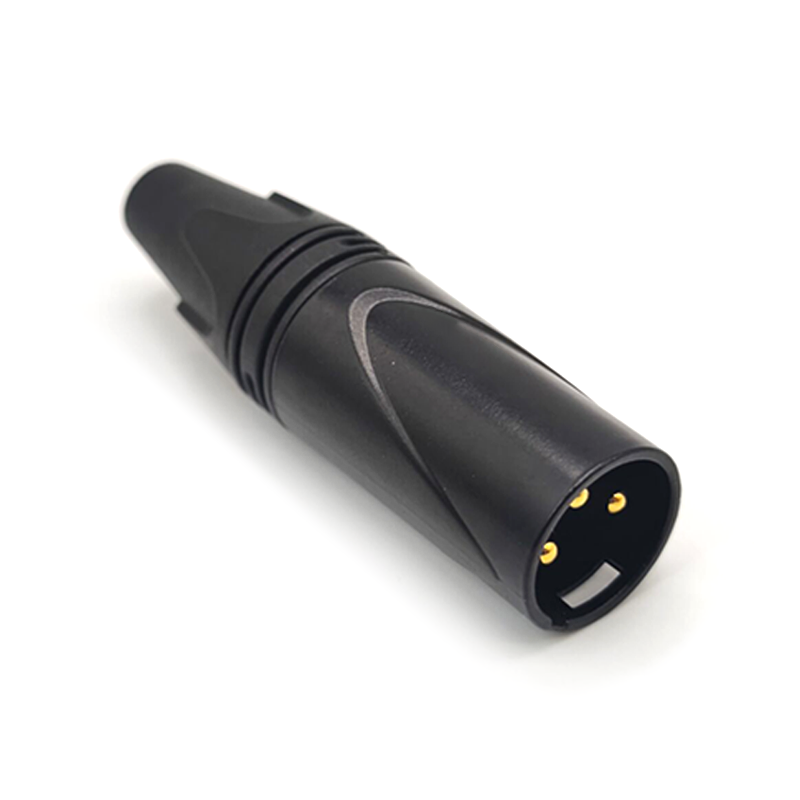

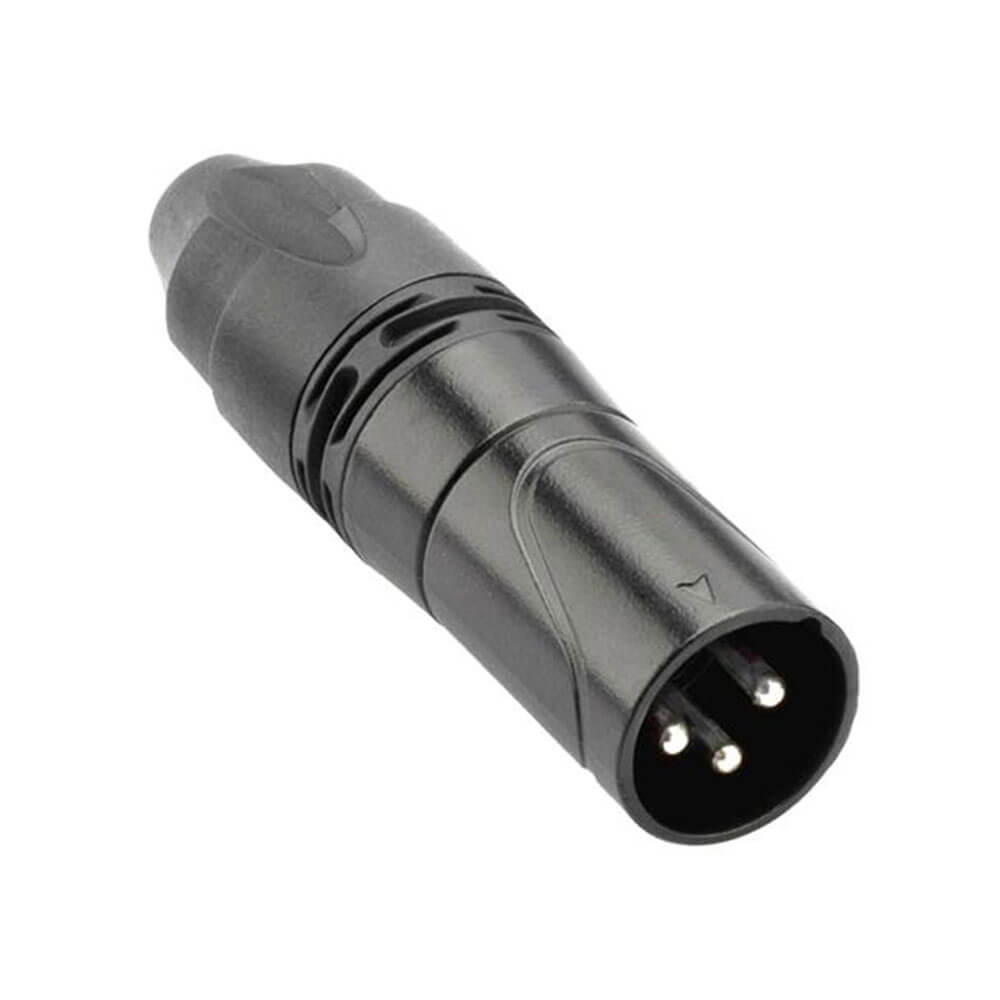

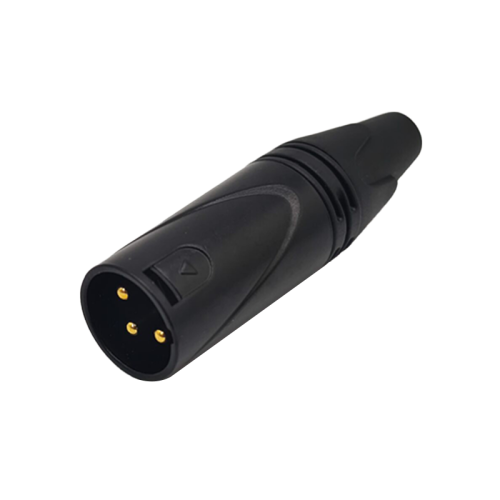

Dmx 3 Pin Male Terminator XLR Connector

Applications:

• Widely used in amplifiers, mixers, and stage peripherals
• Power conversion and connection for digital, audio and video, set-top boxes, PC peripherals, home appliances, instruments and other electronic products

Environmental Characteristics

• Contact Resistance: ≤0.02 Ohm
• rated Voltage: 250V DC 1.0A
• insulation Resistance: ≥100M Ohm

Mechanical Characteristics

• Insertion and Extraction Force: 10N~50N
• WITHSTAND voltage: 1500V,AC /min
• terminal strenth: ≥30N
• Life: 5000 times

Environmental Characteristics

• Temperature: -30~80 ℃

Material:

• 1.Terminal: All copper;
• 2. Base: environmentally friendly PBT;
• 3. Welding process: suitable for soldering iron and wave soldering;
