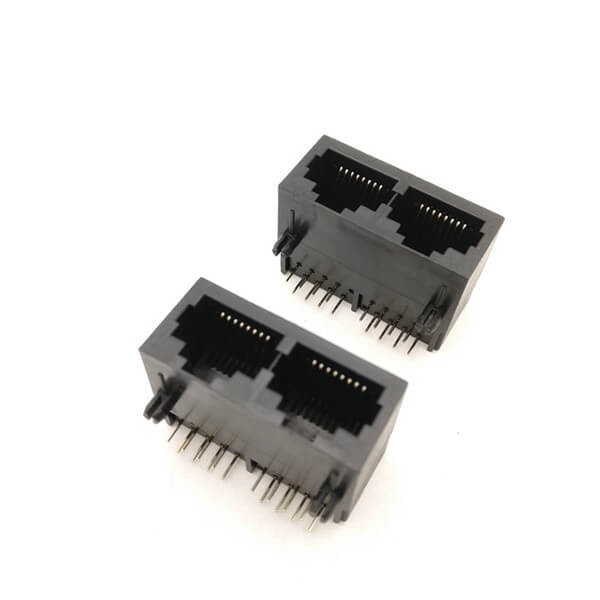

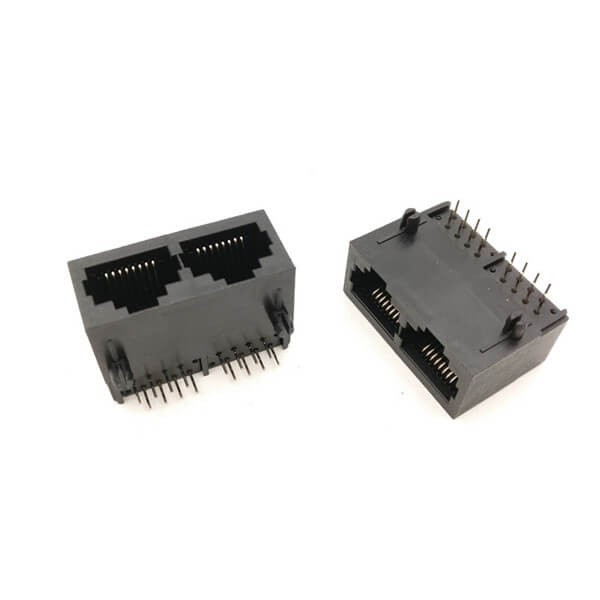

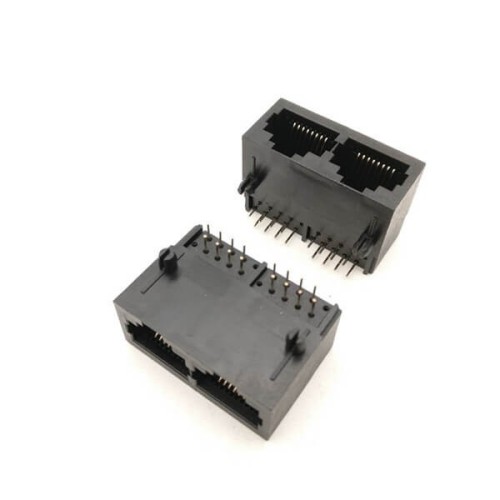

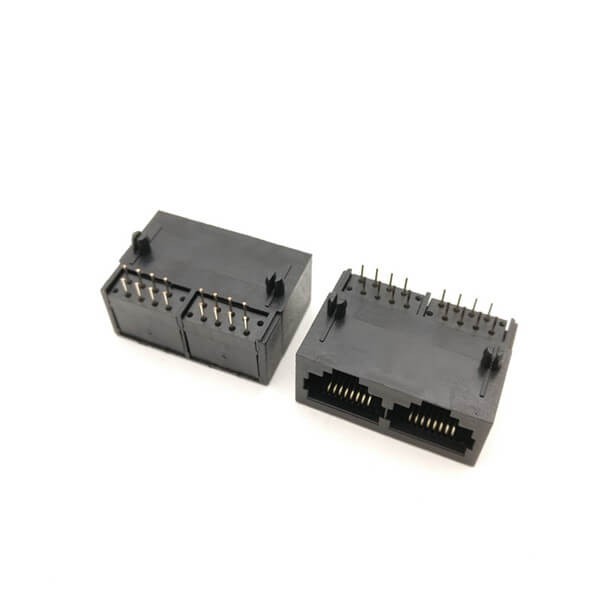

Dual RJ45 LAN Modular Network Connector 8P8C 1x2 All Plastics 90 Degree Unshield without Led Female
Features:
- RJ45 Connector,Jack,8P8C,2 Ports,1*2,Single Row,Angled(90°),Gold Plated,Through Hole,PCB Mount,Unshield,Without Led,Without Filtered,Without POE,Not Waterproof
- Comprehensive range for all application needs;
- Stackable side by side design;
- Supports wide variety of low-speed networking applications;
- Supports high-speed Gigabit Ethernet applications;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
from
$1.29
Ex Tax: $1.29
10 or more $1.19
30 or more $1.10
50 or more $1.03
100 or more $0.97
200 or more $0.90
- Stock: In Stock
- Model: JE00006214
- Weight: 18.00g
- SKU: JE00006214
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Specifications
attribute-list | |
Terminal type | Through Hole |
Connector Type | Socket |
Shield | Unshielded |
Number of contacts | 8p8c |
Continuous plating | Gold |
Direction | Right Angle |
LED | No |
Number of Rows | 1×2 |
Filter | No |
Waterproof level | Not Waterproof |
Port number | Dual |
Installation method | PCB Mount |
- Description
Applications:
- Routers
- Ethernet switches
- ATMs
- Point of sales terminals
- Vending machines
- Set-top boxes
- Technology analysis equipment
- Laptops
- Phone line security systems
Electrical Characteristics
- Current rating: 3A continuous
- Insulation resistance: 500MΩ min.
- Dielectric withstanding voltage: 1500V min.
- Voltage rating 1000V rms
Mechanical Characteristics
- Mating force: 5N to 20N
- Unmating force: 8N to 20N
- Durability:10,000 mating cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 120°C
Material:
Part | Material | Finish |
Housing | Nylon 46 glass filled | UL94V-0 |
Shield | Copper Alloy | Nickel Plating |
Contact | Copper Alloy | Au over nickel |
