Features:

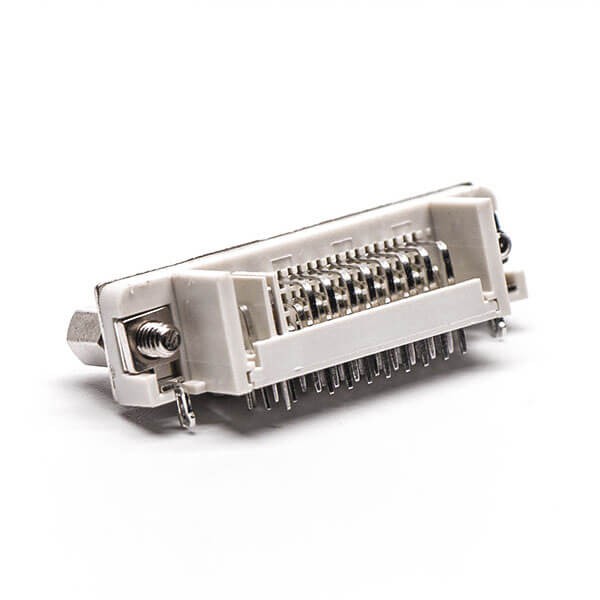

  • DVI-I Connector,24+5,Angled/90°,Nut,White,Female/Jack,Though Hole,PCB Mount
  • reliable and high-performance digital visual interface (DVI);
  • providing plug and play connectivity for ease of use;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • Consumer Electronics
  • Set-top boxes
  • High-end TVs/monitors
  • Video graphics applications
  • Workstations
  • Personal computers
  • business equipment
from
$1.67
Ex Tax: $1.67
10 or more $1.54
30 or more $1.42
50 or more $1.34
100 or more $1.25
200 or more $1.17
  • Stock: In Stock
  • Model: JE00003664
  • Weight: 8.90g
  • SKU: JE00003664
Products Sold: 0
Product Views: 1
  • Specifications
attribute-list
Installation characteristics Through Hole
Gender Female
Installation method PCB Mount
  • Description

Electrical Characteristics

  • Contact Resistance:20 Millohms Max
  • Insulation Resistance:1000Megohms Min
  • Dielectric Withstanding Volage:1000V DC
  • Dielectric Withstanding Voltage:500V DC RMS ±50V 60HZ
  • Current Rating:1.5AMP min

Mechanical Characteristics

  • Extraction force;1KGf Min. 4KGf Max
  • Insertion force:4.5KGf Max

Environmental Characteristics

  • Operating Temperature:-20°C~ + 85°C

Material:

PartMaterialFinish
Body steelNickel /Tin
Center Contact PinBrass------
Insulator PBT BK(UL94-V0)
------
