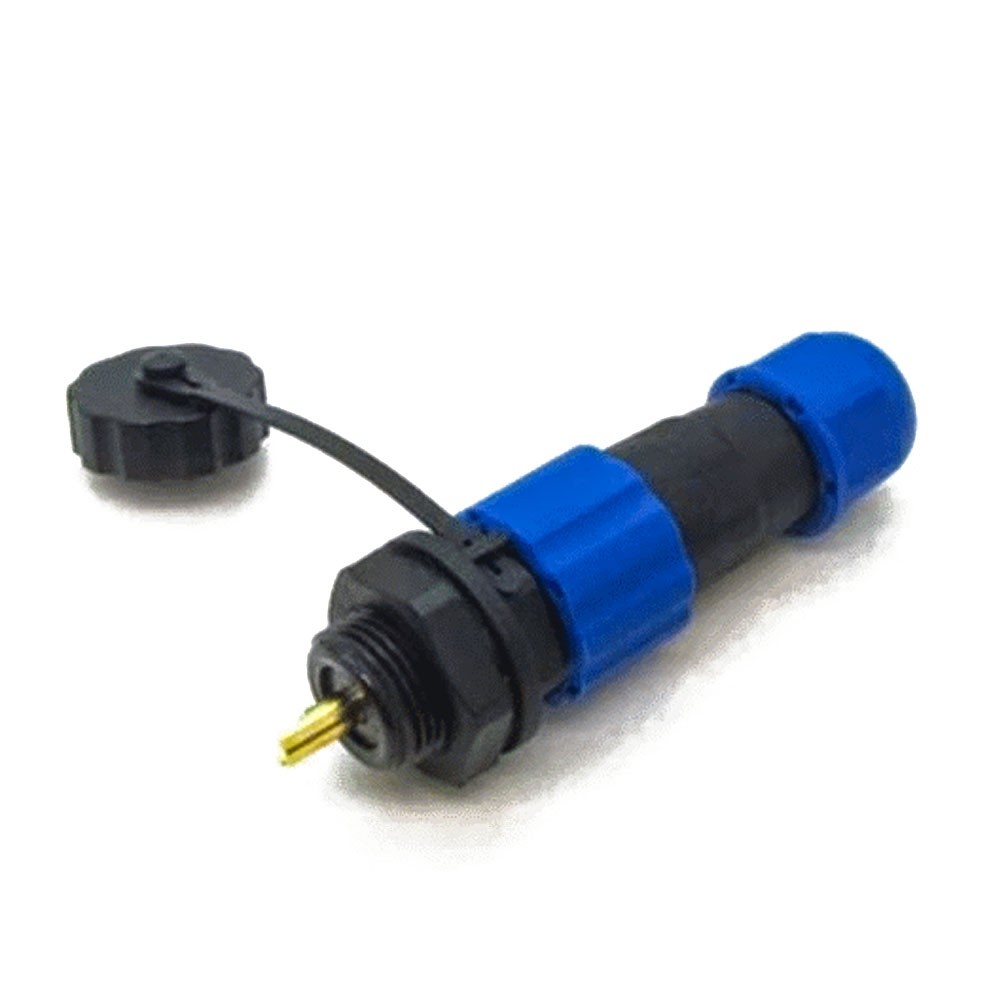

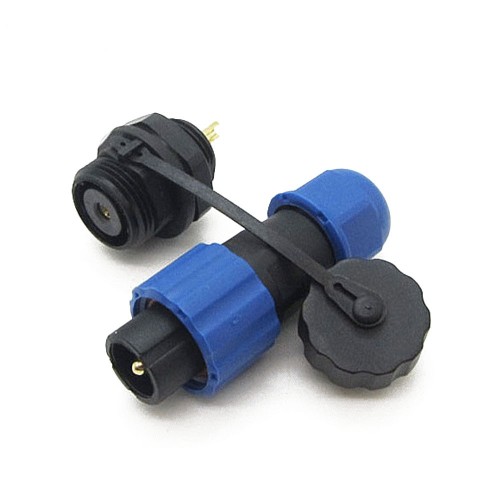

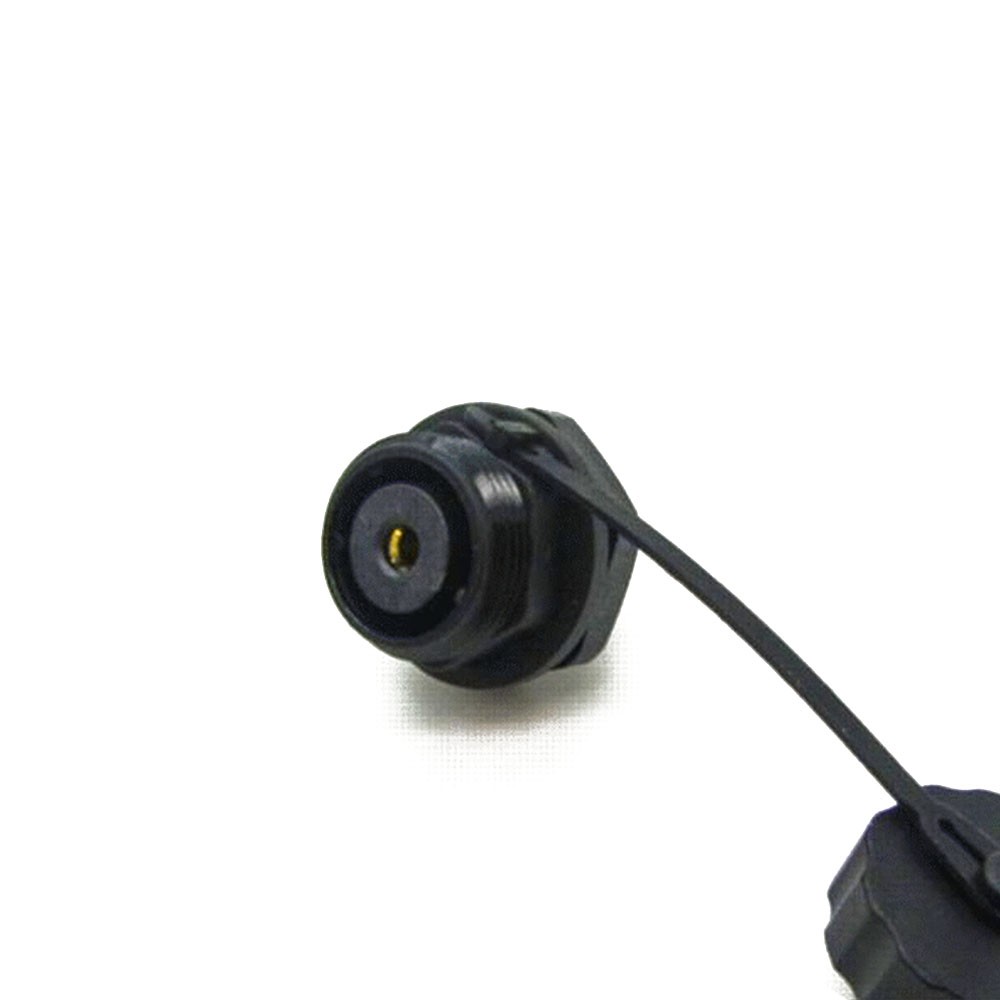

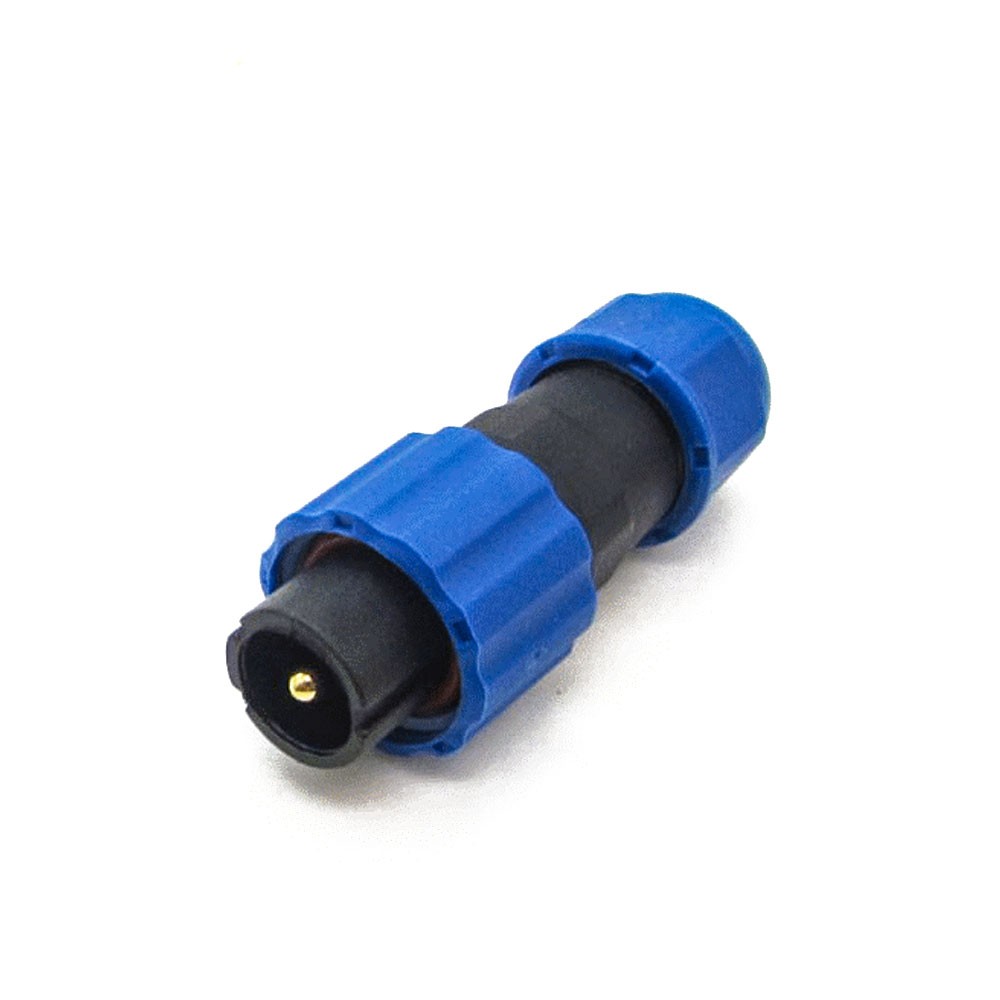

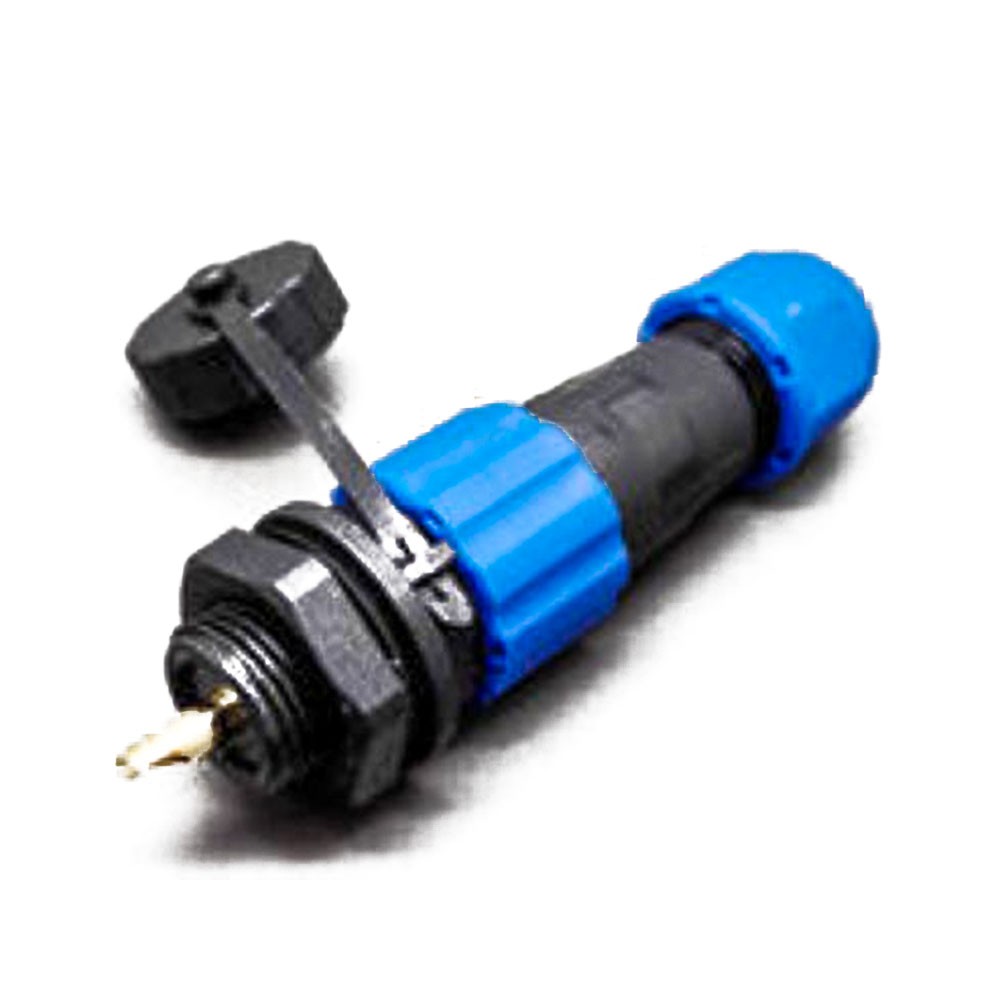

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector
Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Features:

  • SP13 Series ,straight,male Plug,female socket,in line type,Solder Contact,1pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
- Write a review
from
$2.71
Ex Tax: $2.71
10 or more $2.49
30 or more $2.30
50 or more $2.17
100 or more $2.03
200 or more $1.84
  • Stock: In Stock
  • Model: JE00011027
  • Weight: 9.00g
  • SKU: JE00011027
Products Sold: 0
Product Views: 10
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Bulkhead/Solder Type
Connector Type one pair (Plug and Socket)
Gender Male and Female (one Pair)
Number of Positions 1 pin
Direction Straight
Installation method Panel Mount
  • Description

Electrical Characteristics

  • Insulation resistance: 2000MΩ
  • Contact Resistance: 2MΩ/5MΩ/10MΩ
  • Rated Voltage: 250V/ 200V/ 180V/ 125V
  • Rated Current: 13A/5A/3A

Mechanical Characteristics

  • Mating Type: Thread coupling
  • Termination : Solder / Screw
  • Durability(mating): 500 cycles

Environmental Characteristics

  • Temprature Range:  -40°C ~ +85°C
  • IP Rating: IP68

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

Elecbee connector sp13 male plug & female socket IP68 1 pin in line type connector

  • Reviews

There are no reviews for this product.

Write a review
