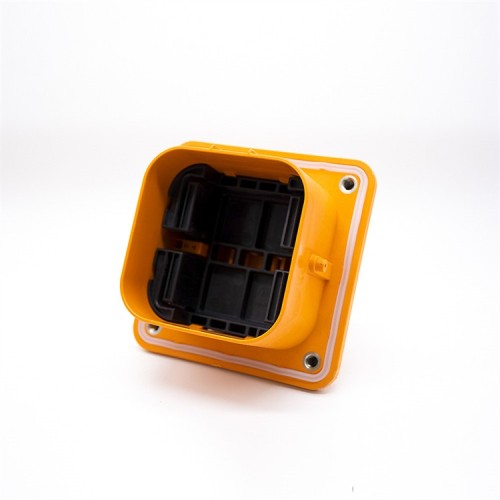

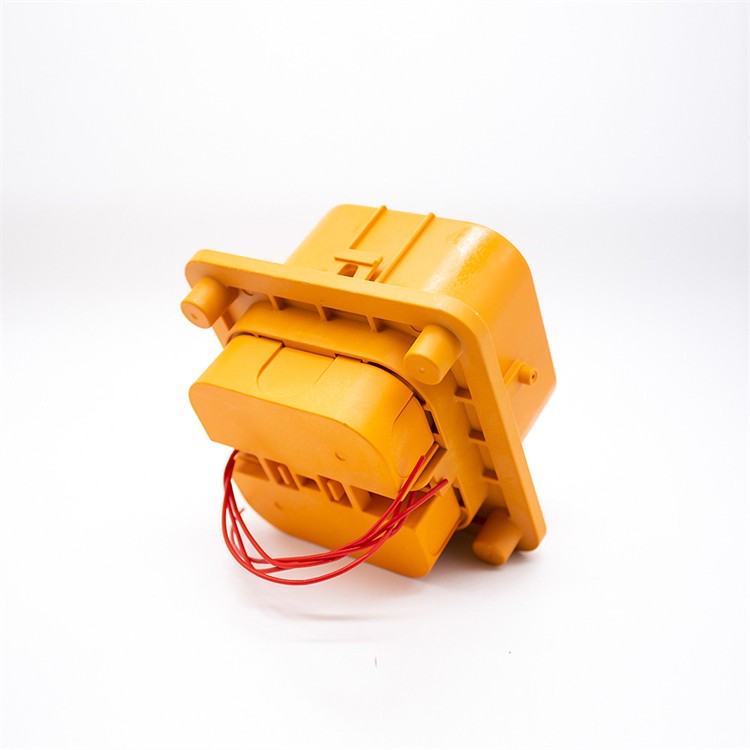

2 Pins MSD Connector Manual Service Disconnect Socket Rear Mount 630A IP67
from
$38.46
Ex Tax: $38.46
- Stock: In Stock
- Model: JE00010199
- Weight: 20.00g
- SKU: JE00010199
Products Sold: 0
Product Views: 7
Ask a Question About This Product
- Description
The manual maintenance protection switch is a manual maintenance protection switch with high-voltage interlock function for high-voltage boxes or battery boxes of electric vehicles.It is mainly used to protect and control the internal main circuit of electric vehicles to prevent excessive current. In case of disconnecting the main circuit current.
Manual Service Disconnect Transfer Switch （MSD Connector）Feature| Material | |
| Copper Bar And Female Terminal: | Red Copper, Copper Alloy , Silver Plated |
| Shell And Insulator: | PA66 |
| Sealing Body: | Silicone Rubber |
| Electrical Performance | |
| Rated Voltage: | 690VDC / 700VDC |
| Fuse Rated Voltage: | 200A~630A |
| Insulation Resistance: | ≥2500MΩ |
| Withstand Voltage: | 3500VAC |
| Mechanical Performance | |
| Mating Cycles: | ≥100 Times |
| Flame Retardant Rating: | UL94V0 |
| Environmental Performance | |
| Operating Temperature: | 40°C ~ + 85°C |
| IP Class: | IP67 , IP6K9K(Connection Status) |
| Application | |
| PDU | Battery |
| Motor | Motor Controller |
