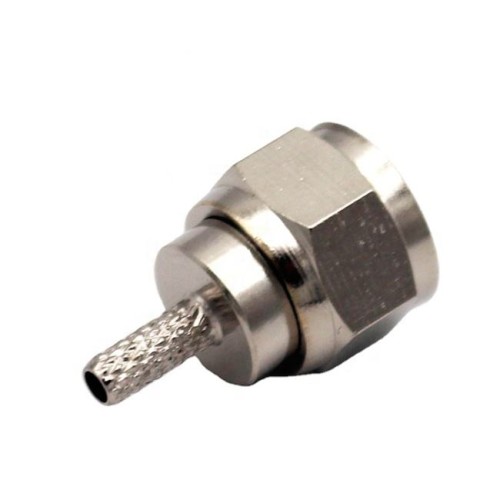

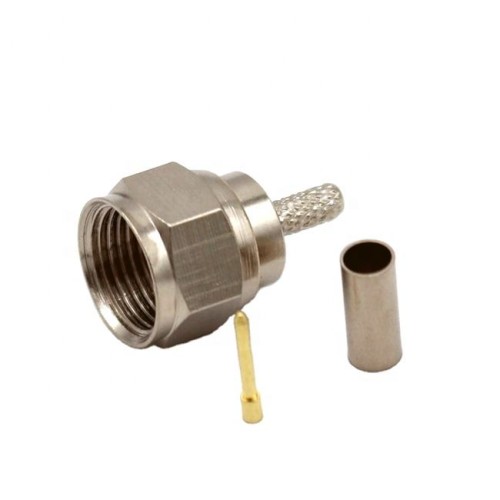

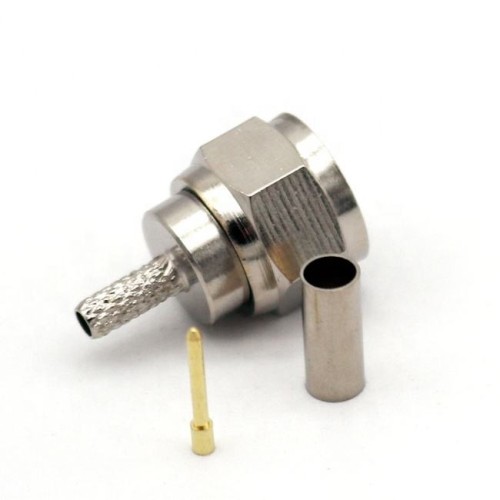

F Type Male Connector RF Coaxial Connector Cable TV Plug Crimp for RG179/RG316/RG174

  • Connector,Straight/180°, 75Ω;
  • Great security and tamper protection performance with screw on structure;
  • Simple structure and component to produce F connectors in very competitive price;
  • Less than 30 seconds required for wiring make it really easy to install;
  • Can be visually inspect even after connection;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of F Connectors:

  • Consumer Electronic: Statellite Boxes, set top boxes
  • Telecommunications: CATV, CATV Networks

from
$1.38
Ex Tax: $1.38
10 or more $1.27
30 or more $1.17
50 or more $1.10
100 or more $1.04
200 or more $0.97
  • Stock: In Stock
  • Model: JE00000898
  • SKU: JE00000898
Products Sold: 0
Product Views: 10
  • Specifications
attribute-list
Body Material Cooper
Gender Male
Wiring Type Press-fit
Direction Straight
Installation method Cable
  • Description
F Type Male Connector RF Coaxial Connector Cable TV Plug Crimp for RG179/RG316/RG174

Electrical Characteristics

  • Impedance:75 ohm
  • Frequency Range: 0~3Ghz
  • VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
  • Withstanding Voltage: 500 V rms
  • Working Voltage: 170 V rms
  • Center Contact Resistance ≦ 10 mΩ
  • Outer Contact Resistance ≦ 5 mΩ
  • Insultation Resistance ≧ 1000 mΩ
  • RF Leakage -100dB min @1GHz

Mechanical Characteristics

  • Coupling: 3/8-32 thread
  • Cable Retention: 20 lbs min.
  • Durability(mating) ≧ 500 cycles

Environmental Characteristics

  • Temprature Range: -40°C ~ +60°C
