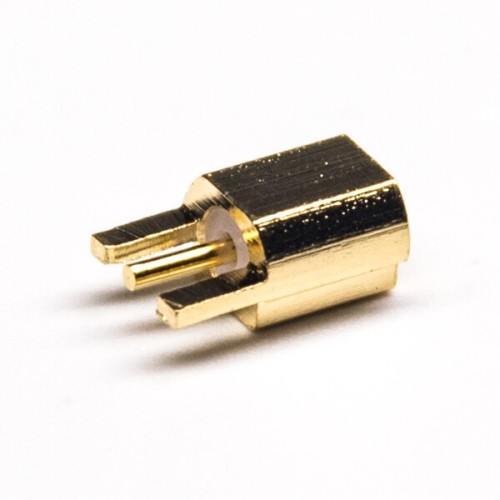

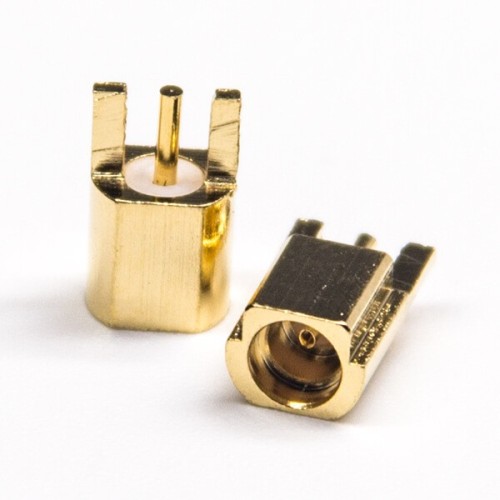

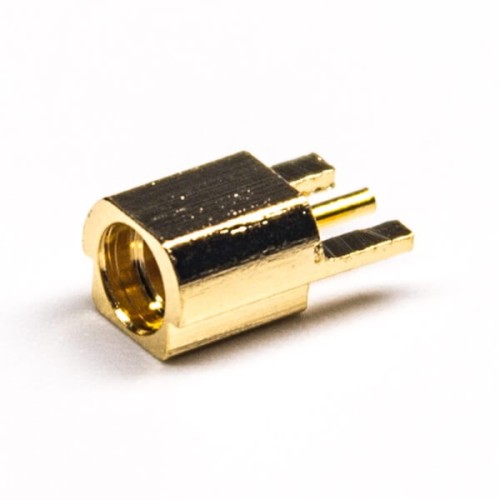

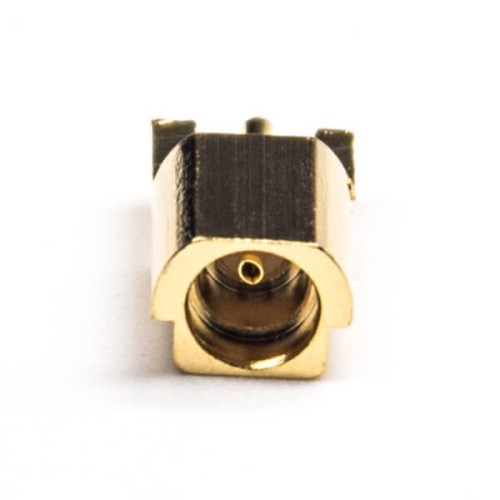

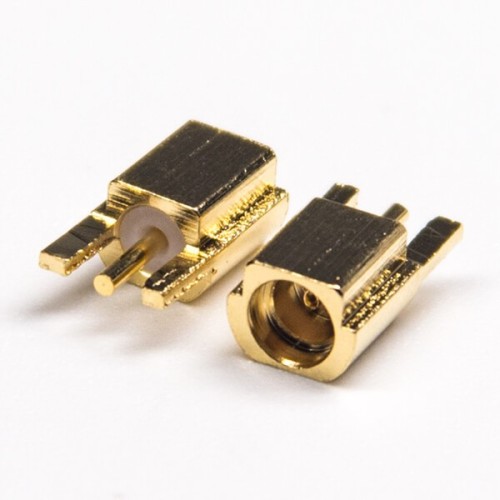

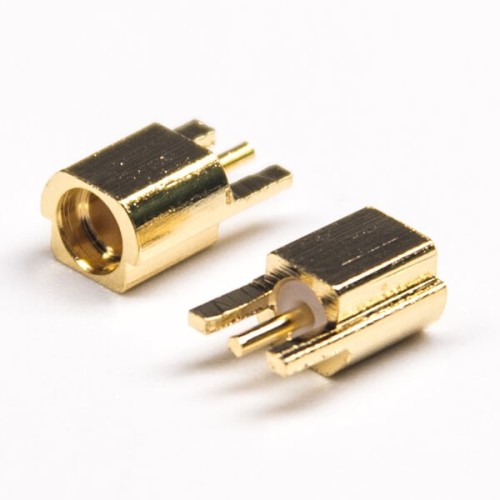

Female MMCX Connector Offset Type 180 Degree for PCB Mount
from
$1.80
Ex Tax: $1.80
10 or more $1.66
30 or more $1.53
50 or more $1.44
100 or more $1.35
200 or more $1.26
- Stock: In Stock
- Model: JE00002661
- Weight: 0.39g
- SKU: JE00002661
Products Sold: 0
Product Views: 14
Ask a Question About This Product
- Description
Main Application of MCX Connectors:
- Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
- Aerospace and Defense: GPS and Hand-held Device
- Technology: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0~6 Ghz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: 335 V rms
- Center Contact Resistance ≦ 5.0 mΩ (Milliohms max.)
- Outer Contact Resistance 1.0 mΩ (Milliohms max.)
- Insultation Resistance ≧ 1000 mΩ
Mechanical Characteristics
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: Teflon -65°C ~ +155°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Gold Plated |
| Center Contact Pin | Be-Cu | Gold Plated |
| Insulator | PTFE | ------ |
