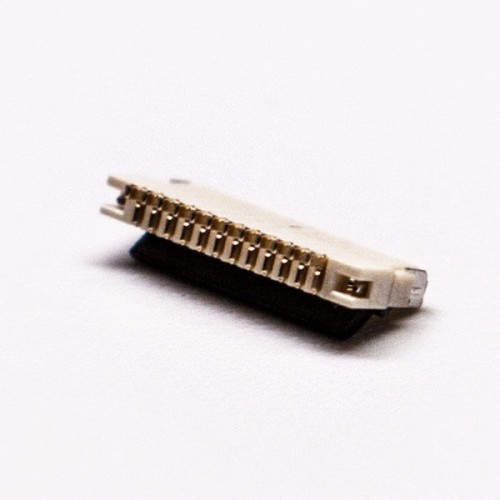

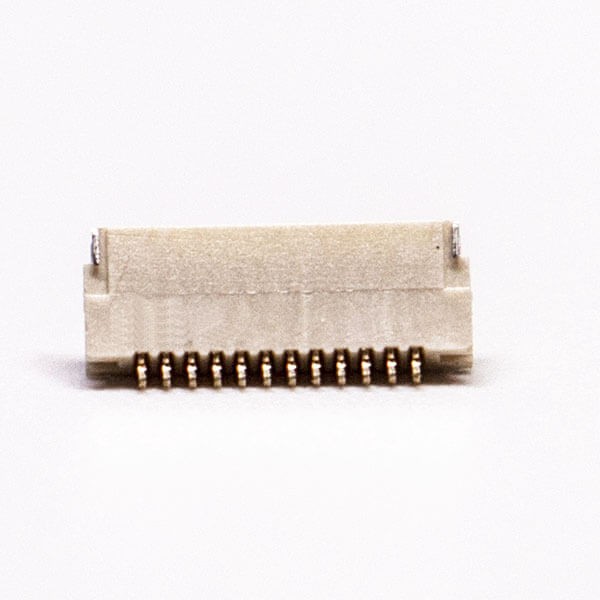

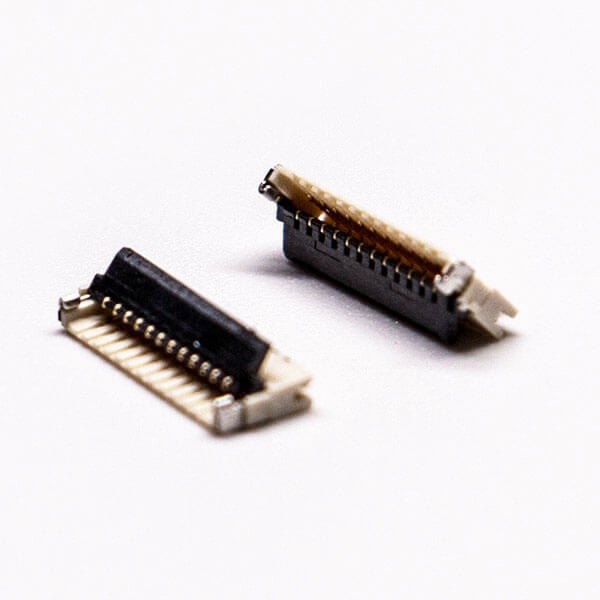

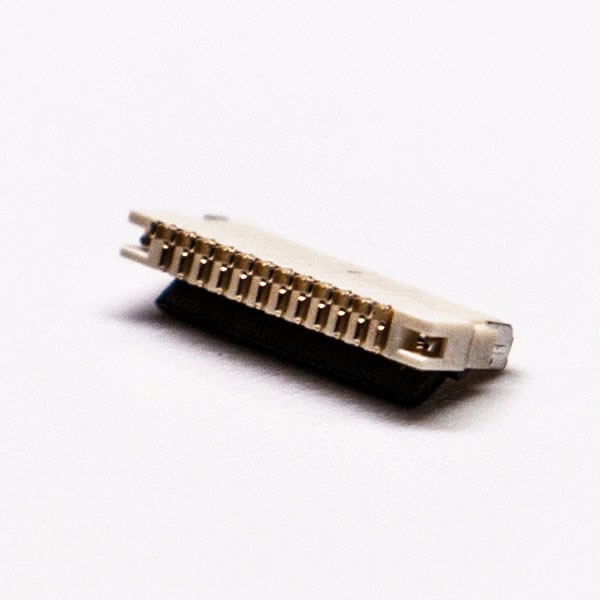

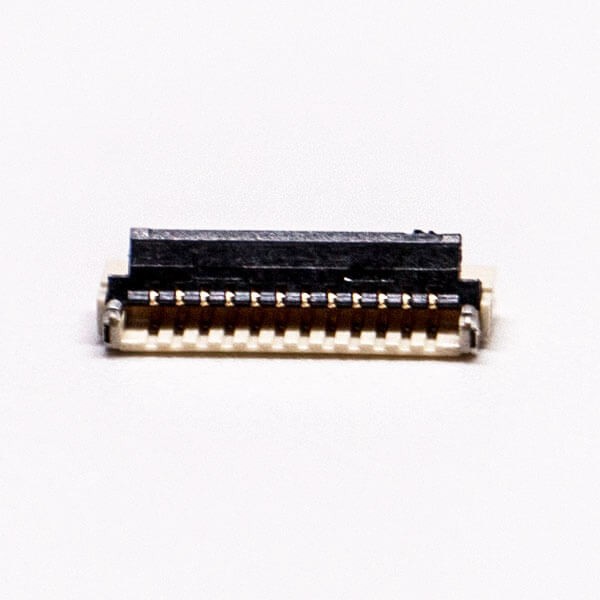

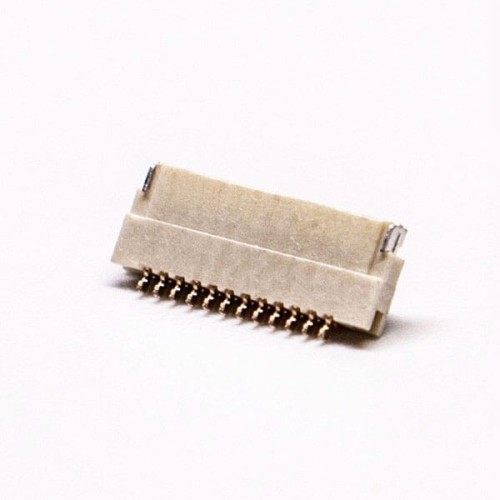

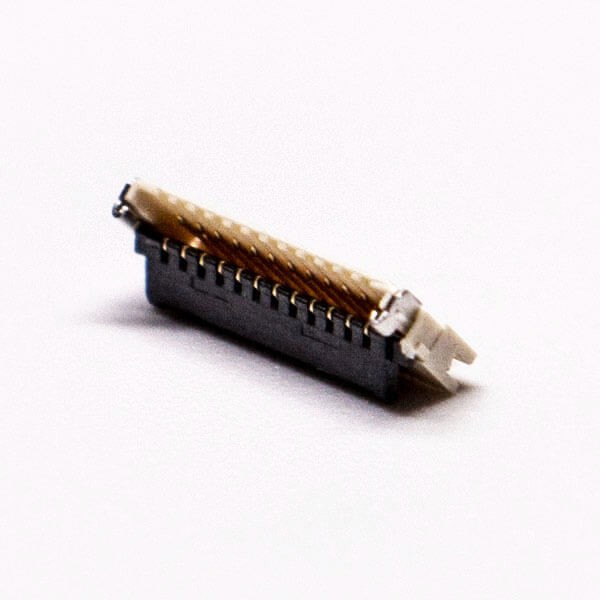

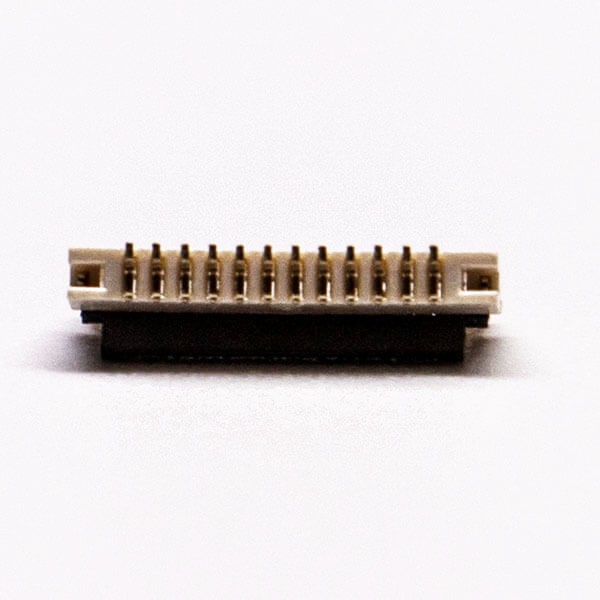

FFC FPC Connector 0.5 MM Front Flip and Bottom Contact Style 1.0H FOR PCB
from
$1.16
Ex Tax: $1.16
10 or more $1.07
30 or more $0.99
50 or more $0.93
100 or more $0.87
200 or more $0.81
- Stock: In Stock
- Model: JE00009441
- Weight: 0.10g
- SKU: JE00009441
Products Sold: 0
Product Views: 3
Ask a Question About This Product
- Description
Applications:
- Automobile Infotainment: Display Audio, Car Navigation
- Consumer: Flat Panel TV, Portable Game, Personal Navigation Equipment
- Datacommunications: Optical Disk Drives, Tablet and Notebook PCs, Printers and Copiers
Electrical Characteristics
- Voltage (max.): 50V
- Current (max.): 0.5A
- Contact Resistance: 40 milliohms max.
- Insulation Resistance: 50 Megohm min.
- Halogen Free: Low Halogen
Mechanical Characteristics
- Durability (min.): 25 cycles
Environmental Characteristics
- Operating Temperature: -40°C~ + 125°C
Material:
| Part | Material | Finish |
| Housing | LCP UL94V-0 | Beige |
| Cover | PA6T UL94V-0 | Black |
| Contact | Phosphor Bronze | Au/Ni |
