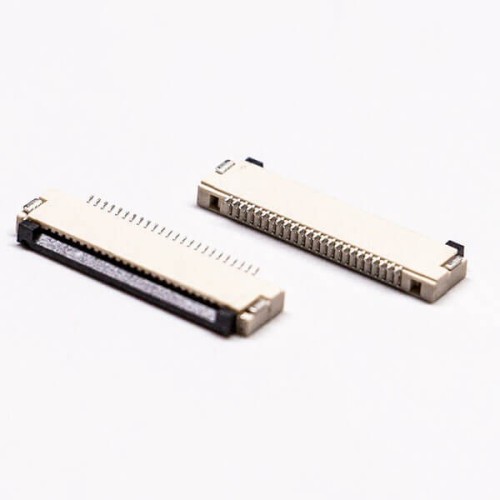

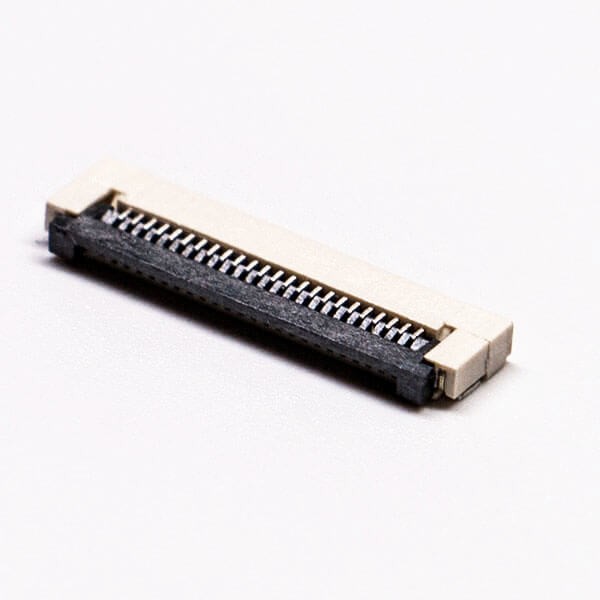

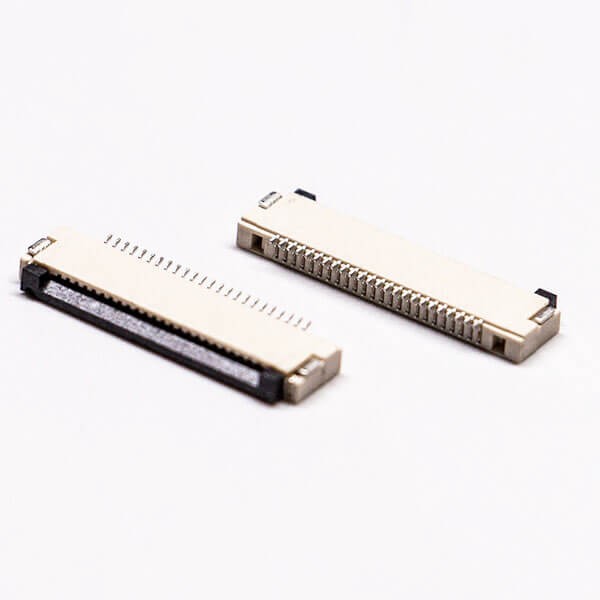

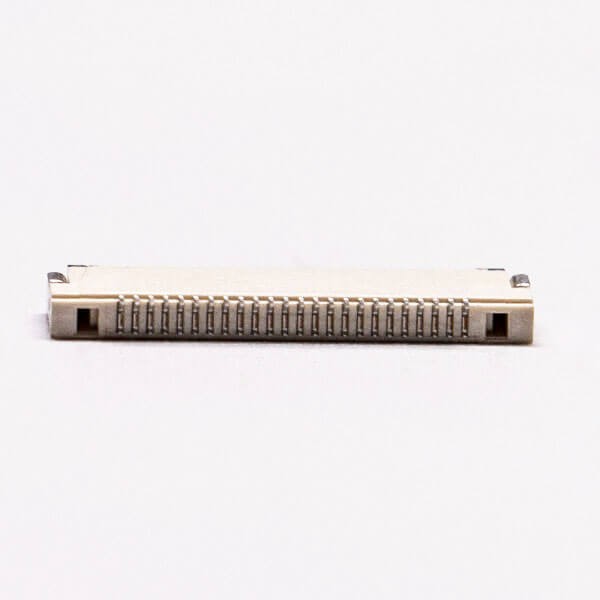

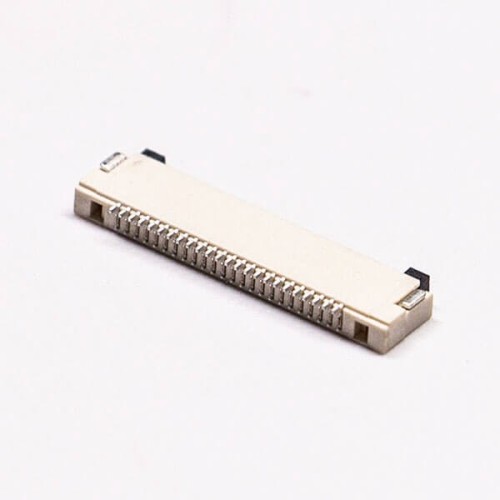

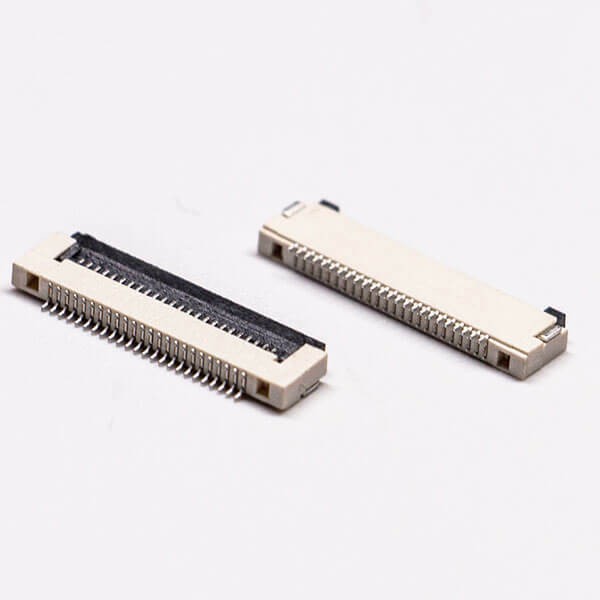

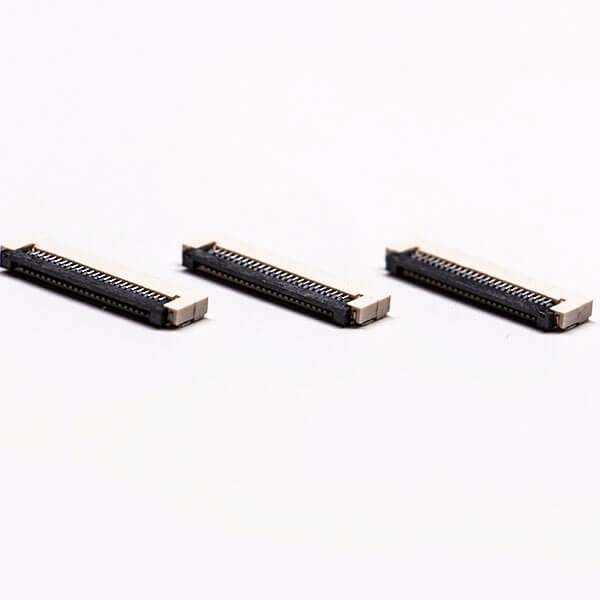

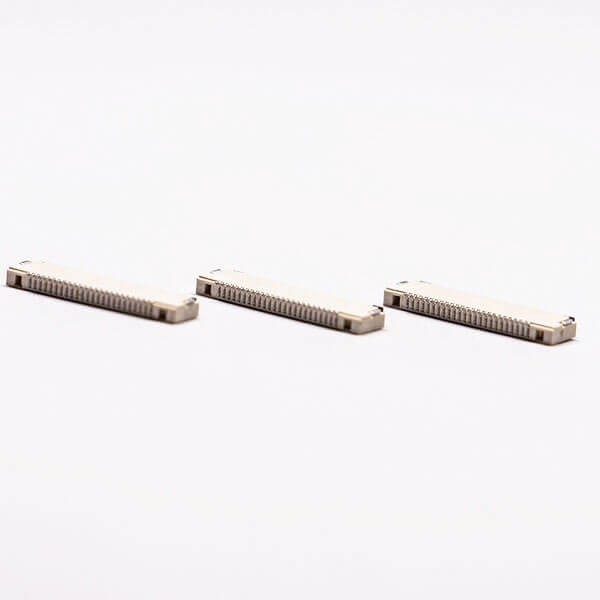

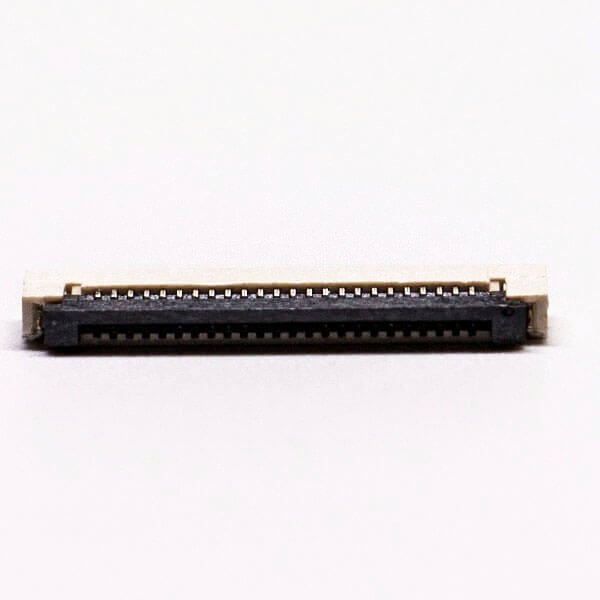

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock
FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

Features:

  • FFC/FPC Connector,PCB Mount,0.5 Pitch,24PIN,Horizontal Type,Dual Contact,2.0H,without Lock;
  • offer the best combination of signal;
  • Superior contact reliability, compactness, wide circuit size range;
  • Narrower width and shorter length dimensions, provide additional space savings;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.21
Ex Tax: $1.21
  • Stock: In Stock
  • Model: JE00009437
  • Weight: 0.20g
  • SKU: JE00009437
Products Sold: 0
Product Views: 3
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation method PCB Mount
  • Description

Applications:

  • Automobile Infotainment: Display Audio, Car Navigation
  • Consumer: Flat Panel TV, Portable Game, Personal Navigation Equipment
  • Datacommunications: Optical Disk Drives, Tablet and Notebook PCs, Printers and Copiers

Electrical Characteristics

  • Voltage (max.): 50V
  • Current (max.): 0.5A
  • Contact Resistance: 40 milliohms max.
  • Insulation Resistance: 50 Megohm min.
  • Halogen Free: Low Halogen

Mechanical Characteristics

  • Durability (min.): 25 cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 125°C

Material:

PartMaterialFinish
HousingLCP UL94V-0Beige
Cover PA6T UL94V-0Black
ContactPhosphor BronzeAu/Ni

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

FFC FPC Socket 0.5mm Horizontal Type and Dual Contact Style without Lock

  • Reviews

There are no reviews for this product.
