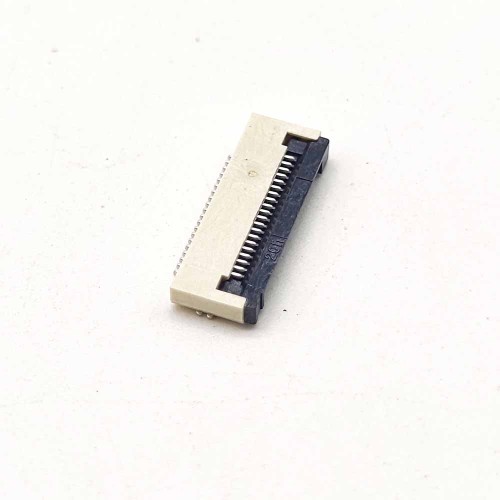

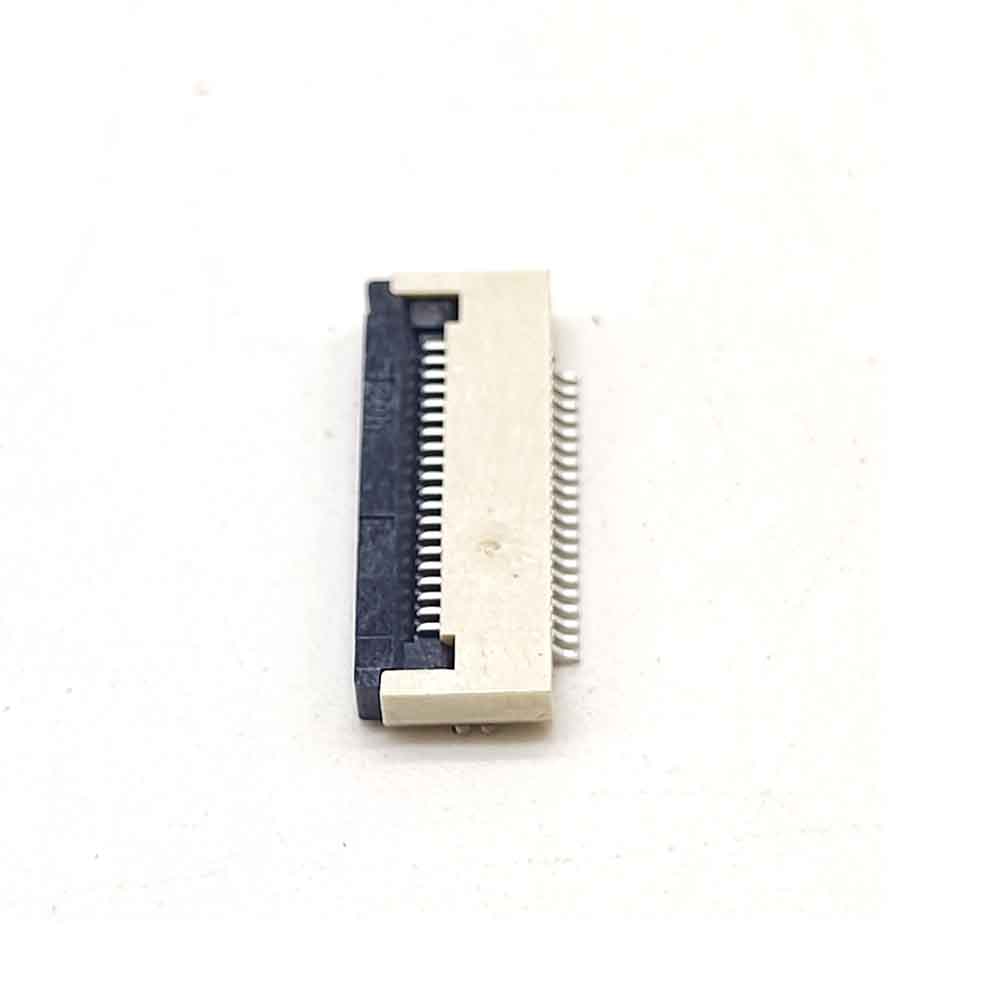

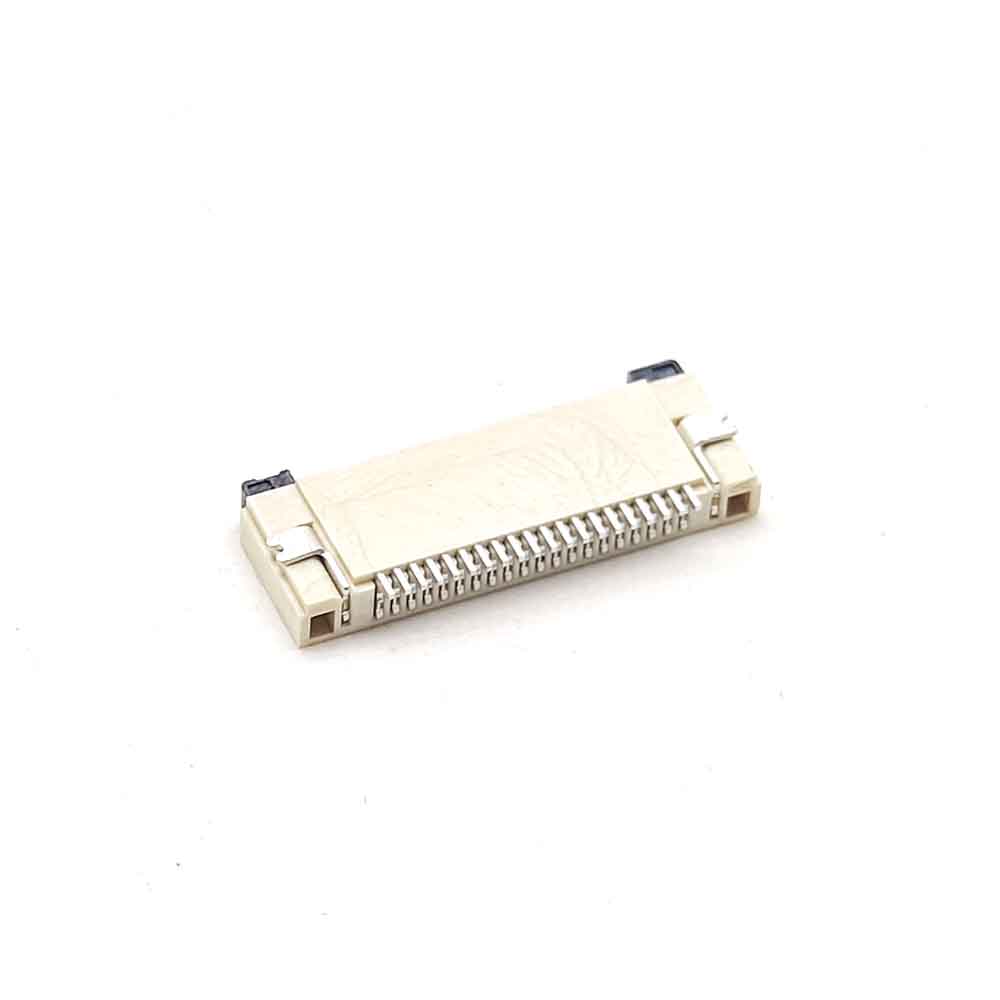

FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H

FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H

Features:

  • FFC/FPC Connector,Socket,0.5 Pitch,20 PIN,Bottom Contact,Straight/180°,Front Flip,2.0H;
  • offer the best combination of signal;
  • Superior contact reliability, compactness, wide circuit size range;
  • Narrower width and shorter length dimensions, provide additional space savings;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.15
Ex Tax: $1.15
  • Stock: In Stock
  • Model: JE00009433
  • Weight: 0.30g
  • SKU: JE00009433
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation method PCB Mount
  • Description

Applications:

  • Automobile Infotainment: Display Audio, Car Navigation
  • Consumer: Flat Panel TV, Portable Game, Personal Navigation Equipment
  • Datacommunications: Optical Disk Drives, Tablet and Notebook PCs, Printers and Copiers

Electrical Characteristics

  • Voltage (max.): 50V
  • Current (max.): 0.5A
  • Contact Resistance: 40 milliohms max.
  • Insulation Resistance: 50 Megohm min.
  • Halogen Free: Low Halogen

Mechanical Characteristics

  • Durability (min.): 25 cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 125°C

Material:

Part Material Finish
Housing LCP UL94V-0 Beige
Cover  PA6T UL94V-0 Black
Contact Phosphor Bronze Au/Ni

FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H

FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H

FPC Connectors 0.5MM Pitch 20 Pin Front Flip Bottom Contact Style 2.0H
