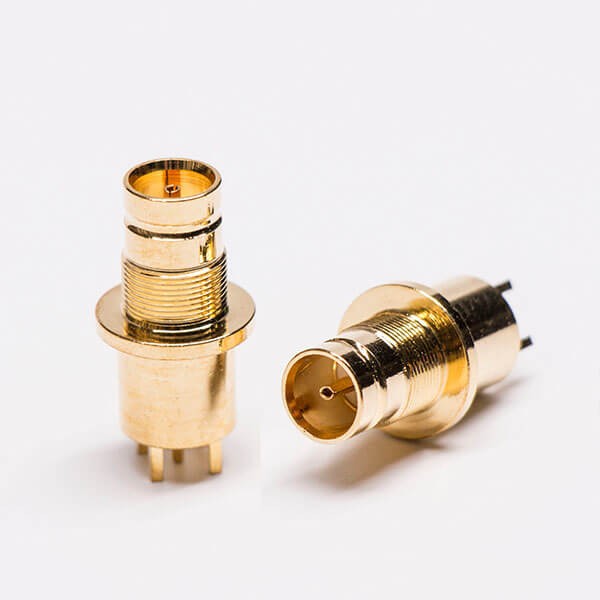

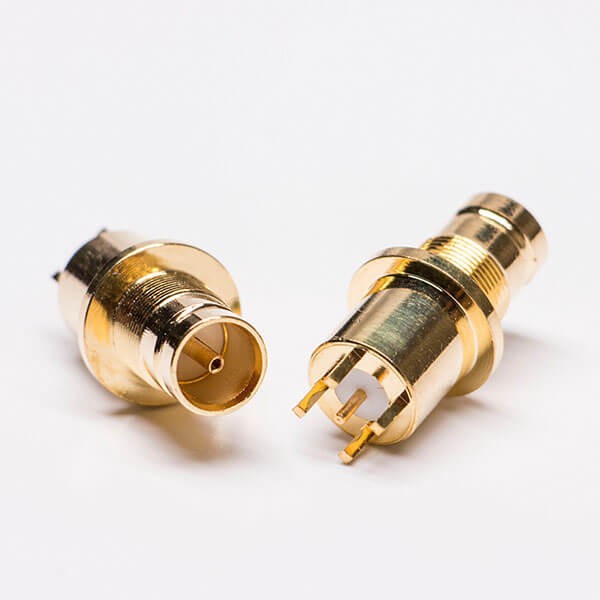

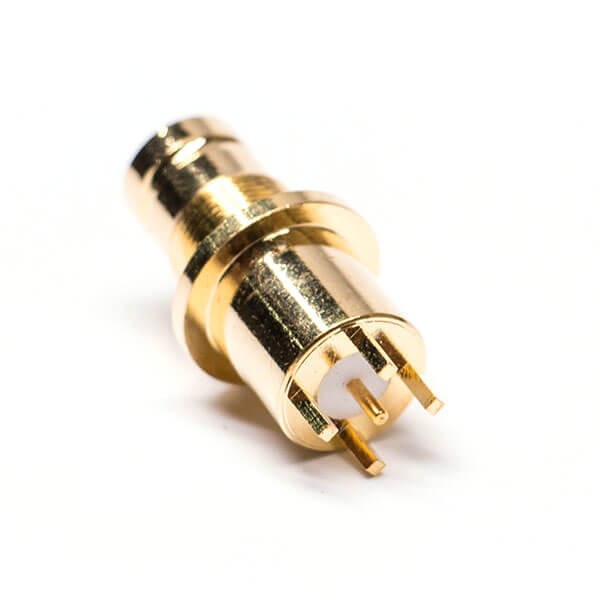

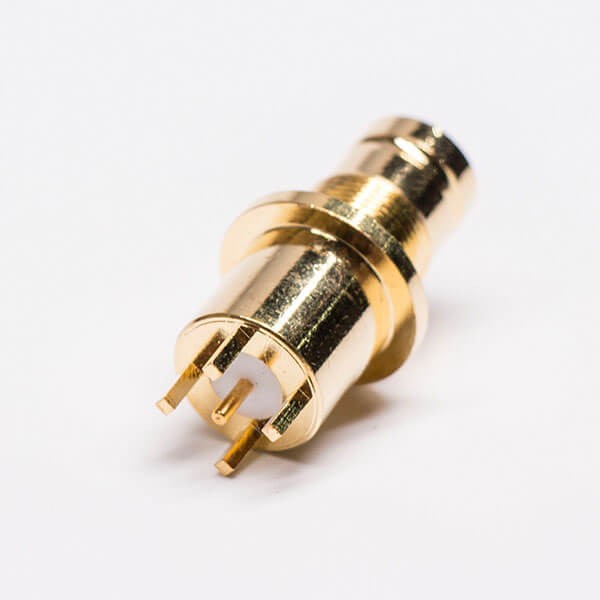

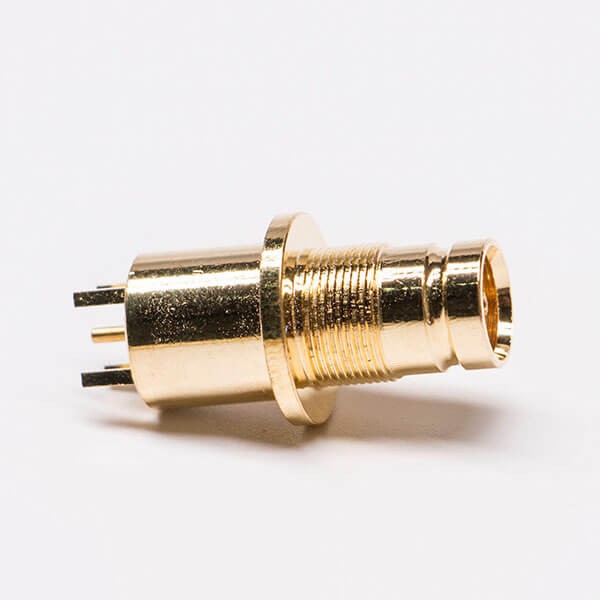

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
Gold plated 1.6/5.6 connector Jack for PCB mount Type
  • Cable Connector, plug/male, Angled/90°,,DIN1.6/5.6, Crimp Type;
  • Miniature design only requried limited space for installation;
  • Threaded coupling version ensure safty and high durability;
  • Good performance at 75Ω impendance and up to 1GHz frequency.
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Main Application of DIN1.6/5.6 Connectors:

  • Antenna, Base Stations, Routers, Wireless application, Switching Equipment, Computers/LAN and Telecom
- Write a review
from
$3.70
Ex Tax: $3.70
10 or more $3.40
30 or more $3.15
50 or more $2.96
100 or more $2.78
  • Stock: In Stock
  • Model: JE00002775
  • Weight: 8.10g
  • SKU: JE00002775
Products Sold: 0
Product Views: 29
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics Through Hole
Gender Female
Function Other
Direction Straight
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method PCB Mount
Outer conductor connection Without
  • Description

Electrical Characteristics

  • Impedance：75 ohm
  • Frequency Range: 0~6 GHz
  • VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
  • Dielectric Withstanding Voltage: 1000 V rms
  • Working Voltage: 335 V rms
  • Center Contact Resistance: ≦ 3mW
  • Outer Contact Resistance :≦25mW
  • Insultation Resistance ≧ 10⁴ mΩ

Mechanical Characteristics

  • Coupling: M9 x 0.5 Thread
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

  • Environmental Characteristics: -65°C ~ +165°C

Material:

PartMaterialFinish
BodyBrassgold
Center Contact PinBeCugold
InsulatorPomnone

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type

Gold plated 1.6/5.6 connector Jack for PCB mount Type
