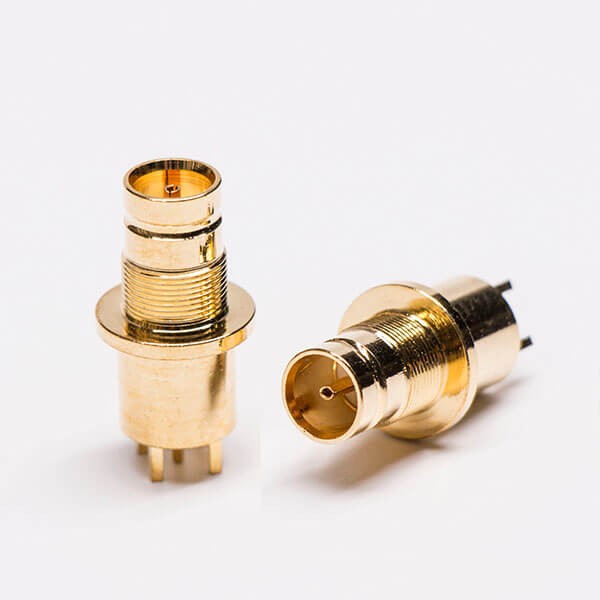

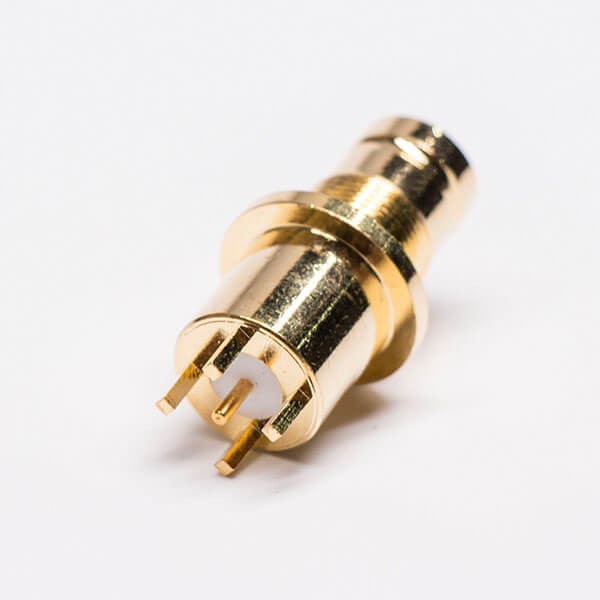

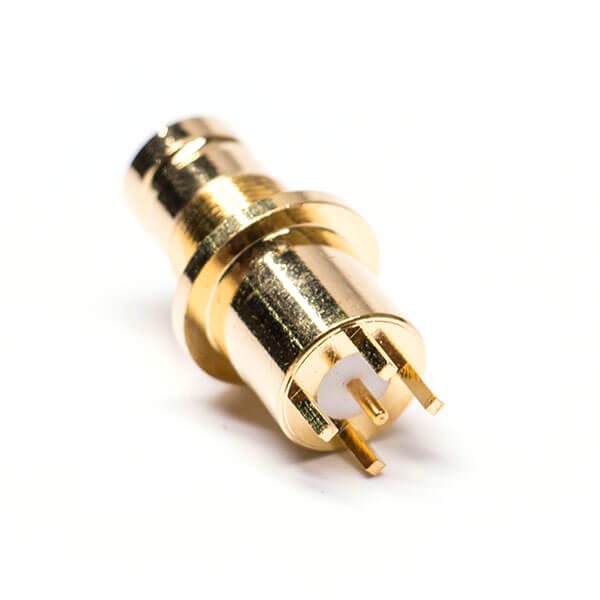

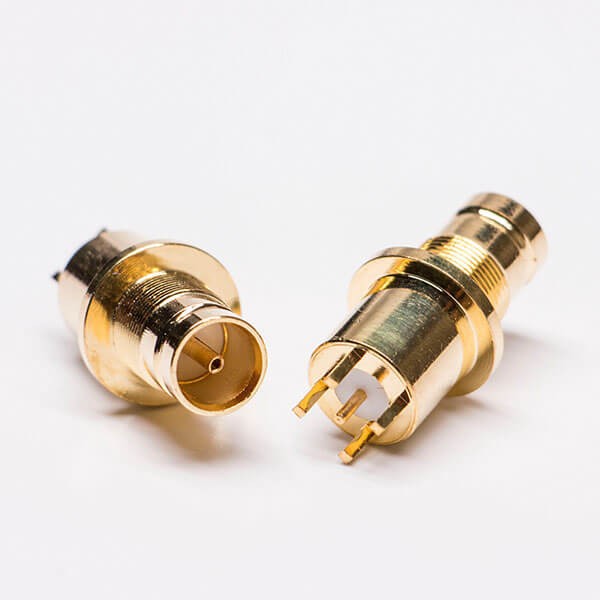

Gold plated 1.6/5.6 connector Jack for PCB mount Type
- Cable Connector, plug/male, Angled/90°,,DIN1.6/5.6, Crimp Type;
- Miniature design only requried limited space for installation;
- Threaded coupling version ensure safty and high durability;
- Good performance at 75Ω impendance and up to 1GHz frequency.
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Main Application of DIN1.6/5.6 Connectors:
- Antenna, Base Stations, Routers, Wireless application, Switching Equipment, Computers/LAN and Telecom
from
$3.70
Ex Tax: $3.70
10 or more $3.40
30 or more $3.15
50 or more $2.96
100 or more $2.78
- Stock: In Stock
- Model: JE00002775
- Weight: 8.10g
- SKU: JE00002775
Products Sold: 0
Product Views: 6
Ask a Question About This Product
- Specifications
attribute-list | |
Body Material | Cooper |
Terminal type | Solder Type |
Installation characteristics | Through Hole |
Gender | Female |
Function | Other |
Direction | Straight |
Polarity | Standard |
Coating | Gold Plating |
Impedance | 50 Ω |
Installation method | PCB Mount |
Outer conductor connection | Without |
- Description
Electrical Characteristics
- Impedance:75 ohm
- Frequency Range: 0~6 GHz
- VSWR: Straight type ≦ 1.3max / R/A type ≦ 1.5max
- Dielectric Withstanding Voltage: 1000 V rms
- Working Voltage: 335 V rms
- Center Contact Resistance: ≦ 3mW
- Outer Contact Resistance :≦25mW
- Insultation Resistance ≧ 10⁴ mΩ
Mechanical Characteristics
- Coupling: M9 x 0.5 Thread
- Contact Retention: 6 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: -65°C ~ +165°C
Material:
Part | Material | Finish |
Body | Brass | gold |
Center Contact Pin | BeCu | gold |
Insulator | Pom | none |
