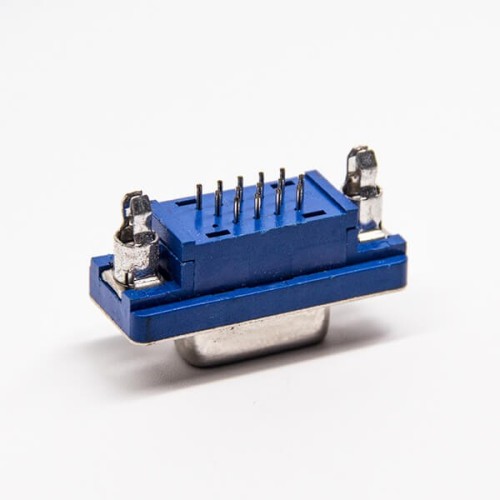

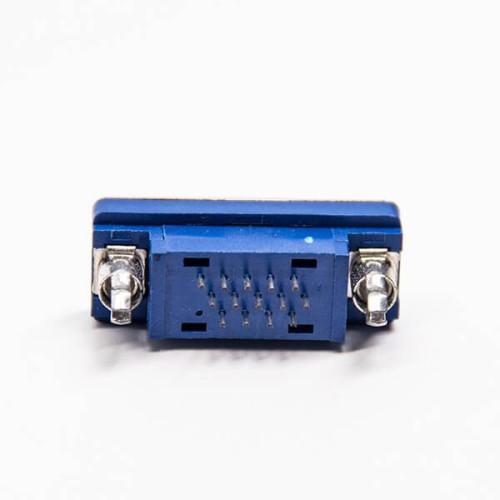

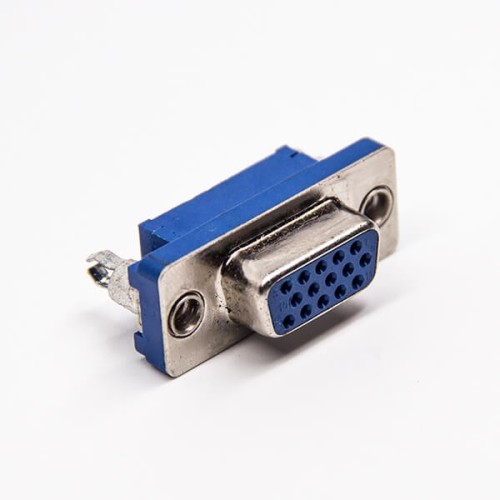

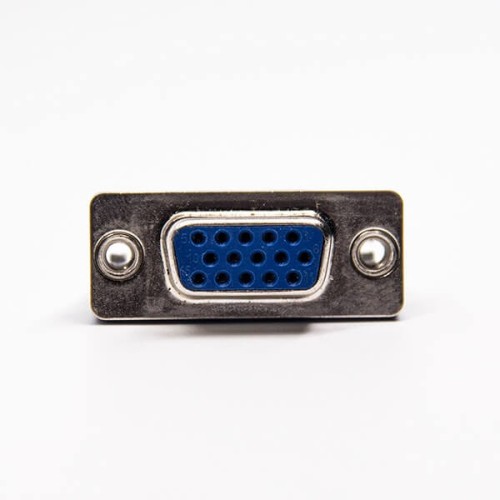

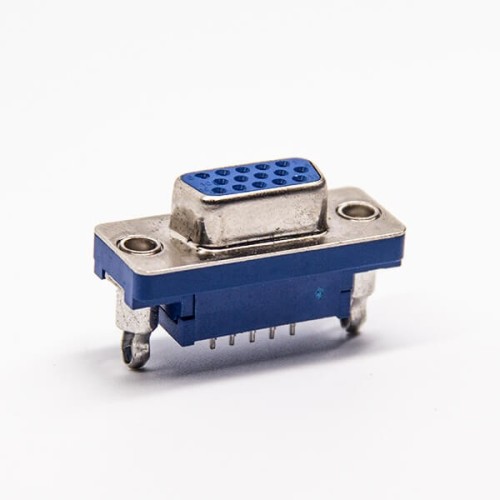

HD D SUB 15 Pin Female 180 Degree Staking Type Through Hole for PCB Mount
from
$1.58
Ex Tax: $1.58
10 or more $1.45
30 or more $1.34
50 or more $1.26
100 or more $1.19
200 or more $1.11
- Stock: In Stock
- Model: JE00004416
- Weight: 6.65g
- SKU: JE00004416
Products Sold: 0
Product Views: 10
Ask a Question About This Product
- Description
Applications:
- data transmission
- Consumer Electronics
- telecommunications
- measurement
- regulation and control devices
- Military Equipment
Electrical Characteristics
- Contact resistance :10 mOhm
- Current rating signal:3 A
- Working voltage:60 V
- Dielectric with standing voltage signal:1000 V
- Insulation resistance: 5000mΩ min
Mechanical Characteristics
- Extraction force:<50 N
- Insertion force：<50 N
- Mating cycles ：50
Environmental Characteristics
- Operating Temperature：-55°C~ + 105°C
Material:
| Part | Material | Finish |
| Body | SPCC steel | Tin |
| Center Contact Pin | Copper alloy | ------ |
| Insulator | Glass Filled Thermoplastic (UL94V-0) | Black/White |
