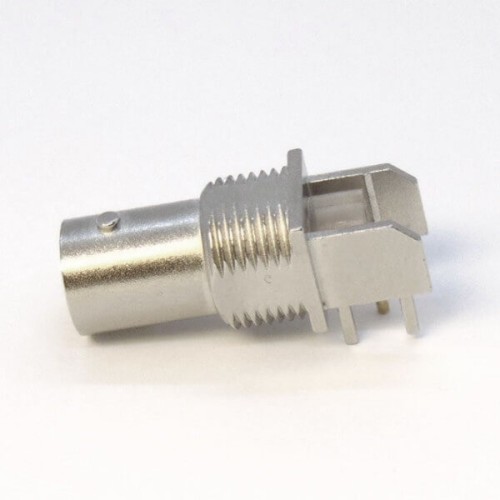

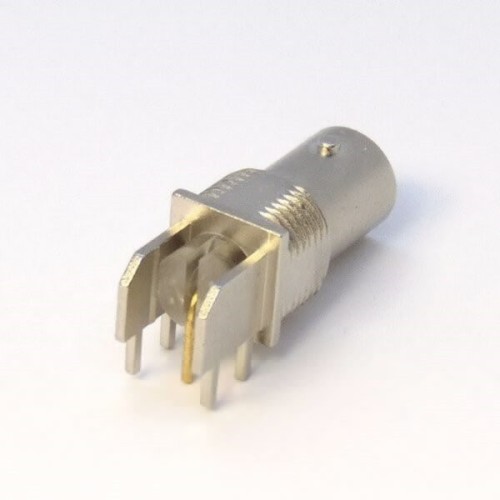

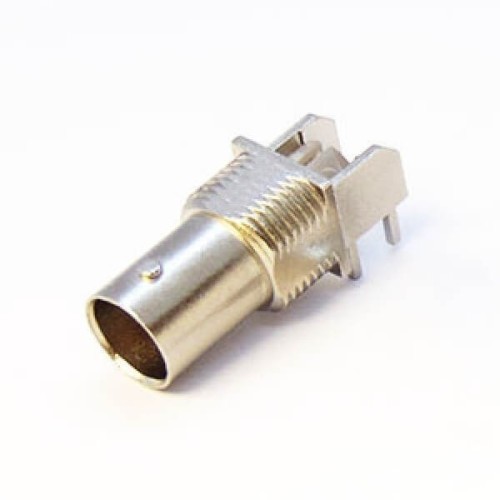

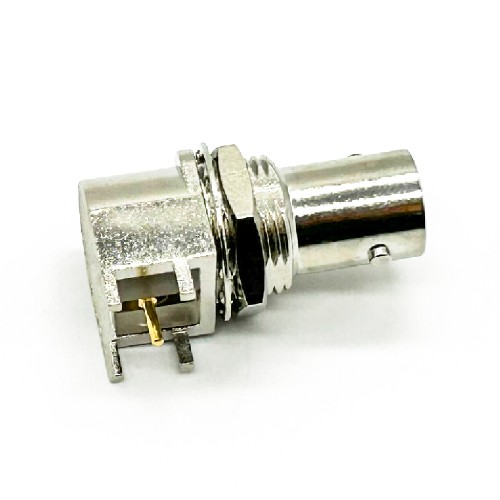

HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating

HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating
HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating

Product features:

  • BNC Connector,Female/Jack, Right Angle/90°,Bulkhead, Through Hole,76Ohm,Nickel Plating
  • Compact Design for less installation space required;
  • Easy quick connect and disconnect coupling;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Technology Equipment, Instrumentation, CCTV, CATV, HDTV, etc.

- Write a review
from
$3.59
Ex Tax: $3.59
10 or more $3.30
30 or more $3.05
50 or more $2.87
100 or more $2.69
  • Stock: In Stock
  • Model: JE00000079
  • SKU: JE00000079
Products Sold: 0
Product Views: 12

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Solder Type
Installation characteristics Bulkhead / Through Hole
Gender Female
Function Other
Direction Right Angle
Polarity Standard
Coating Nickel Plating
Impedance 50Ω/75Ω
Installation method PCB Mount / Panel Mount
Outer conductor connection Without
  • Description


HD SDI BNC Connector Female for PCB Mount 8mm Leg 90 Degree DIP Type Nickel Plating

Electrical Characteristics

  • Impedance：50ohm
  • Frequency Range: 0~1 GHz for 75 ohm
  • VSWR: Straight type ≦ 1.22/3GHz / R/A type ≦ 1.30/3GHz
  • Dielectric Withstanding Voltage: 1500 V rms
  • Working Voltage: 500 V rms
  • Center Contact Resistance ≦ 1.5 mΩ (Milliohms max.)
  • Outer Contact Resistance ≦ 2.0 mΩ (Milliohms max.)
  • Insultation Resistance ≧5 × 103 mΩ (Milliohms min.)

Mechanical Characteristics

  • Coupling: bayonet
  • Contact Retention: 6 lbs min.
  • Mating Durability: ≧500 cycles

Environmental Characteristics

  • Environmental Characteristics: Teflon -55℃~+155℃ / POM -40℃~+60℃
  • Coupling Nut Retention: 100 lbs. min.
  • Vibration: MIL-STD-202 Method 204
  • Corrosion Resistance: MIL-STD-202 Method 101

Material:

Part Material Finish
Body Brass Nickel(Ni)
Center Contact Pin Brass Gold
Insulator Teflon White
