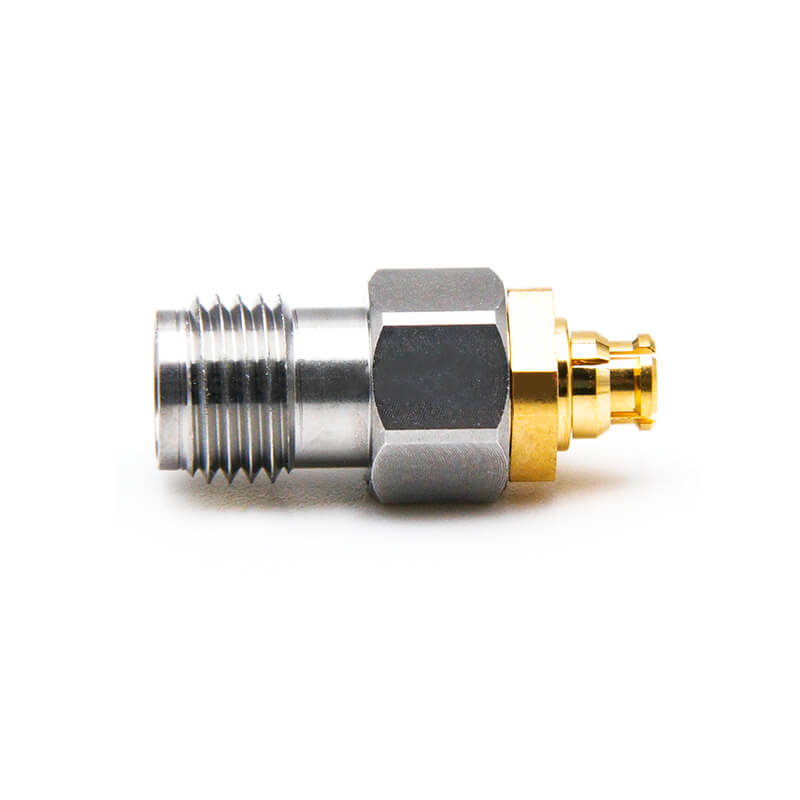

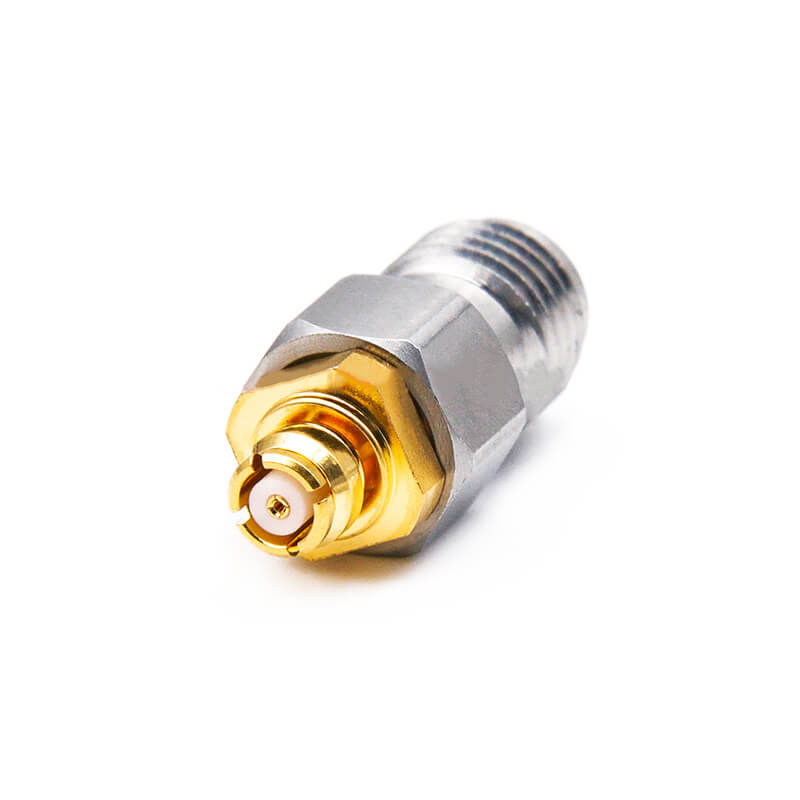

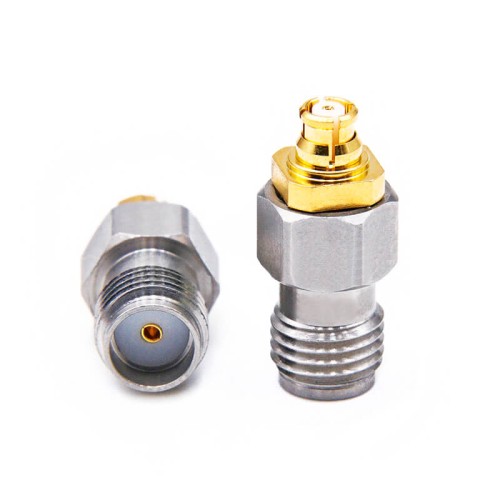

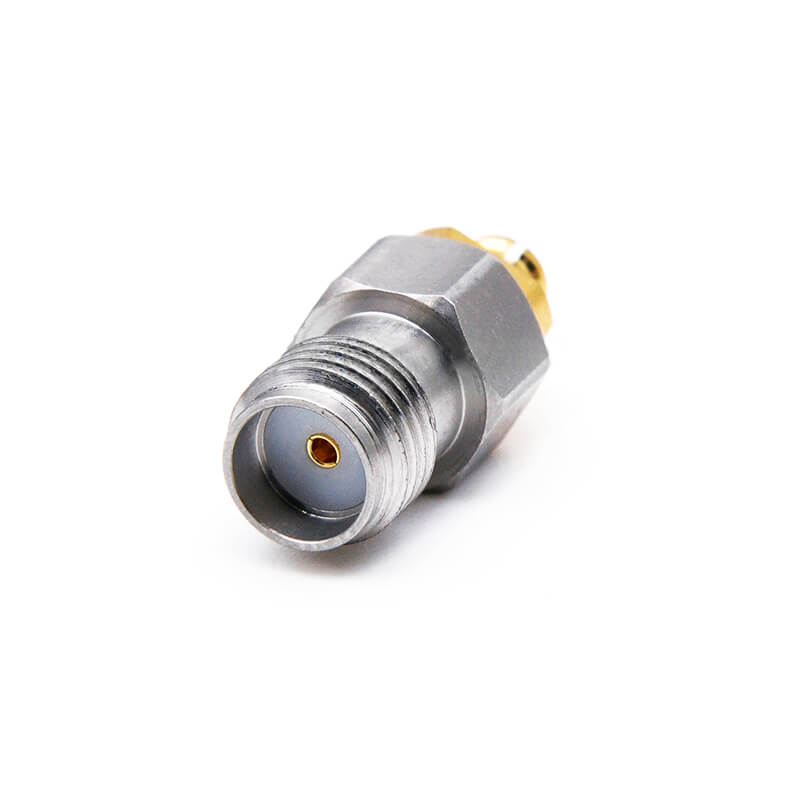

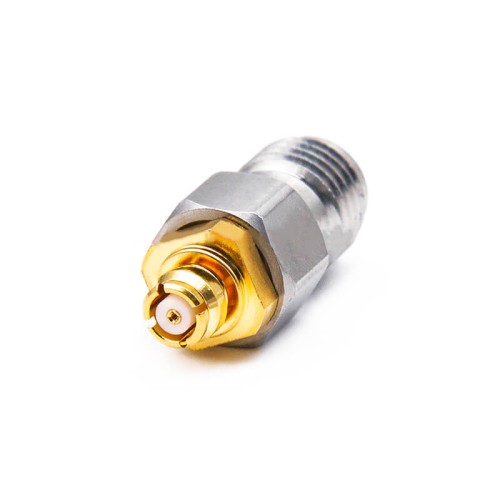

High Frequency 0-18G SMA Female To SMP Female Stainless Steel Rf Coax Connector
from
$34.29
Ex Tax: $34.29
5 or more $32.58
10 or more $30.86
- Stock: In Stock
- Model: JE00013148
- Weight: 0.10kg
- SKU: JE00013148
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Appliance:
- Cellular/Broadband amplifiers
- Radar systems
- High-speed routers and switches
- Microwave filters
- Wireless infrastructures
- Remote sensing and metering
- RFID
- GPS antennas
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range:DC to 26.5 GHz
- Rated Voltage:170V(r.m.s.)
- Insulation Resistance:1000MΩ (min.) at 500V DC
- Contact Resistance:3m Ω（max.)
- Outer C ontact Resistance:2m Ω（max.)
- Shielding Effectiveness:≥ 100 dB
Mechanical Characteristics
- Mating Torque:5 - 7 in - lbs
- Connector Durability：500 mating cycles min
Environmental Characteristics
- Temperature Range：-65°C to +165°C
Material:
| Part | Material | Finish |
| Body | Stainless Steel | Stainless stee |
| Center Contact Pin | Copper Alloy | Au Plating |
| Insulator | PTFE | white |
