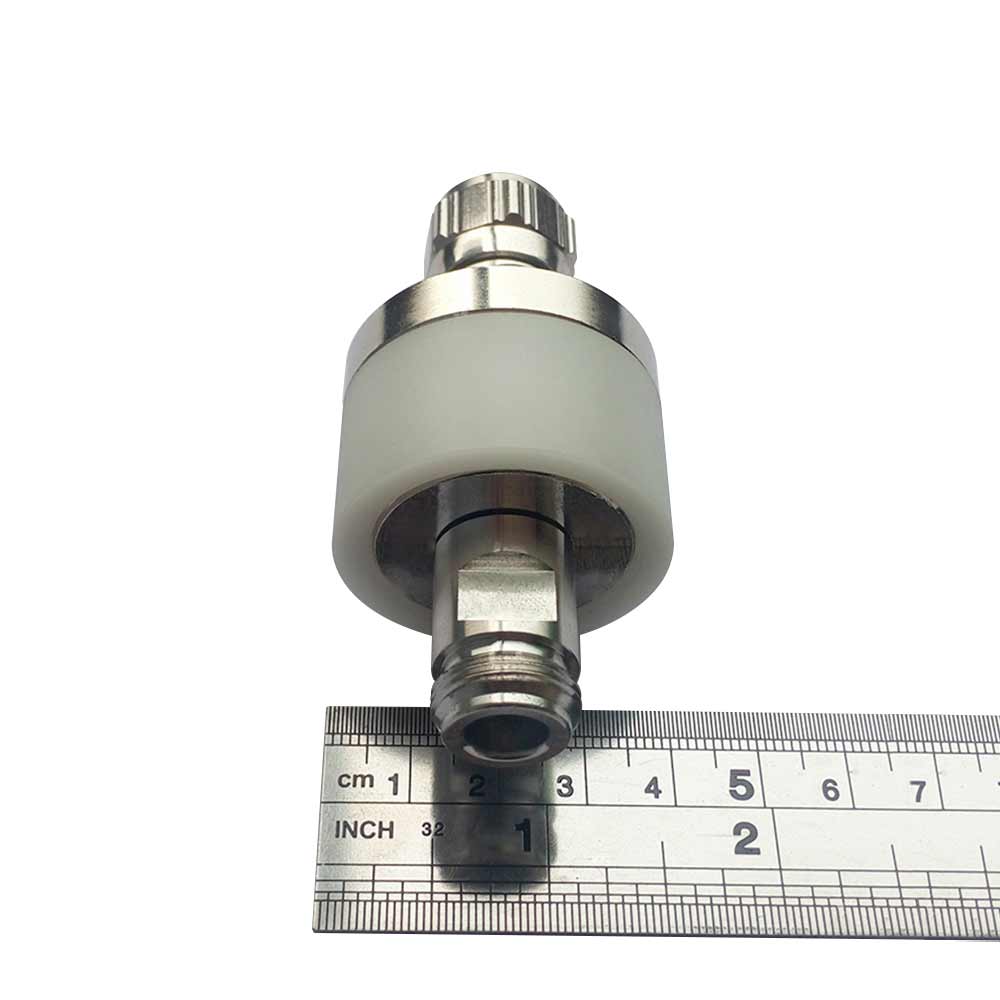

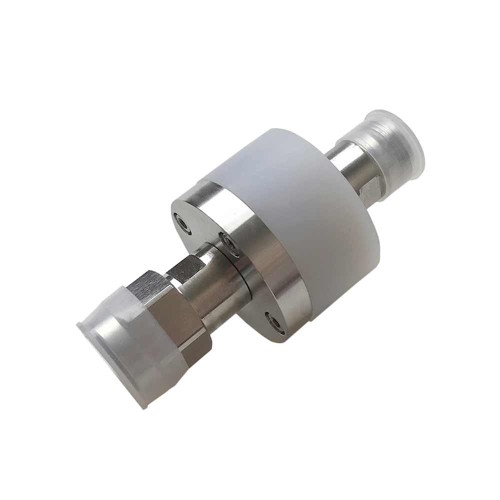

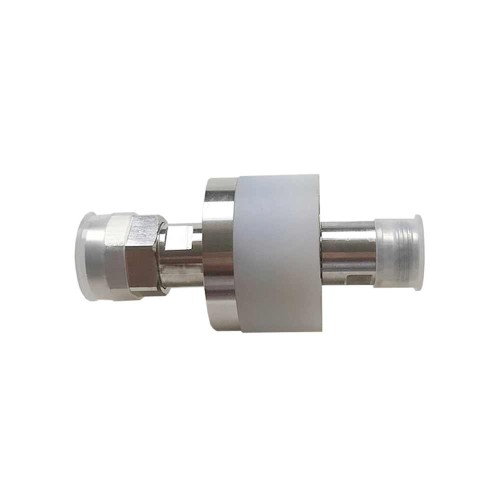

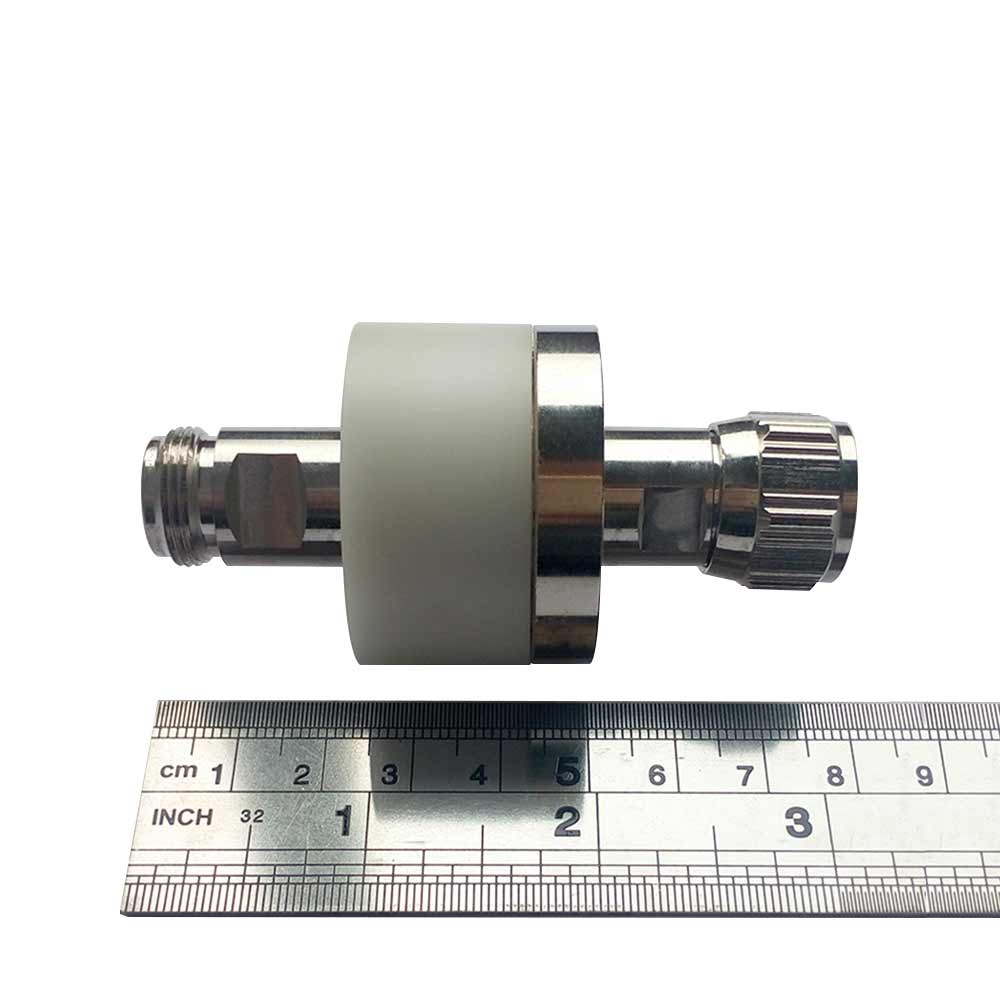

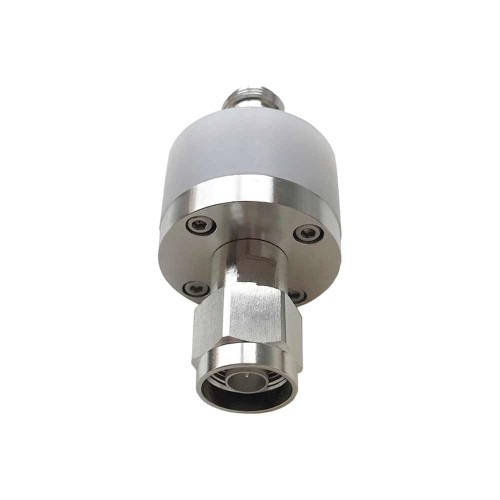

High-Voltage DC Block N-Type 200W DC Isolator 10MHz-3G/4G
Product features:
- N Male to Female, Straight, 10MHz-3G/4G 200W
- Special shielding design, excellent surge performance, can withstand multiple lightning strikes;
- Excellent passive intermodulation performance, excellent rf performance in the whole working band and superior power processing capability;
- Bi-directional protection、DC Pass;
- High Quality with 30 days 100% Money back;
- From the OEM Original Factory, same quality with much better price.
Applications:
- 3G/4G/LTE Cellular Modems
- Routers
- Boosters/Amplifiers
- 2.4&5GHz WiFi Access Points
- other Sensitive Communications Devices
from
$63.97
Ex Tax: $63.97
- Stock: In Stock
- Model: JE00003336
- Weight: 0.95kg
- SKU: JE00003336
Products Sold: 0
Product Views: 18
Available Options
Ask a Question About This Product
- Description
1.Power: 200W
2.Frequency Range :10MHz-3G/4G
3.VSWR: ≤1.20
4.Connector: N Male to Female
5.Impedance:50Ω
Electrical Characteristics
- Power capacity (W) : 0-100w
- Contact resistance: 50 Ω
- Frequency range:DC - 6GHz
Mechanical Characteristics
- Connector Mounting Type:Bulkhead/Panel/Outdoor
- Installation angle:Straight/ Right Angle
- Durability: >500 cycles
Environmental Characteristics
- Ambient temperature:-40 ~ +85ºC
- Temperature: -40 to +155°C/ 5 to 95% non-condensing
- Environmental Protection L evel: IP55
Material:
art | Material |
Outer conductor | copper/stainless steel |
Central conductor | copper |
Insulator | polytetrafluoroethylene/polyethylene |
Coating | gold plated/silver/nickel/tin |
Construction | Nickel plated brass |
