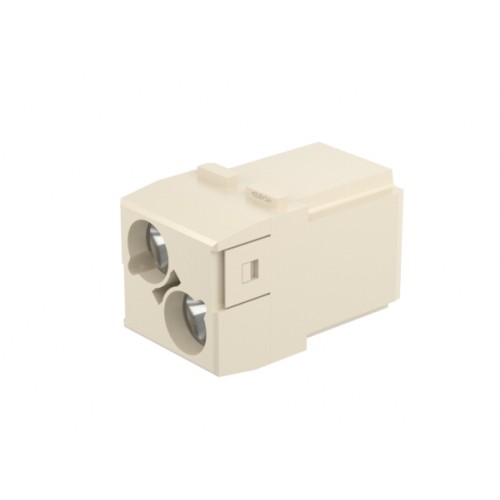

HM100-002-M-2

HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
HM100-002-M-2
- Write a review
  • Stock: In Stock
  • Model: JE00014210
  • SKU: JE00014210
Products Sold: 0
Product Views: 17
Add to Wish List Compare this Product
  • Description

Product Parameters

Wiring way
Axial Screw Termination
Male and female type
Male
Pin number
2

Material Feature

Material
Polycarbonate (PC)
Colour
RAL 7032 (Pebbly lime)
Mateial(pin)
Copper Alloy
Surface(pin)
Silver Plated
Materia flame retardant grade complies with UL 94
V-0
RoHS
Conform
RoHS exemption 6(c)
Copper alloy contain lead up to 4%
ELV status
Conform
China RoHS
e
REACH Annex XVII substance
Uncontain
REACH Annex XIV substance
Uncontain
REACH SVHC substance
contain
REACH SVHC substance
Lead
Railway vehicle fire protection
EN 45545-2 (2020-08)

HM100-002-M-2

HM100-002-M-2

HM100-002-M-2

HM100-002-M-2

  • Technical Parameters
Category
Module
Series
HM
Module category
HM100
MODULE SIZE
Dual module
Conductor cross-section
16-35 mm²
Rated Current
100A
Rated Voltage
1000V
Rated Impulse Voltage
8 kV
Rated voltage complies with UL
600 V
Pollution Degree
3
Insulation impedance
>1010Ω
Stripping length
13 mm
Tightening Torque
7 … 8 Nm
Limiting temperature
-40 ℃ … 125 ℃
Mating Cycles
≥ 500
