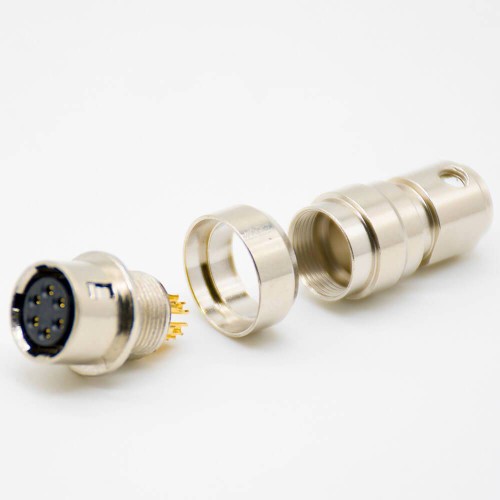

Circular Connector Female Jack float mounting 6 Pin Straight Solder Cup HR10 Circular Push-Pull Connector 5pcs

MATERIAL:

• Shell:Zinc alloy and brass
• Insulator: Polyamide resin, PBT resin
• Contact :Copper alloy

Main Application:

• Electronic
• Instrumentation
• Video processing
• Technology equipment

Electrical Characteristics:

• Contact resistance：10mø min. Measured at DC 1A
• Insulation resistance：1,000Mø min. Measured at DC 100V
• Withstanding voltage：No flashover or dielectric breakdown. AC 300V for one minute, 4 contacts : AC 500V for 1 minute
• Vibration resistance：No electrical discontinuity of 10µs or greater 10 to 55Hz/cycle, amplitude : 0.75mm, 3 axis directions,for 2 hours each
• Shock resistance： No electrical discontinuity of 10µs or greater Acceleration : 490m/s2 , duration : 11ms 3 directions,3 times each
• Mating Cycles Contact resistance : 15mø min. 1,000 times

Environmental Characteristics:

• Humidity resistance：5Mø min. (at high humidity)50Mø min. (at dry)
• Temperature : 40℃, relative humidity : 90 to 95%,left for 96 hours
