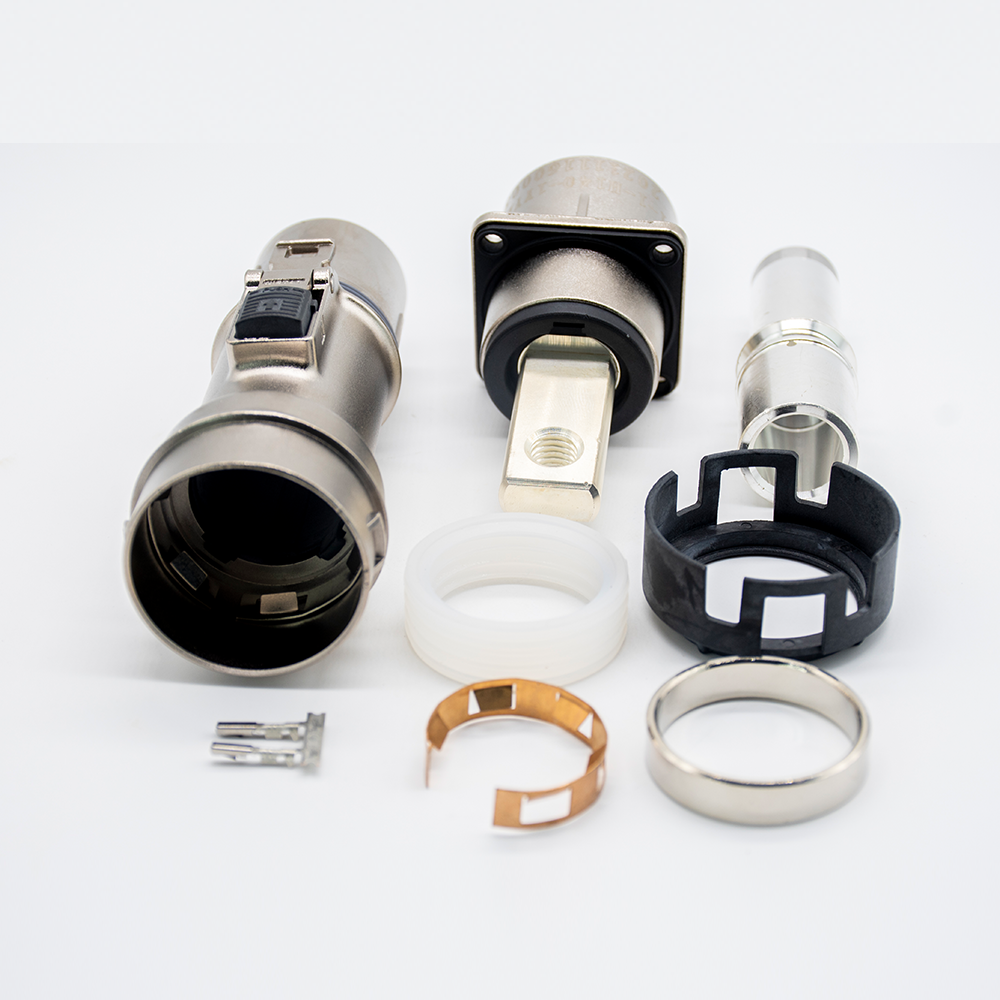

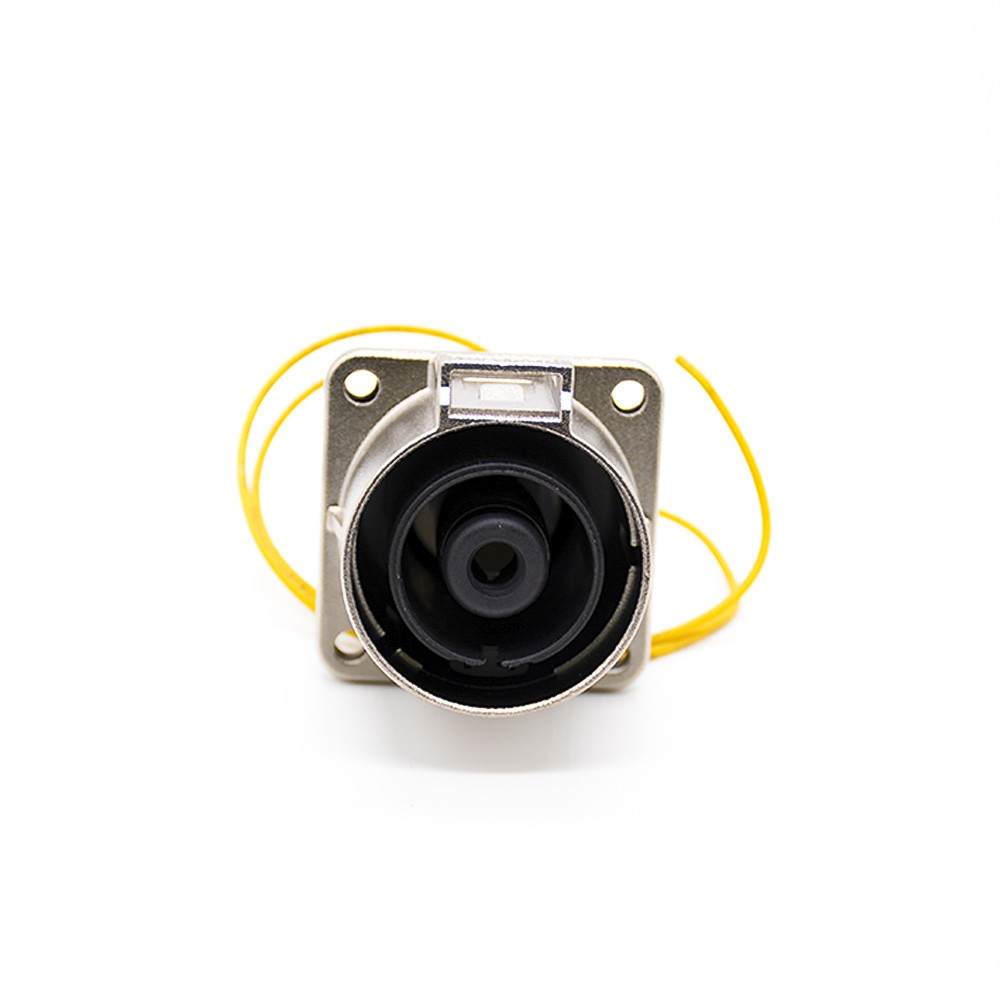

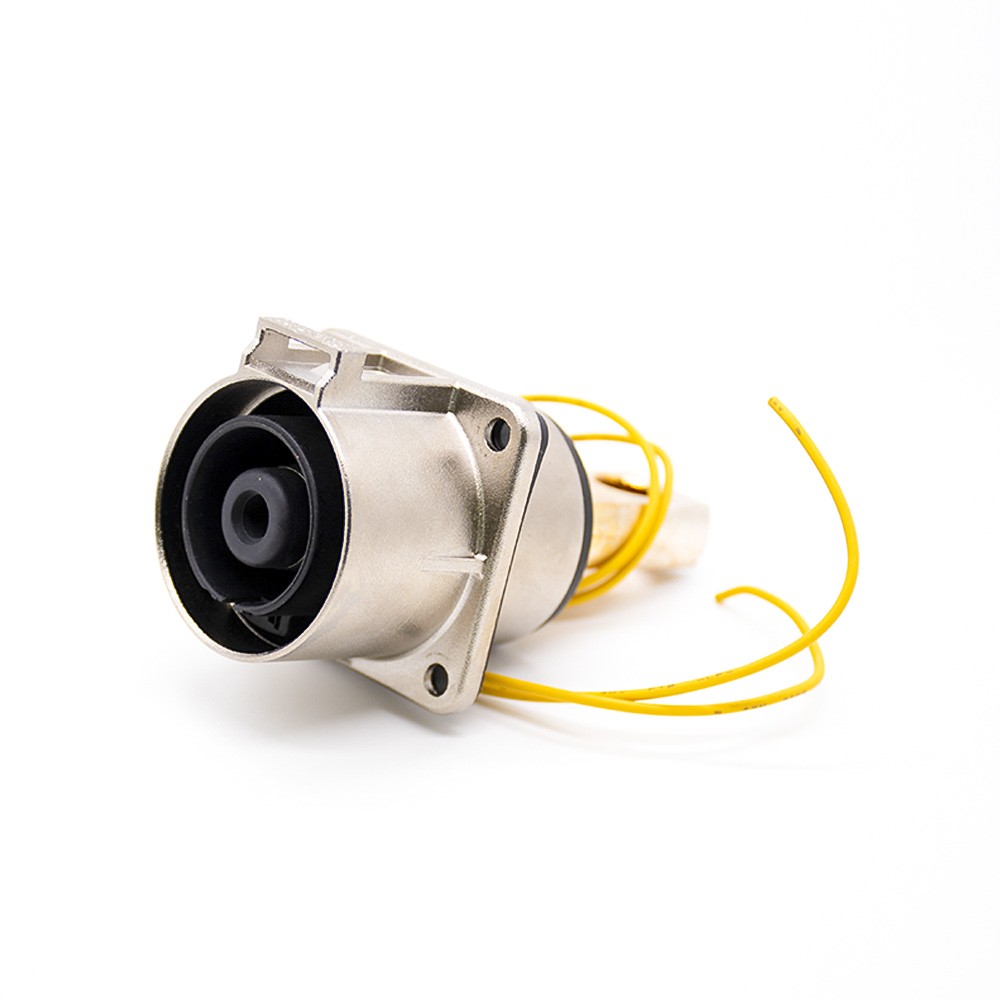

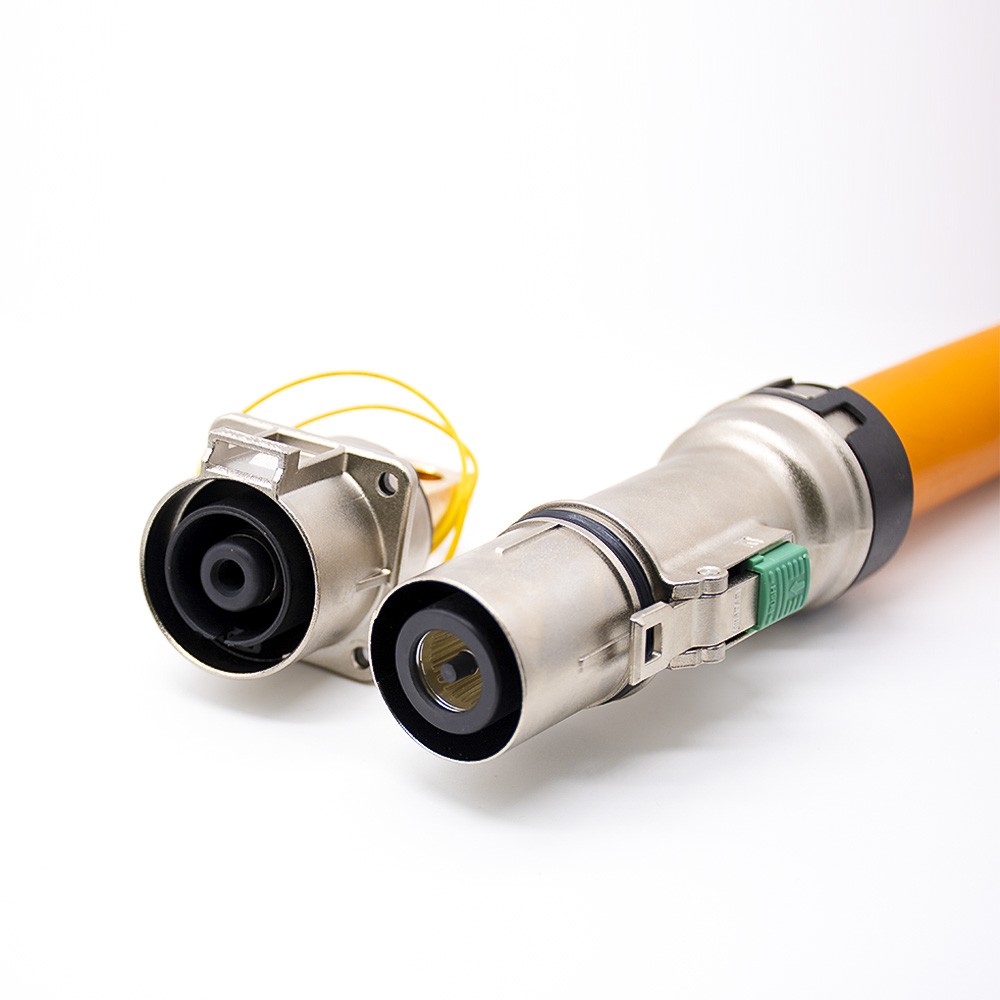

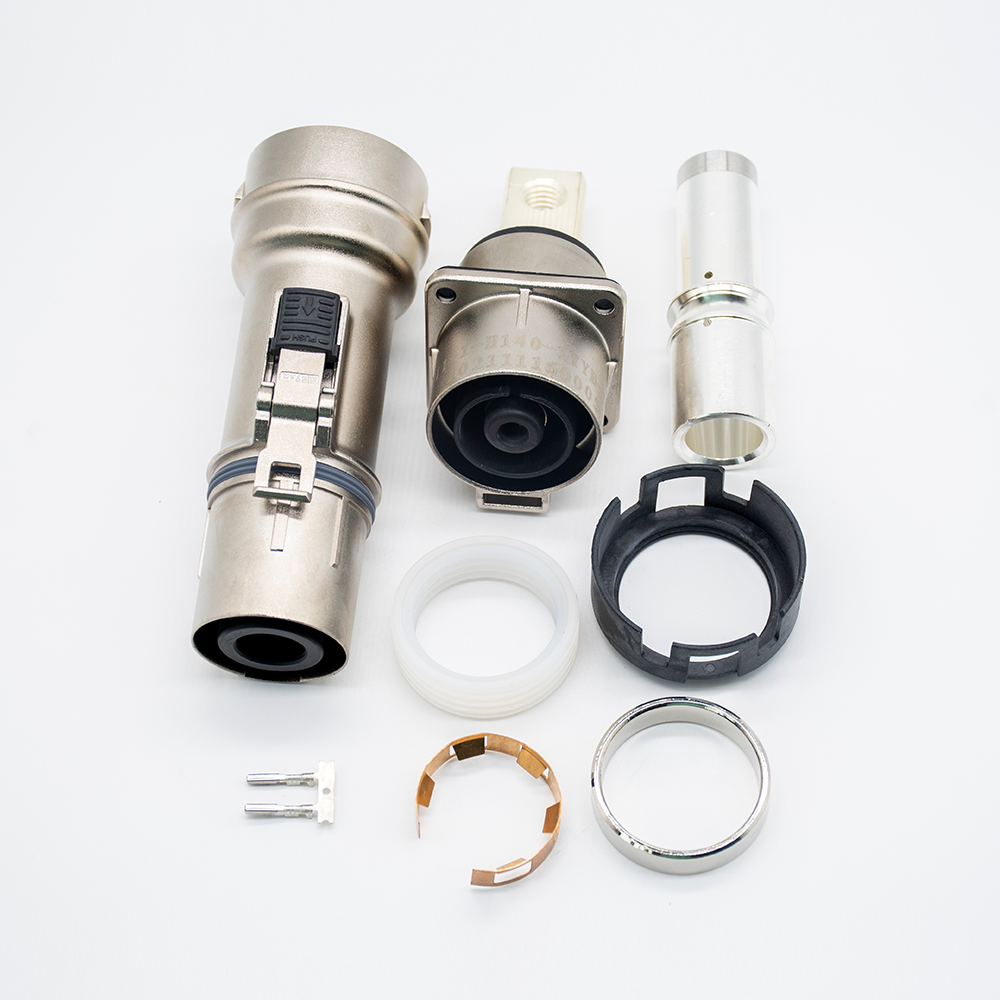

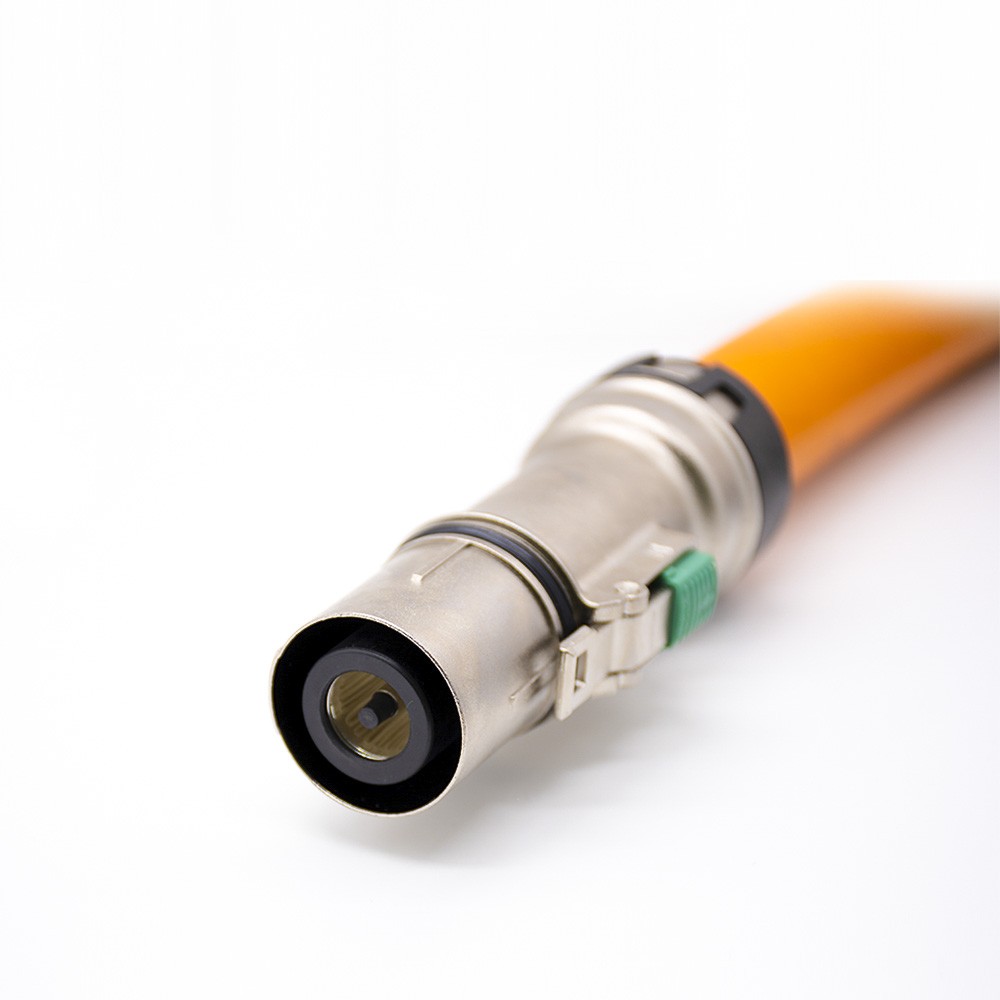

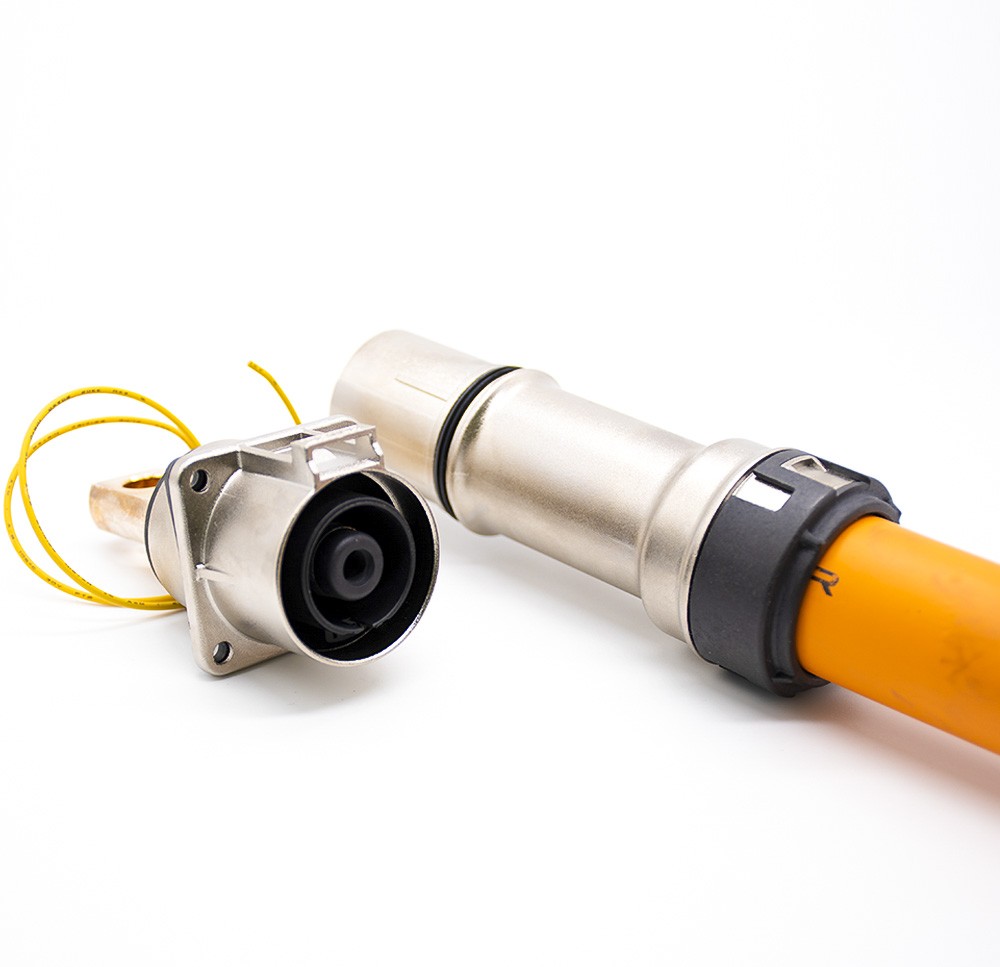

High Voltage Connection 1 Pin 180° Metal Socket&Plug 500A Straight Shield
from
$97.08
Ex Tax: $97.08
3 or more $85.43
5 or more $72.81
- Stock: In Stock
- Model: JE00010041
- SKU: JE00010041
Products Sold: 0
Product Views: 1
Ask a Question About This Product
- Description
Applications:
Specially designed for DC-DC, air-conditioner, battery, inverters, junction boxes, power distribution boxes and other equipment in xEV device applications.
| Product Parameters | |
| Rated Voltage | 960V AC/1000V DC |
| Rated Current | 16A,35A,50A,125A,150A,200A,250A,400A,500A |
| Withstand Voltage | 3000V AC |
| Insulation Resistance | ≥500MΩ |
| Cable Gauge | 2.5-150m㎡ |
| Connection Type | Terminal machine |
| Mating Cycles | >100 |
| Shielding | 360 |
| IP Degree | IP67 IP6K9K(Mated) |
| Operating Temperature | -40℃~125℃ |
| Salt Spray | MAX 96h |
| Flammability Rating | UL94 V-0 |
| HVIL | Intergrated Inside |
| Positions | 1/2/3pin |
| Material | |
| Shell | PA66,Zinc alloy |
| Contacts | Cooper alloy,Silver plating |
| Sealing | Rubber |
| cable for choose | |
| Current | Guage |
| From16A to 23A MAX | 2.5-4m㎡ |
| From16A to 35A MAX | 2.5-6m㎡ |
| From16A to 50A MAX | 2.5-10m㎡ |
| 125A Max | 25m㎡ |
| 150A Max | 16-35m㎡ |
| 200A Max | 25-50m㎡ |
| 250A Max | 50-70m㎡ |
| 400A Max | 95-120m㎡ |
| 500A Max | 120-150m㎡ |
