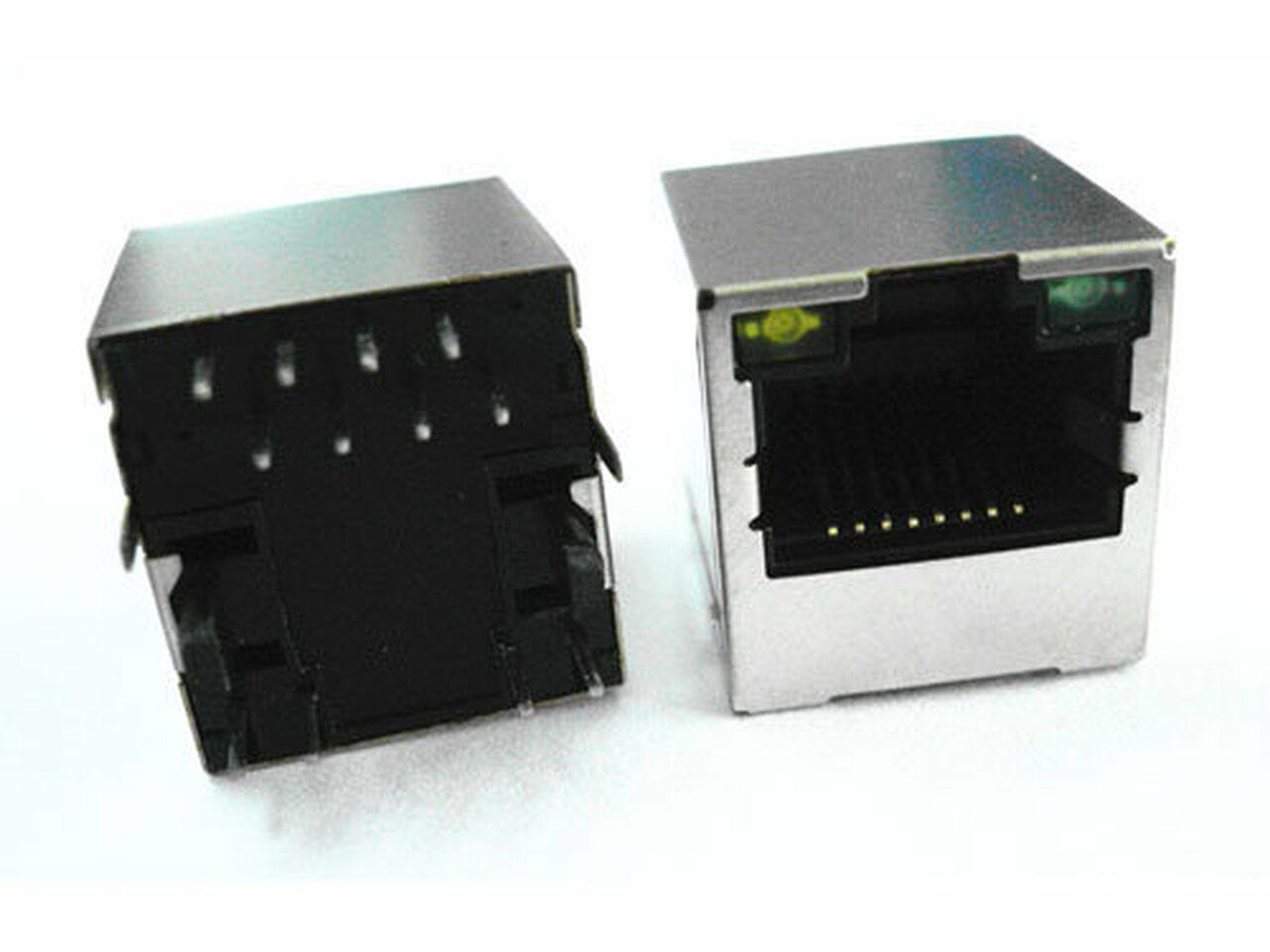

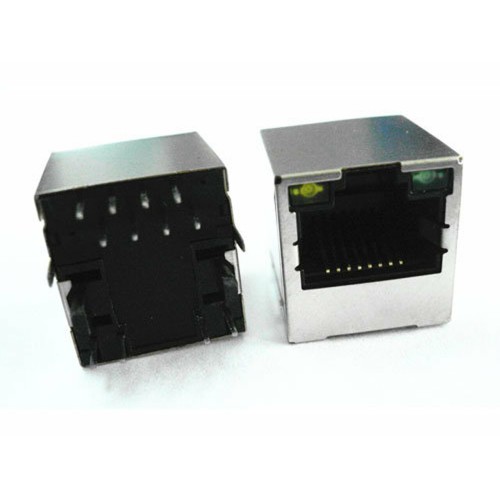

HY951180A 1Port upright RJ45 Connector with Magnetics LED
from
$3.36
Ex Tax: $3.36
10 or more $3.09
30 or more $2.86
50 or more $2.69
100 or more $2.52
- Stock: In Stock
- Model: JE00006483
- SKU: JE00006483
Products Sold: 0
Product Views: 5
Ask a Question About This Product
- Description
Description
1x1Port Tab upright RJ45 Connector with Integrated Magnetics LED for 10/100Base-TX NIC Applications
Highlights
-
RoHS Compliant (Pb Free)
-
Designed for Network Interface Card Application
-
Meets or Exceeds IEEE802.3 standards including 350uH Min OCL with 8mA
-
High performance for EMI suppression, Crosstalk and Return Loss
-
Minimum 1500Vrms isolation per IEEE 2.3 requirement
-
Minimize PCB space and Simplify PCB Layout
-
Less magnetic components to place on PCB, Higher reliability and yields
Resources
Extra Information
Brand:
HanRun Electronics
Isolation:
1500Vrms (UTP side to Chip side)
Insertion Loss:
-1.0dB Max@300KHz~100MHz
OCL:
350uH Min@100KHz 100mV with 8mADC
Return Loss:
-20dB Min@1MHz~10MHz / -16dB Min@10MHz~30MHz -12dB Min@30MHz~60MHz / -10dB Min@60MHz~80MHz
Common Mode Rejection:
-30dB Min@1MHz~50MHz -20dB Min@50MHz~150MHz
Crosstalk:
-40dB Typ.@1MHz~30MHz / -35dB Typ.@30MHz~60MHz -30dB Typ.@60MHz~100MHz
Compliant:
RoHS
Package:
RJ45 Plugin
LED Color:
Greed , Yellow
