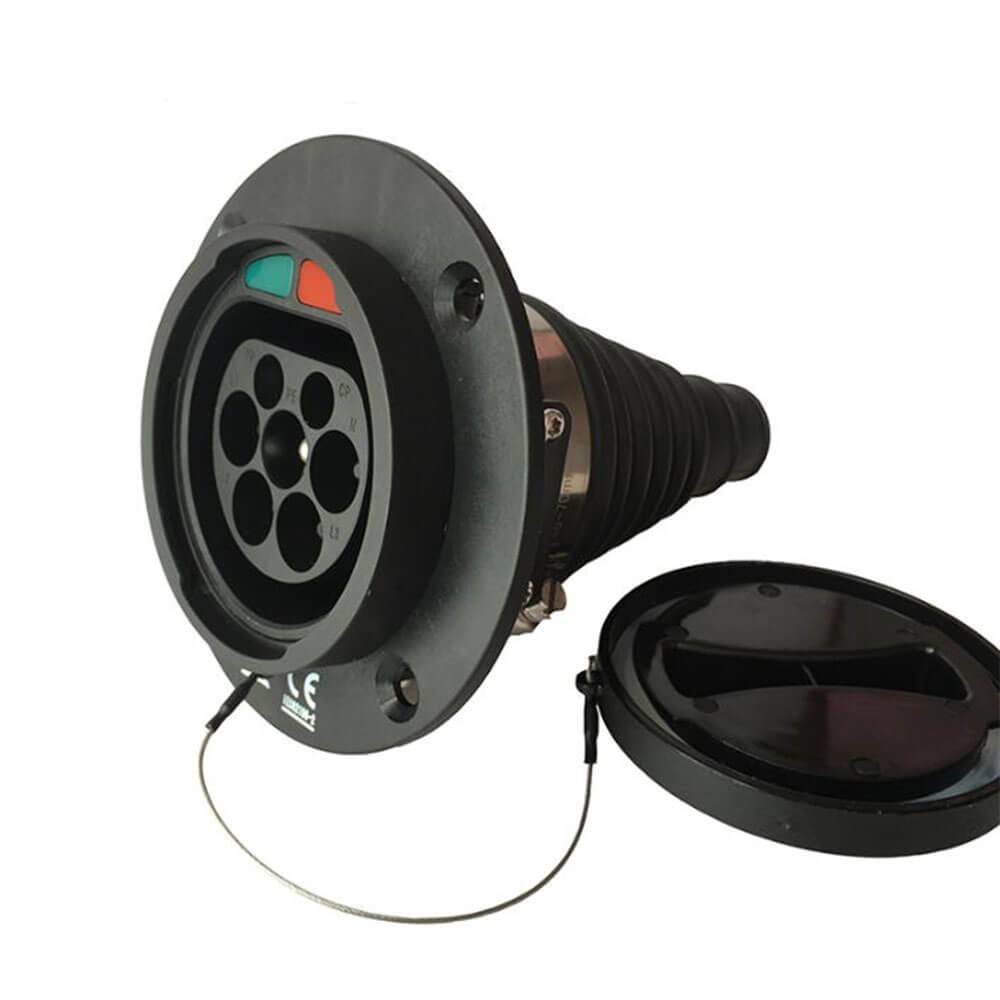

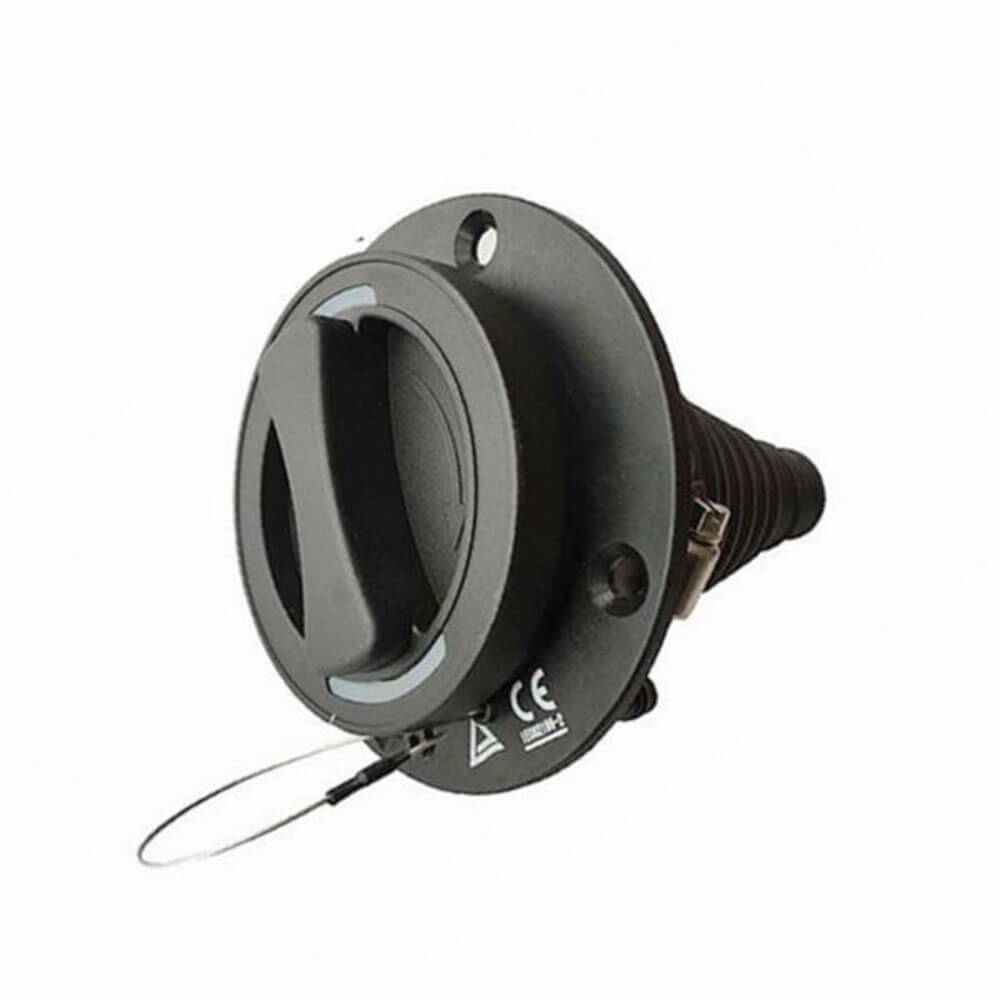

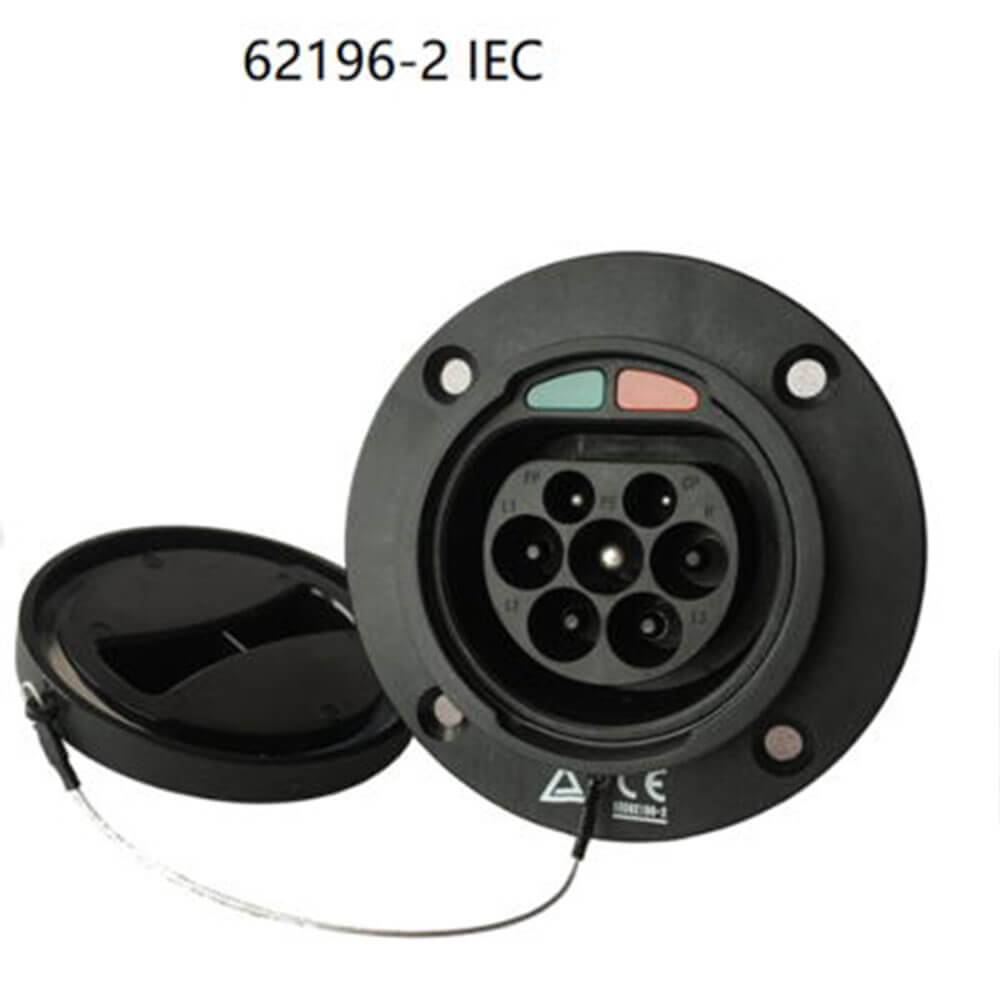

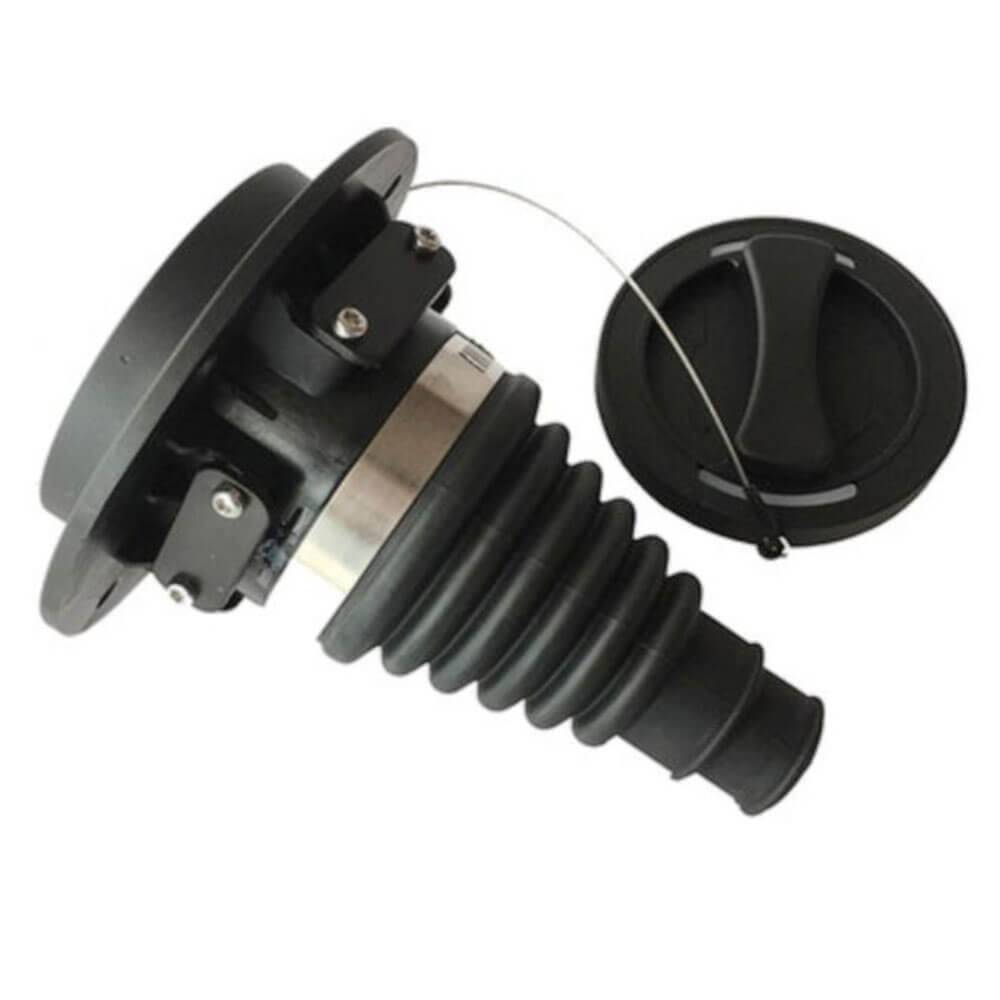

IEC 62196 Type 2 connector Vehicle Side EV Charging Socket AC 16A/32A

Features:

EV Charging Connector, IEC 62196 Socket, Vehicle Side, Type2, AC 16A/32A
Products complies with GB/T20234-2011 standard;
Various types for choice, include DC charging connector (125A, 250A current rating), AC charging connector (Vehicle side, power supply side,16A,32A current rating).
Humanized design with a good grasp feel, easy to use.
Various accessories available, protection cap include damping cap, metal string cap,etc.
The plug and socket termination type is wire crimping.
Degree of protection: IP55
High Quality with 30 days 100% Money back;
From the OEM Original Factory, same quality with much better price.

- Write a review

from

$161.54

Ex Tax: $161.54

5 or more $134.08

Stock: In Stock
Model: JE00009951
Weight: 200.00g
SKU: JE00009951

Products Sold: 0

Product Views: 28

Qty

Add to Cart

Buy Now Ask a question

Add to Wish List Compare this Product

Add to Cart

Buy Now

Specifications

attribute-list
Interface Type	IEC 62196 (Type 2)
Connector Type	Socket

Description

Usage：

Used for connection between the high voltage cables inside the electric vehicle.

Application :

For high-voltage connection of car charger, high voltage distribution box, motor controller, air conditioning, PTC, battery, etc. Can also be used for short circuit control.

Techinial Datasheet:

Electrical Characteristics

Rating current and contact resistance
Rating voltage:250/440V AC, 750V DC
Insulation resistance: ≥1000MΩ( AC charging connector);

Mechanical Characteristics

Durability: exceed 10,000 times (Non-charged state)

Main Technical Specification

Material:
——Shell: Thermoplastics
——Insulator: Thermoplastic
——Sealing ring: rubber material
——Insulator flame retardant grade: UL94-V0
——Contact: copper alloy, power contact with gold-plated, signal contact with gold-plated
Environmental Performance:
——Operating temperature:-30℃～+50℃
——Relative humidity : 98% at40℃
——Degree of protection: IP55 (during charging)
