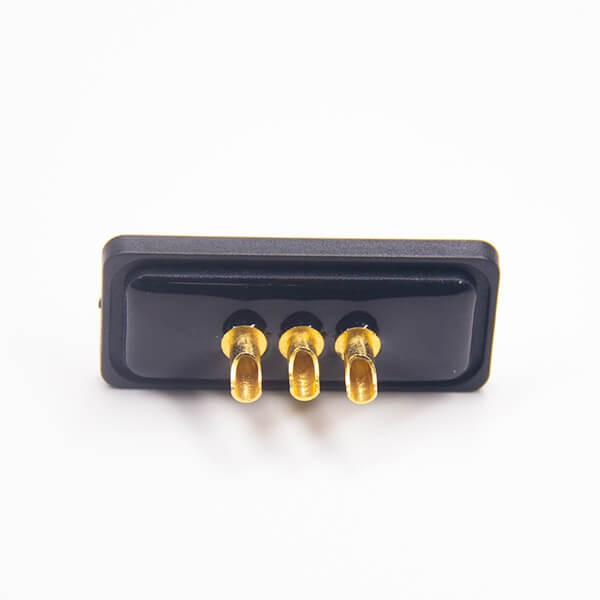

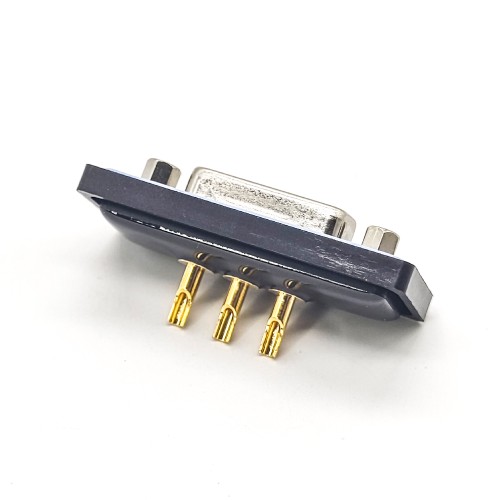

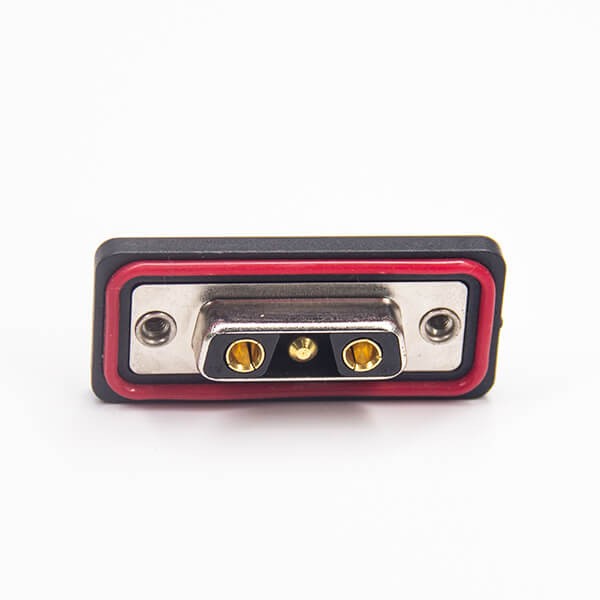

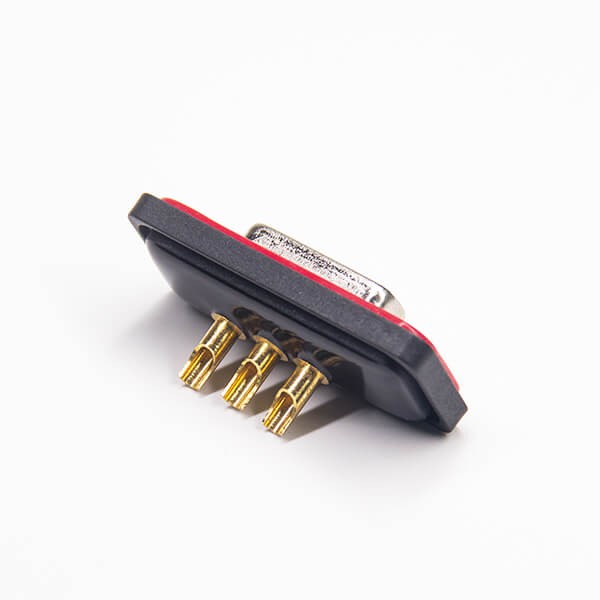

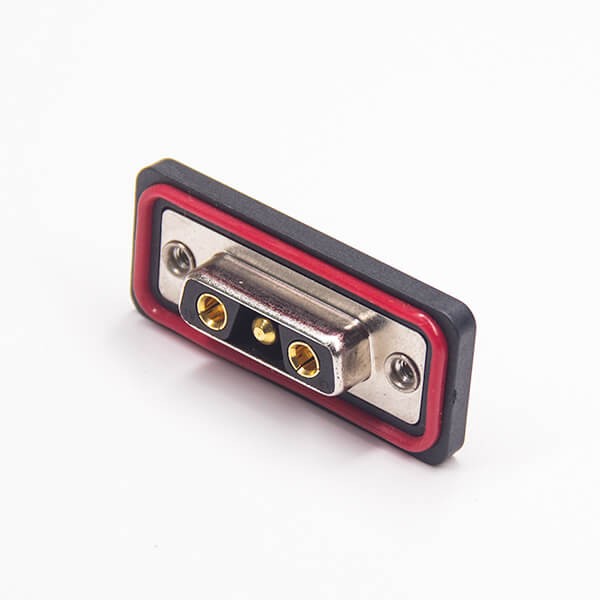

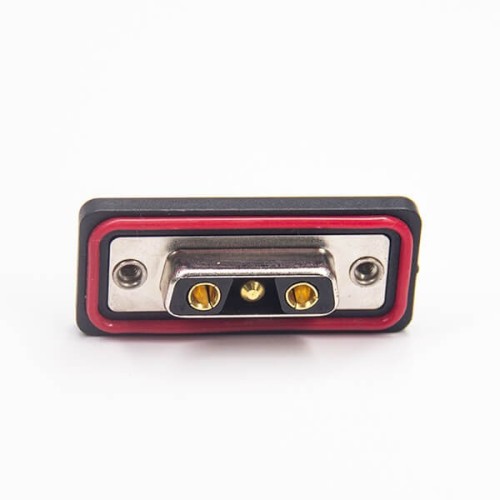

IP67 d sub 3V3 Female Contact solder type Connectors

IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors
IP67 d sub 3V3 Female Contact solder type Connectors

Features:

  • IP67 Waterproof,D sub Combo,Female,Solder Cup,Gold plated 3U'',straight,Machined Pin,3V3,Cable;
  • Interfacial seal to ensure function even when immersed;
  • Better against mechanical impacts during installation;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • industrial machinery
  • medical equipment
  • test and measurement equipment

communications

- Write a review
from
$21.58
Ex Tax: $21.58
10 or more $19.85
30 or more $18.34
  • Stock: In Stock
  • Model: JE00004055
  • Weight: 15.76g
  • SKU: JE00004055
Products Sold: 0
Product Views: 6

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Cup
Installation characteristics Shell (M3.0)
Connector Type Socket
Number of Positions 3V3
Continuous plating machined pin
Direction Straight
Number of Rows 1
Filter No
Waterproof level IP67
Installation method Cable
  • Description

Electrical Characteristics

  • Contact resistance:10 mOhm
  • Current rating signal:7,5 A
  • Dielectric with standing voltage signal:1000 V
  • Working voltage signal:125 V
  • Test voltage:1000V

Mechanical Characteristics

  • Extraction force:30N
  • Insertion force:30N

Environmental Characteristics

  • Operating Temperature：-25°C~ +125°C

Material:

Part Material Finish
Body  steel Tin
Center Contact Pin Copper alloy     hard acid gold over nickel
Insulator  Polyester GF, UL 94V-0
------

IP67 d sub 3V3 Female Contact solder type Connectors

IP67 d sub 3V3 Female Contact solder type Connectors

IP67 d sub 3V3 Female Contact solder type Connectors

IP67 d sub 3V3 Female Contact solder type Connectors

IP67 d sub 3V3 Female Contact solder type Connectors

  • Reviews

There are no reviews for this product.
