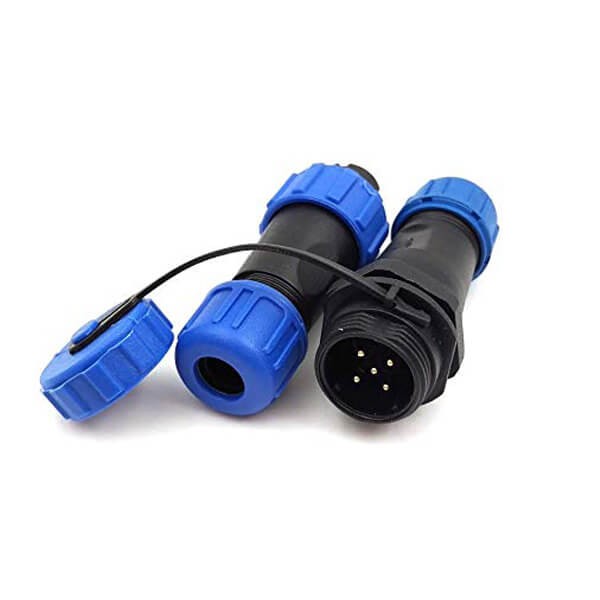

IP68 Power Connector 5 Pin SP17 Type Male Plug And Female Socket Industrial Connectors

IP68 Power Connector 5 Pin SP17 Type Male Plug And Female Socket Industrial Connectors
IP68 Power Connector 5 Pin SP17 Type Male Plug And Female Socket Industrial Connectors

Features:

  • SP17 Series Connector,Straight,In-Line Type,In-Line Socket and Plug,Solder Contact,5 Pin
  • With its IP68 rating, each product is excellent within harsh environments
  • Easy quick connect and disconnect coupling
  • High cost-effective with good quality
- Write a review
from
$5.69
Ex Tax: $5.69
10 or more $5.23
30 or more $4.84
50 or more $4.55
100 or more $4.27
  • Stock: In Stock
  • Model: JE00010967
  • Weight: 34.00g
  • SKU: JE00010967
Products Sold: 0
Product Views: 14
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Cup
Installation characteristics Bulkhead/Solder Type
Connector Type one pair (Plug and Socket)
Gender Male and Female (one Pair)
Number of Positions 5 pin
Direction Straight
Installation method Panel Mount / Cable
  • Description

Electrical Characteristics

  • Insulation resistance: 2000MΩ
  • Contact Resistance: 2.5MΩ/5MΩ
  • Rated Voltage: 500V/ 400V
  • Rated Current: 10A/5A

Mechanical Characteristics

  • Mating Type: Thread coupling
  • Termination : Solder / Screw
  • Durability(mating): 500 cycles

Environmental Characteristics

  • Temprature Range:  -40°C ~ +85°C
  • IP Rating: IP68

Material :

  • Shell Material: PA66
  • Insert Material: PPS
  • Contact: Copper,Gold Plated
  • Contact Diameter: 1.5MM,1MM

IP68 Power Connector 5 Pin SP17 Type Male Plug And Female Socket Industrial Connectors
