M16xa03-Pinxa0IP68xa0Dockingxa0Male-Femalexa0Aviationxa0Connectorxa0Screwxa0Lockxa0Linexa0Connection

Waterproof LED, waterproof plug cable, waterproof plug is widely used in outdoor LED (street lights, displays, architectural lighting, etc.), automobiles and ships, LED drive power, LED display, lighthouses, cruise ships, industrial equipment, communication equipment, detection equipment, etc.

Product Name: M16 3-Pin Ip67 Docking Male-Female Aviation Connector - Screw Lock Line Connection

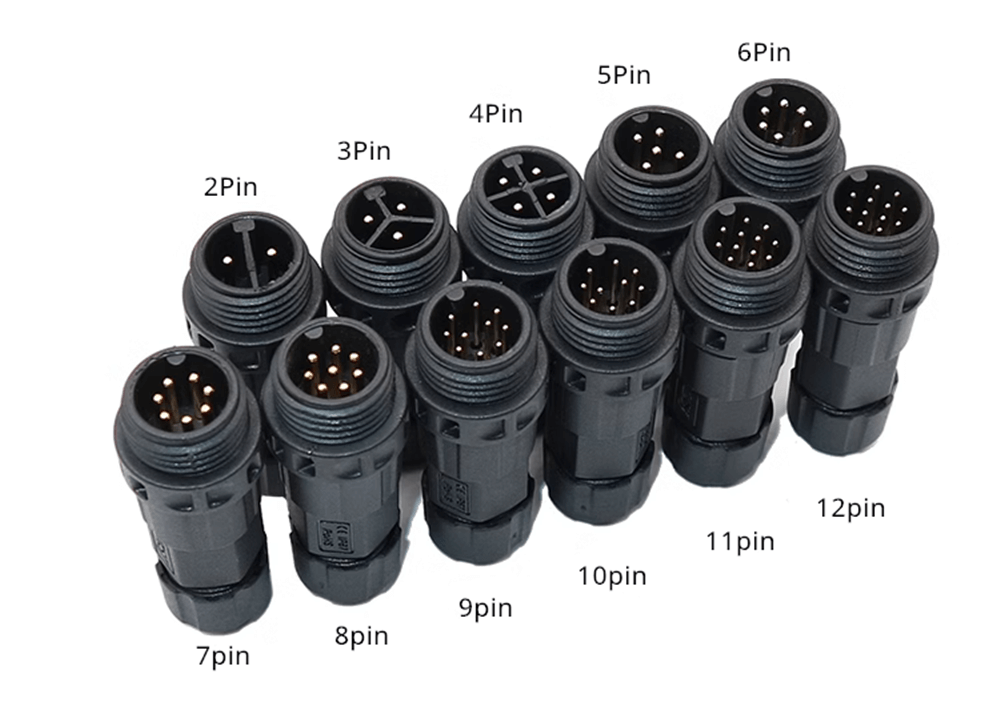

Rated Current and Voltage

2 Pin:  500V, 15A

3 Pin:  500V, 15A

4 Pin:  500V, 15A

5 Pin:  300V, 10A

6 Pin:  110V, 5A

7 Pin:  110V, 5A

8 Pin:  110V, 5A

9 Pin:   60V, 5A

10 Pin: 60V, 5A

11 Pin: 60V, 5A

12 Pin: 60V, 5A

Cable Wiring Type:

Solder Type: 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 Pin

Screw Type: 2, 3, 4 Pin

Contact material: Copper-plated golden

Cable Wiring Method: Screw Type

Withstand voltage: 1500V

Protection grade: IP68

Terminal material: copper, gold plated

Contact resistance: < = 5m Ω

Connector material: Nylon / PVC

Test temperature: - 35 ℃ - + 105 ℃

Flame retardant grade: UL94V-0

Main features of the product:

1. Safe thread insertion and extraction system is more firm and reliable;

2. Waterproof connection, assembly and docking (IP68)

3. A wide range of models for customers to choose;

4. Multi-core type, 2-12 cores optional;

5. High-density installation saves space;

6. The key position selection of multiple plugs can avoid the mixed insertion between similar connectors;
