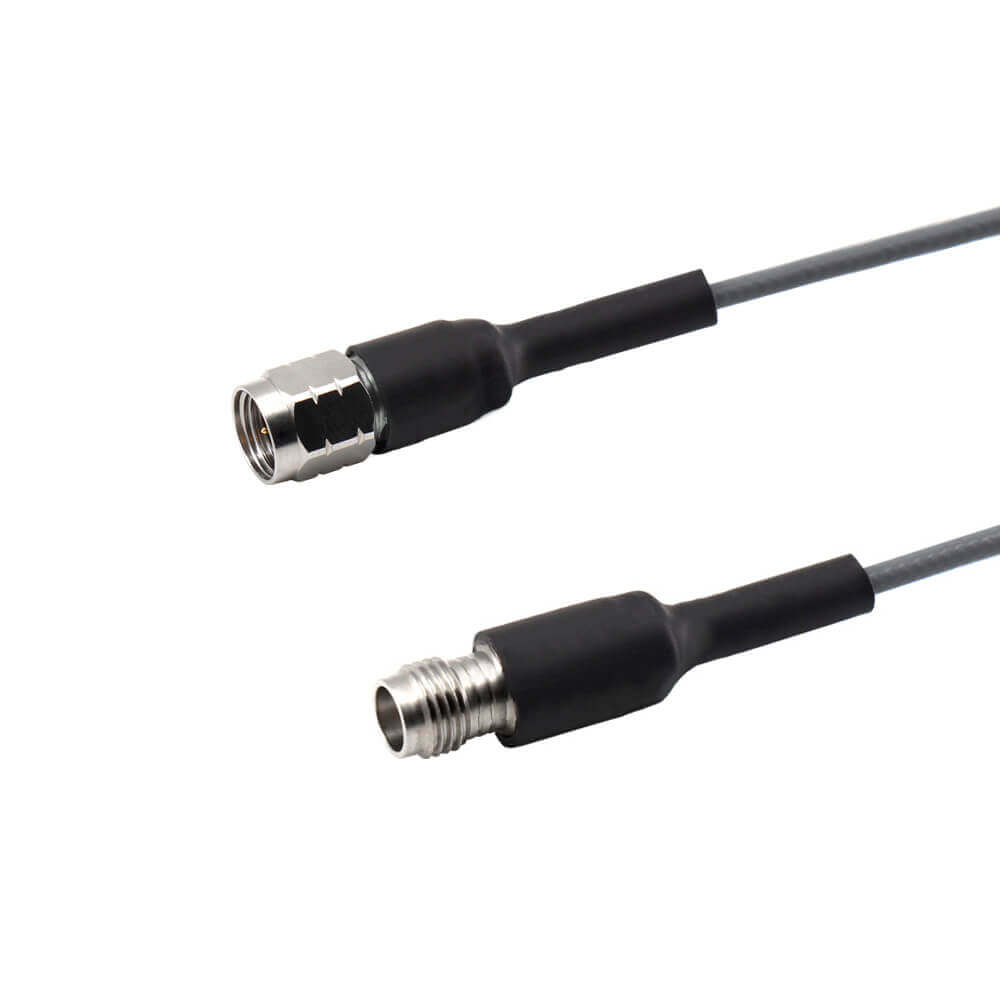

Low Loss High Frequency 1.85Mm Male To 1.85Mm Female Test Cable 0.3M

       DC to 27.0 GHz …........1.10:1 max

       27.0 to 40.0 GHz ……...1.15:1 max

       40.0 to 50.0 GHz ……...1.18:1 max

       50.0 to 67.0 GHz ……...1.25:1 max

• Outer conductor diameter: 1.85 mm
• Interface Standards: IEEE 287-2007

Appliance:

• Mil-Aero
• Telecommunication
• RFID
• Antennas
• Test and measurement
• Radar systems

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range:DC to 67  GHz
• VSWR:1.03 + .005 f
• Insertion Loss:.04 √ f
• Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

• Mating Torque:5 - 7 in - lbs
• Connector Durability：500 mating cycles min
• Inter-mate ability:2.4mm

Environmental Characteristics

•  Temperature Range：-65°C to +165°C

Material:
