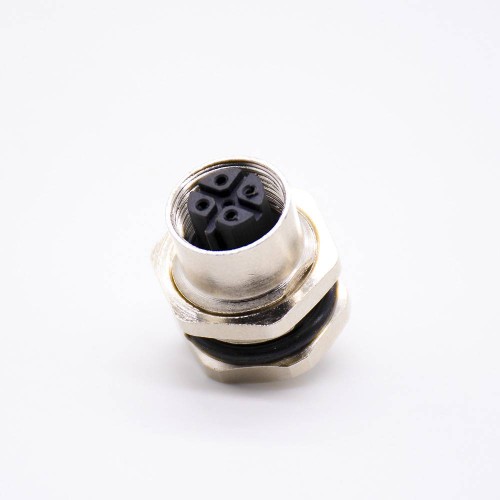

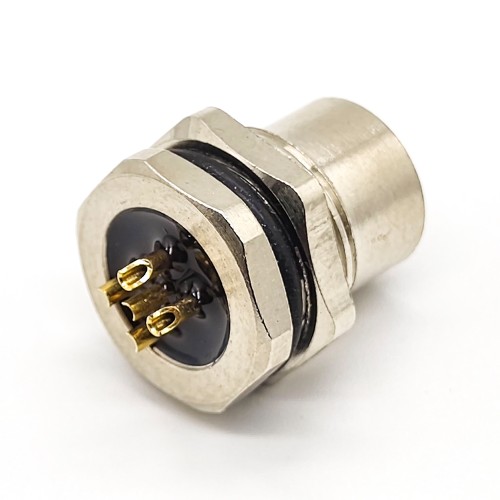

m12 connector 5 pin B code female straight front mount solder type
from
$3.67
Ex Tax: $3.67
10 or more $3.38
30 or more $3.12
50 or more $2.94
100 or more $2.75
- Stock: In Stock
- Model: JE00007524
- SKU: JE00007524
Products Sold: 0
Product Views: 1
Ask a Question About This Product
- Description
Appliance:
- Miniature sensors
- Industrial camera
- Electrical bike
- Packaging, Labeling & Logistic
- Factory automation and fieldbus module
how to order:
Contact Arrsngement:
male
female
A code
B code
D code
Electrical Characteristics
- Rated current: 1.5 A
- Contacts resistance: ≤ 5 mΩ
- Insulation resistance: ≥100 MΩ
- Rated voltage: 30V
- Standard: IEC 61076-2-101
Mechanical Characteristics
- Coupling: thread locking
Environmental Characteristics
- Ambient temperature: -40°C ~ + 90°C
- IP rating: IP67
Material:
| art | Material | Finish |
| Connector contacts | Brass | Gold |
| Coupling nut/screw | Brass | Nickel |
| nsert/ Housing | TPU | ------ |
| Sealing | Epoxy | ------ |
