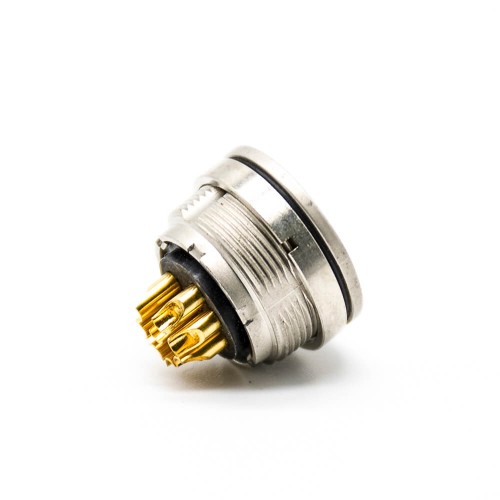

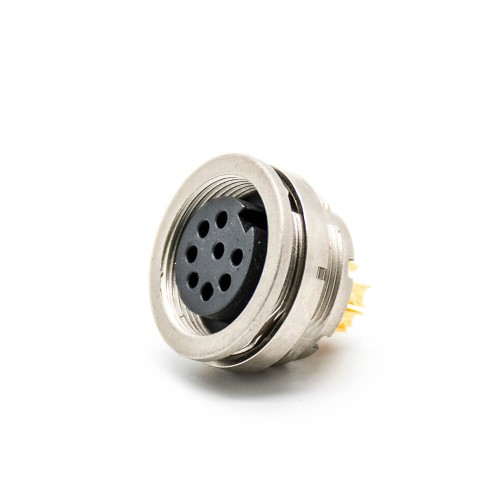

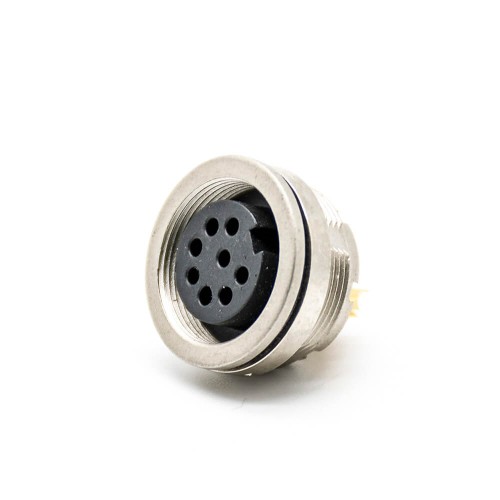

M16 Connector 8 pin Female Back Mount Solder Type Straight Connector Socket for Cable Shield

Main Application of M16 Connectors:

• Petroleum
• Chemical industry
• Iron and Steel
• Electricity
• Automotive Industry

Electrical Characteristics

• Rated current: 7A: 2/3/4PIN; 6A:5PIN; 5A: 6/7/8/12/14/16/19/24PIN
• Rated voltage: 200V: 2/3/4/5/6PIN; 60V: 7/8/12/14/16/19/24PIN
• Contacts resistance: ≤7MΩ: 2/3/4/5/6/7/8/PIN; ≤10MΩ: 12/14/16/19PIN; ≤12MΩ: 24PIN
• Insulation resistance: ≥1500MΩ: 2/3/4/5/6PIN; ≥1000MΩ: 7/8/12/14/16/19/24PIN
• Solder Cup Mouth Aperture: 1.0mm: 2/3/4/5/6/7/8PIN; 0.8mm: 12/14/16/19PIN; 0.6mm: 24PIN.
• Solder Inter Diameter: 1.5mm: 2/3/4/5/6/7/8PIN; 1.0mm: 12/14/16/19PIN; 0.5mm: 24PIN

Mechanical Characteristics

• Coupling: thread locking
• Termination: Solder
• Mating cycle: 500

Environmental Characteristics

• Temperature Range：-25°C to +85°C
• IP rating: IP67
