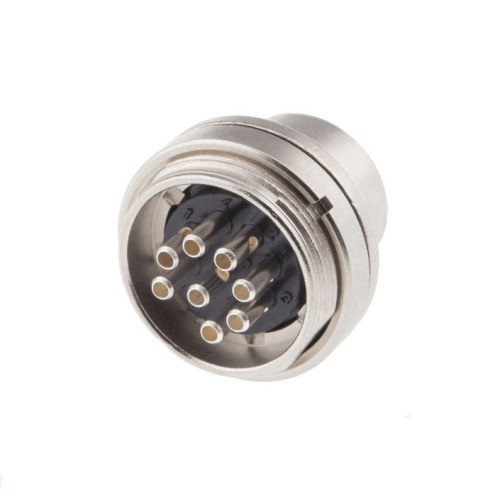

M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type

M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type
M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type
M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type
M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type
M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type

  • M16 Panel Receptacles, Male Socket, 8 Pin, A-Code, Waterproof, Straight, Back Mount, Solder Type, Shield, 5A
  • Extremely strong resistant to acid, alkali, chemical cleaning agent/reagent properties
  • Resistant to welding spark, continually twist
  • Resistant to oil, coolant, lubricant, and emulsion
  • Straight jack and straight plug configurations are available
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, the same quality with a much better price.

Main Application of M16 Connectors:

  • Petroleum
  • Chemical industry
  • Iron and Steel
  • Electricity
  • Automotive Industry
from
$7.58
Ex Tax: $7.58
10 or more $6.97
30 or more $6.44
50 or more $6.06
  • Stock: In Stock
  • Model: JE00008004
  • Weight: 12.00g
  • SKU: JE00008004
Products Sold: 0
Product Views: 1
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Back Mount
Gender Male
Number of Positions 8 pin
Coding A
Direction Straight
Installation method Panel Mount
  • Description

M16 Connectors 723 Series 8 Pin A Coded Male Back Mount Panel Receptacles Waterproof 180 Degree Solder Type

                                                     Product Parameter
Series M16
Coding A/B/C/D
Connection Type Panel Mount
Number of Contacts 3/4/5/6/7/8/12/14/24Pin
Gender Male/Female
Orientation Straight/Angled
Termination Soldering/PCB
Rated Current 5A/7A
Rated Voltage 200v/60v
Temperature Range -25°C ~ +85°C
IP Rating IP67
