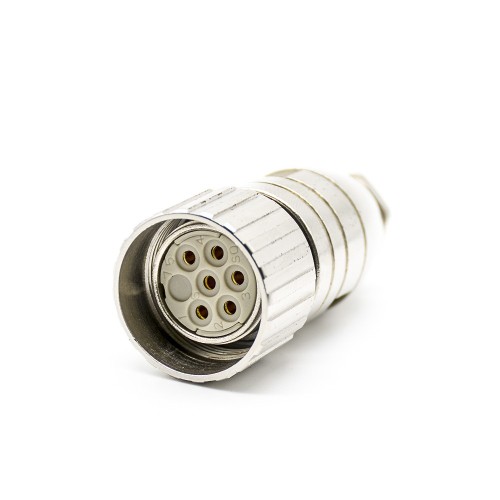

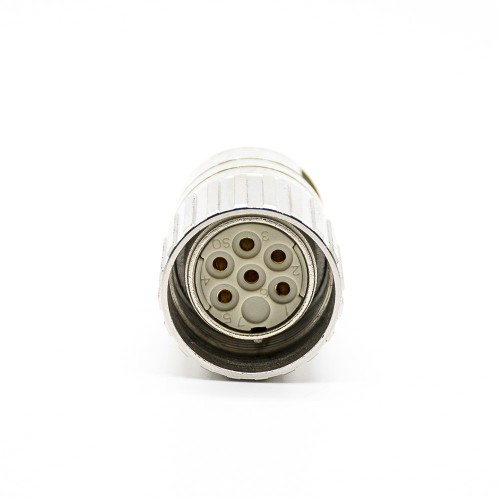

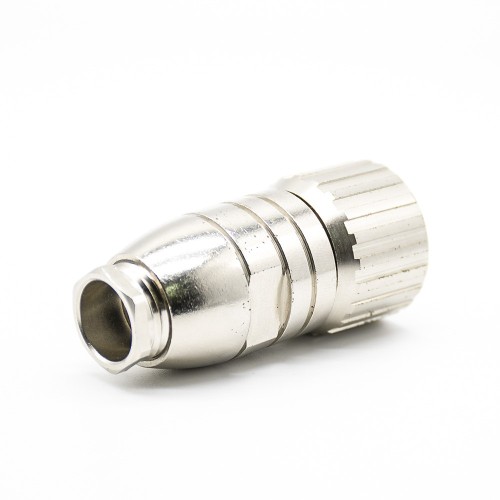

M23 6Pin Female Connectors Solder Type for Cable Shield Straight

Applications:

• Applications
• ●  Automation
• ● Transport
• ● Power generation
• ● Shipbuilding
• ● Medicine

Electrical Characteristics

• Rated current: 8A/ 20A/28A
• Contacts resistance: ≤ 3 mΩ
• Insulation resistance: ≥1010MΩ
• Rated voltage: 125V/200V/260V/300V
• Standard: IEC 61076-2-104

Mechanical Characteristics

• Coupling: thread locking

Environmental Characteristics

• Ambient temperature: -40°C ~ + 125°C
• IP rating: IP67

Material:

• Contacts plating: Gold plated
• Shell: Copper Alloy
• Connector contacts: Brass with gold plated
• Coupling nut/screw: Brass with nickel plated screw
• Insert: PBT/PA66+GF20%
• Shielding: Non-Shielded
• Sealing: Epoxy resin
