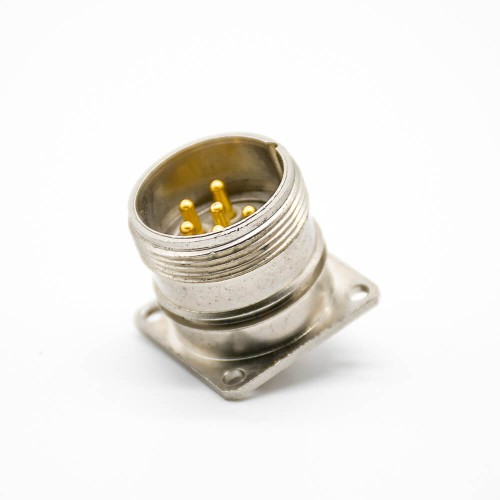

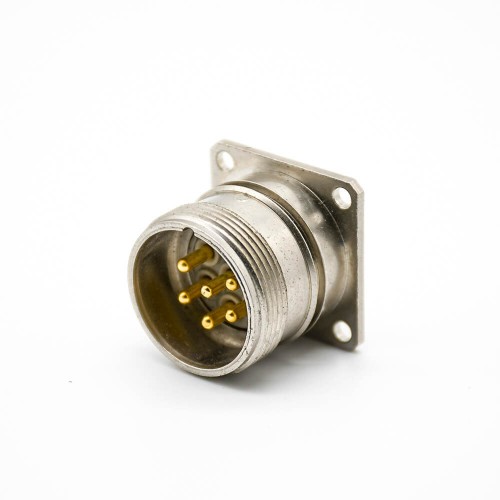

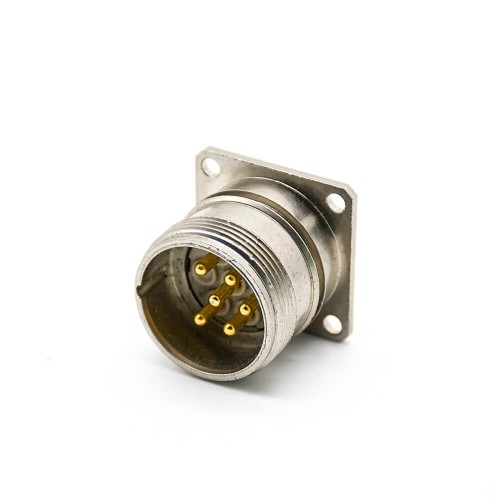

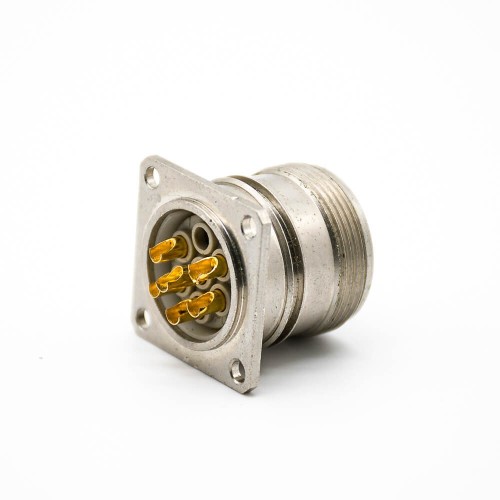

M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield

M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield
M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield

Features:

  • M23,6Pin,Male,Straight,Cable,Solder Type,Shield
  • Male/Female, Straight/right angle
  • wire/pcb/cable,
  • Termination: Soldering/crimping, Front Mount "
  • thread locking mechanism, 23mm metric size,  central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$31.67
Ex Tax: $31.67
10 or more $29.14
20 or more $26.92
  • Stock: In Stock
  • Model: JE00008137
  • Weight: 50.00g
  • SKU: JE00008137
Products Sold: 0
Product Views: 16
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics 4 Hole Flange
Gender Male
Number of Positions 6 pin
Direction Straight
Installation method Panel Mount
  • Description

Appliance:

  • Applications
  • ●  Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine

M23 Connector 6 pin Male Solder Type Straight Connector 4 hole flange Socket for Cable Shield

Electrical Characteristics

  • Rated current: 8A/ 20A/28A
  • Contacts resistance: ≤ 3 mΩ
  • Insulation resistance: ≥1010MΩ
  • Rated voltage: 125V/200V/260V/300V
  • Standard: IEC 61076-2-104

Mechanical Characteristics

  • Coupling: thread locking

Environmental Characteristics

  • Ambient temperature: -40°C ~ + 125°C
  • IP rating: IP67

Material:

  • Contacts plating: Gold plated
  • Shell: Copper Alloy
  • Connector contacts: Brass with gold plated
  • Coupling nut/screw: Brass with nickel plated screw
  • Insert: PBT/PA66+GF20%
  • Shielding: Non-Shielded
  • Sealing: Epoxy resin
