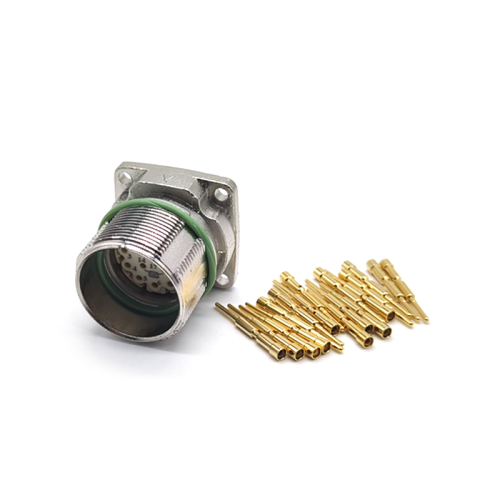

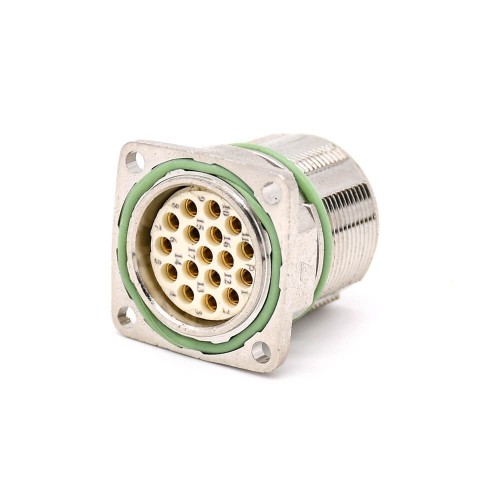

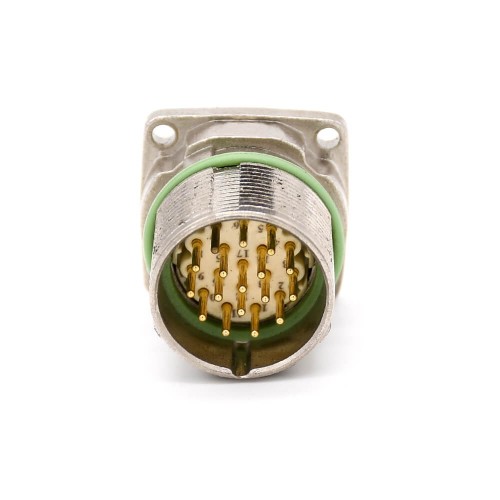

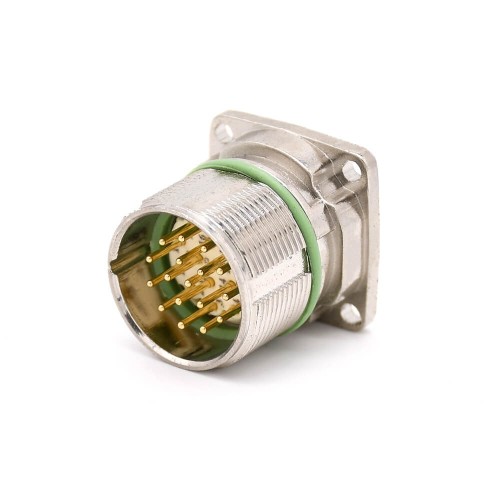

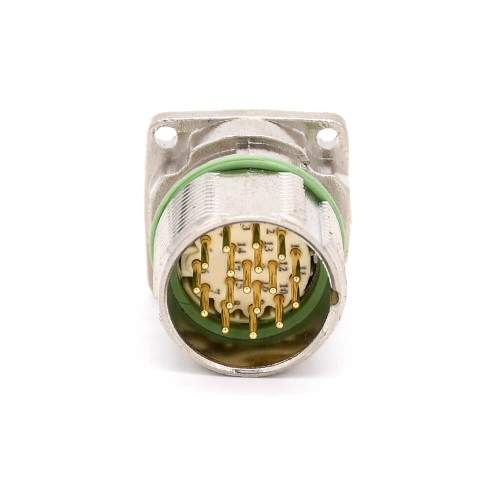

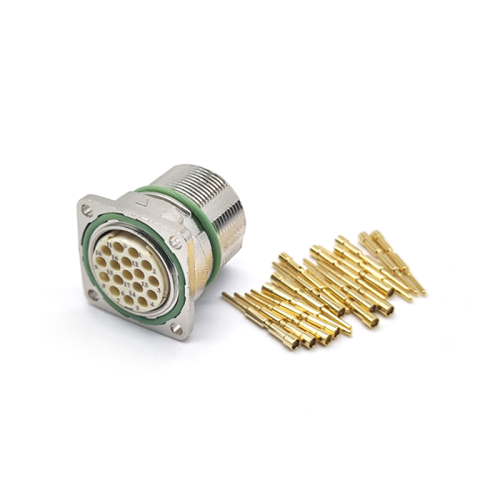

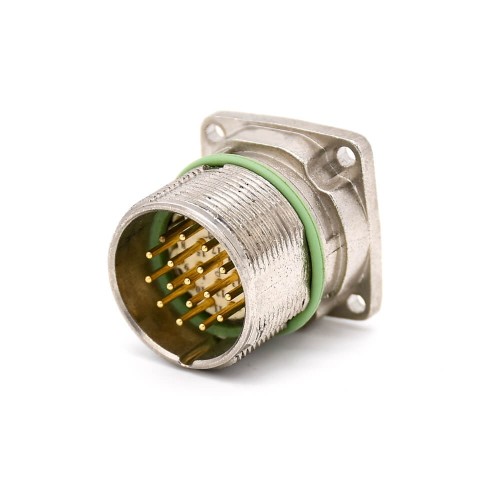

M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable

M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable

Features:

  • M623,17 Pin, Male, Waterproof， Straight, Panel Mount, Crimp Type, 4 Hole Flange， Shield
  • Thread locking mechanism, 23mm metric size,  central lock
  • Easy quick connect and disconnect coupling
  • High Quality with 30 days 100% Money back.
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$21.49
Ex Tax: $21.49
10 or more $19.77
30 or more $18.27
  • Stock: In Stock
  • Model: JE00008123
  • Weight: 37.00g
  • SKU: JE00008123
Products Sold: 0
Product Views: 18
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Crimp Type
Installation characteristics 4 Hole Flange
Gender Male
Shield shielded
Number of Positions 17pin
Direction Straight
Installation method Panel Mount
  • Description

Appliance:

  • Applications
  • ●  Automation
  • ● Transport
  • ● Power generation
  • ● Shipbuilding
  • ● Medicine

Packing Delivery:

M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable

M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable

                                                                Product Parameter
Series M23
Coding A/B/D/C
Connection Type Field Wireable
Number of Contacts 6/7/8/9/12/16/17/19 Pin
Gender Male/Female
Orientation Straight/Angled
Termination Screw-Joint/Solder
Rated Current 8A/ 20A/28A
Rated Voltage 125V/200V/260V/300V
Temperature Range -40°C ~ + 125°C
IP Rating IP67

M623 17 Pin Straight Male Connector 4 Hole Flange Waterproof Connector Shield Crimp Type for Cable
