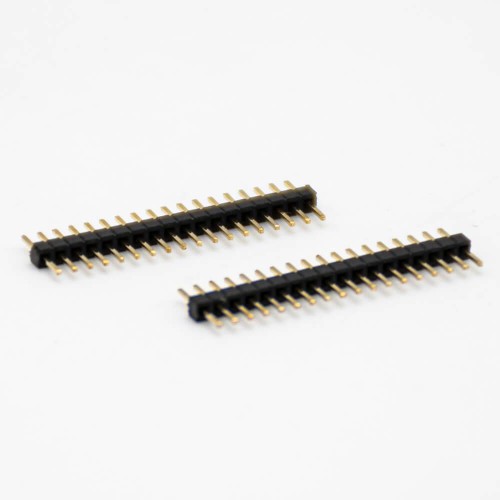

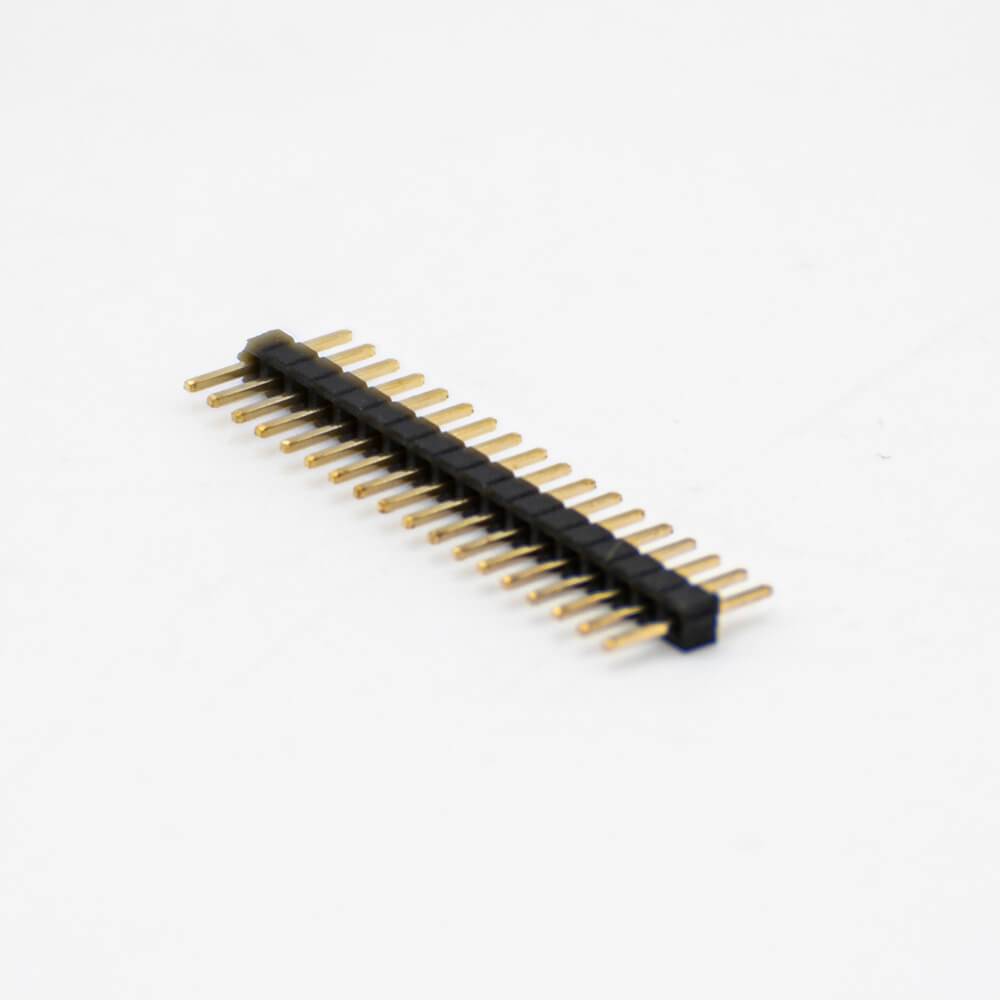

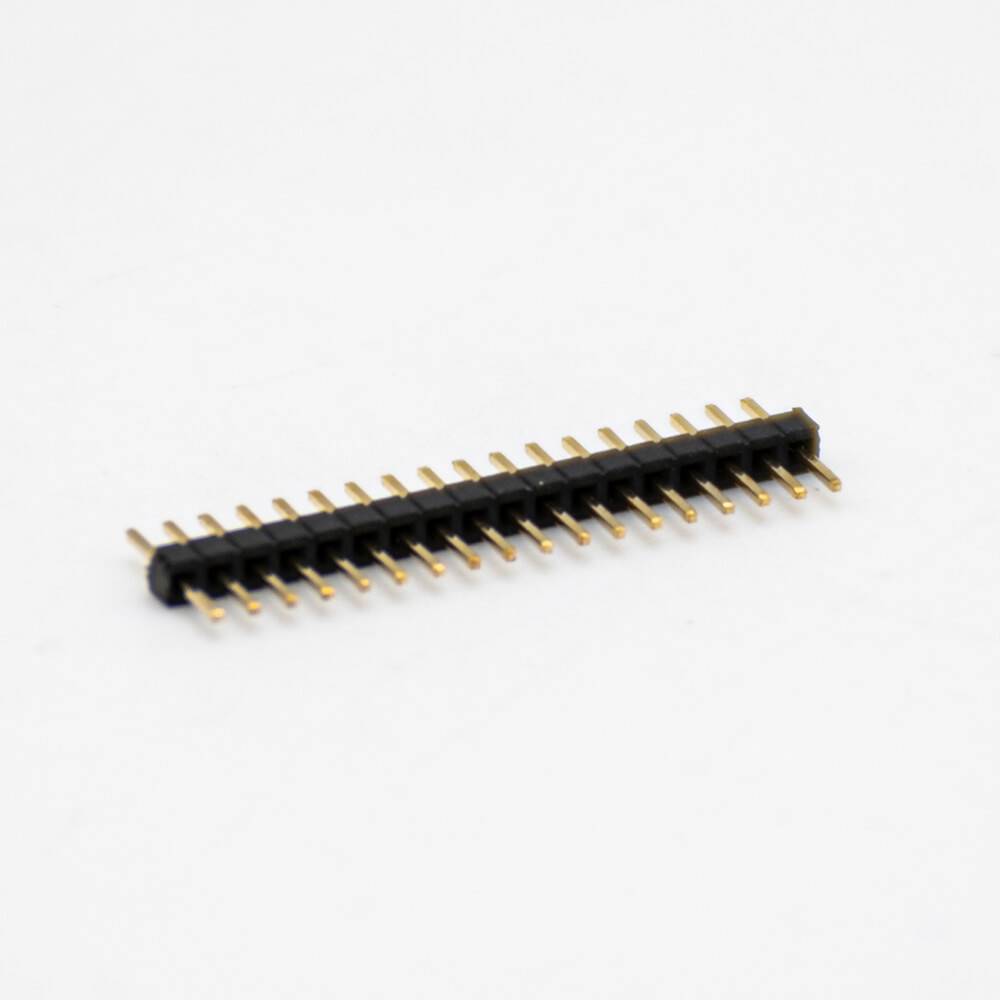

Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch

Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch
Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch

Features:

  • Pin Header Connector,18 Pin,Male,Straight,DIP,1.1MM,Single Row
  • Normally associated with ribbon cable connectors, or worked as recipients for jumpers
  • consists of one or more rows of male pins typically spaced 2.54 millimetres (0.1 in) apart, 5.08 millimetres (0.2 in), 5.00 millimetres (0.197 in), 3.96 millimetres (0.156 in), 2.00 millimetres (0.079 in), 1.27 millimetres (0.05 in) and 1.00 millimetre (0.04 in);
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$0.46
Ex Tax: $0.46
10 or more $0.42
30 or more $0.39
50 or more $0.37
100 or more $0.35
200 or more $0.32
  • Stock: In Stock
  • Model: JE00009473
  • Weight: 0.10g
  • SKU: JE00009473
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Gender Male
Number of Positions 18 pin
Direction Straight
Number of Rows 1
  • Description

Main Application

  • Electronic device
  • Home appliances
  • Electrical instruments
  • Automotive: Car navigation LCD panel and so on.
  • Lighting industry
  • The above applications are typical but not limited, these products are widely use in many fields

Electrical Characteristics

  • Current Rating: 1.5 Amp
  • Insulation Resistance: 1000M ohms min
  • Contact Resistance: 20M ohms max
  • Dielectric Withstanding: AC500V
  • Contact Material: Copper Alloy
  • Insulator Material: PA6T,UL 94V-0 Black

Mechanical characteristics

  • Durability (Gold finish)：300 mating cycles
  • Durability (Tin finish)：50 mating cycles
  • Insertion force：2N max per contact
  • Withdrawal Force：0.3N min per contact

Environmental and Processing

  • Operating Temperature: -40°C to +105°C
  • LCP Suitable For: IR Reflow, Wave, Manual solder

Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch

Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch

Male Pin Header Connector 18 Pin Straight Single Row 1.1MM Pitch

  • Reviews

There are no reviews for this product.
