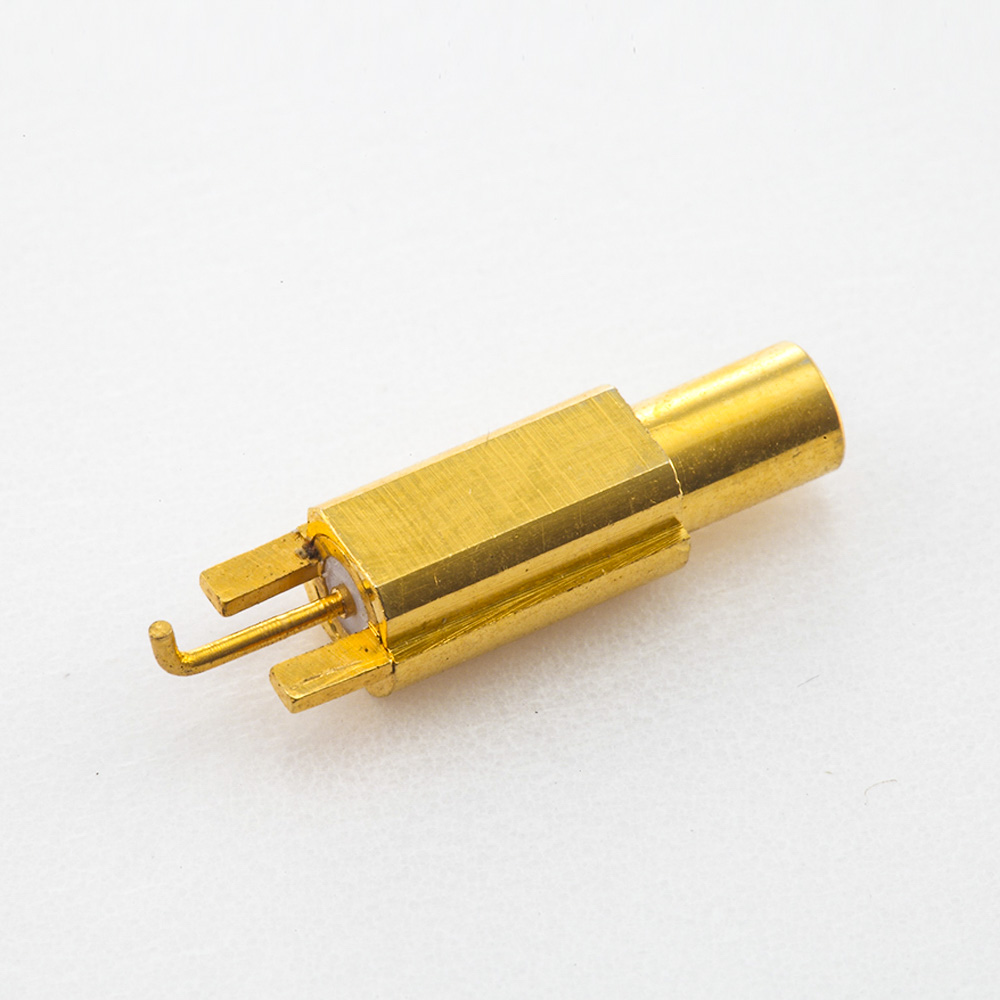

Male SSMB Connector Plug Straight PCB Mount Offset Type

Male SSMB Connector Plug Straight PCB Mount Offset Type
Male SSMB Connector Plug Straight PCB Mount Offset Type

Features:

  • Lightweight and space saving alternative to SMB;
  • Snap-on interface for quick and easy installation;
  • 50 Ohm options available;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$1.50
Ex Tax: $1.50
10 or more $1.38
30 or more $1.28
50 or more $1.20
100 or more $1.13
200 or more $1.05
  • Stock: In Stock
  • Model: JE00003243
  • Weight: 3.00g
  • SKU: JE00003243
Products Sold: 0
Product Views: 3
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Installation characteristics Offset Type
Gender Male
Direction Straight
Polarity Standard
Coating Gold Plating
Impedance 50 Ω
Installation method PCB Mount
  • Description

Appliance:

  • Military
  • Instrumentation
  • PC/LAN
  • Wireless

Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range: DC-  14 GHz
  • Straight DC- 3 GHz:   1.05
  • RF Leakage:  -80 dB to 3 GHz (-70 dB to 6GHz)
  • Power Handling:125 W at 40⁰C

Mechanical Characteristics

  • Engagement Force: 25 N (5.6 lb) typical
  • Disengagement Force: 20 N (4.5 lb) typical
  • Connector Durability: 500 mating cycles min

Environmental Characteristics

  • Temperature Range: -65⁰C to +165⁰C

Material:

PartMaterialFinish
BodyBrassAu:1u"
Center Contact Pin TEFLONWhite
Insulator
PhosphorAu:3u"


Male SSMB Connector Plug Straight PCB Mount Offset Type
