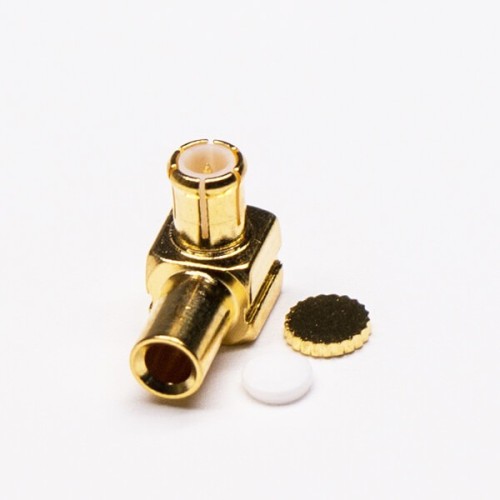

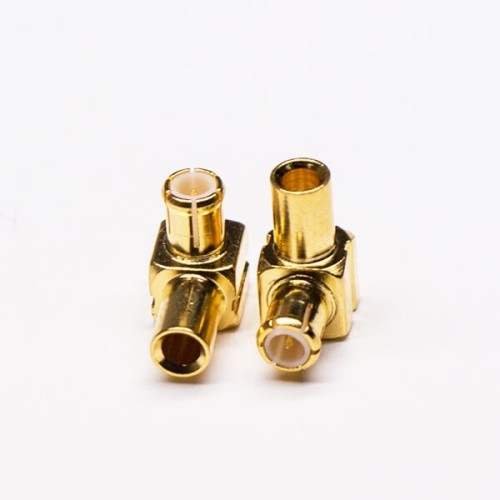

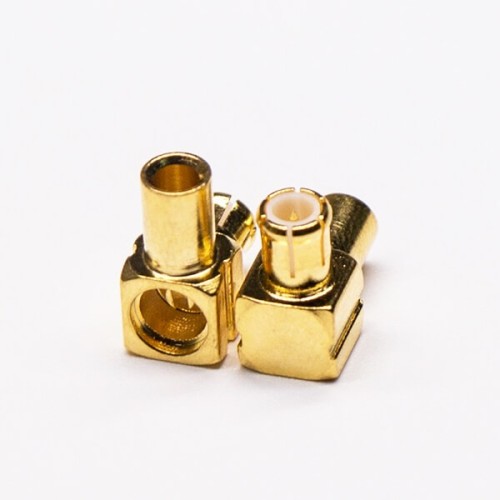

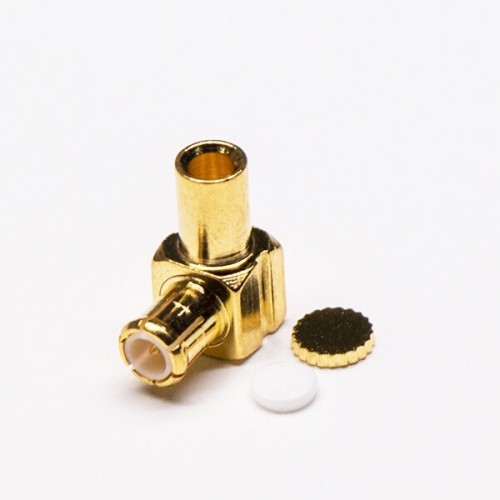

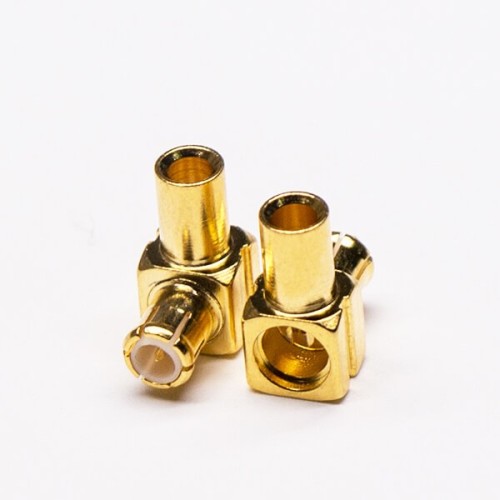

MCX Type Connector Right Angled Male Solder Type for Cable
from
$2.05
Ex Tax: $2.05
10 or more $1.89
30 or more $1.74
50 or more $1.64
100 or more $1.54
200 or more $1.44
- Stock: In Stock
- Model: JE00002678
- Weight: 0.90g
- SKU: JE00002678
Products Sold: 0
Product Views: 10
Ask a Question About This Product
- Description
Main Application of MCX Connectors:
- Consumer Electronic: GPS, HDTV, Wireless Internet TV and Audio, smart phone antenna port,
- Aerospace and Defense: GPS and Hand-held Device
- Technology: Telemetry
- Telecommunications: GPS tracking, positioning and navigation devices, Telecommunications networks, Wireless Base Station, Wireless-LAN
- Data/Communications: Wireless-LAN, Wireless-PAN(bluetooth), Wireless-WAN
- Industrial: Machine to machine communications
Techinial Datasheet:
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: 0-6GHz
- VSWR: Straight type:1.25 max
- Dielectric Withstanding Voltage:1000 V rms
- Working Voltage: <170 V rms
- Center Contact Resistance:5 mohm
- Outer Contact Resistance :≦ 2.5 mohm
- Insultation Resistance:5000 ohms min
Mechanical Characteristics
- Coupling: Snap-on/Snap-off
- Contact Retention: 4 lbs min.
- Mating Durability: ≧500 cycles (For Beryllium Copper Contact)
Environmental Characteristics
- Environmental Characteristics: Teflon -65°C ~ +165°C
- Vibration: MIL-STD-202 Method204
- Corrosion Resistance: MIL-STD-202 Method 101
Material:
| Part | Material | Finish |
| Body | Brass | Au:2u" |
| Center Contact Pin | copper | Au:3u" |
| Insulator | Teflon | White |
