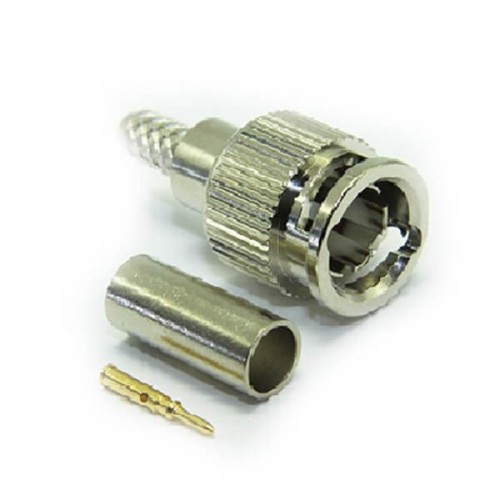

Mini BNC Connector Crimping RG58 RG59 Male Type

Mini BNC Connector Crimping RG58 RG59 Male Type
Mini BNC Connector Crimping RG58 RG59 Male Type

Product features:

  • Mini BNC Connector,Straight/180°, Male Plug,Crimp Cable,75ohm,brass plating nickel;
  • Smaller design versus traditional BNC connectors;
  • Bayonet coupling,Quick and easy connect and disconnect;
  • Good for high-definition video;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

Antennas、Technology Equipment、Automotive (GPS)、Computers/LANs、Mil-Aero、Base Stations、Cable Modems、Instrumentation、Telecom

- Write a review
from
$2.73
Ex Tax: $2.73
10 or more $2.51
30 or more $2.32
50 or more $2.18
100 or more $2.05
200 or more $1.91
  • Stock: In Stock
  • Model: JE00003265
  • Weight: 15.00g
  • SKU: JE00003265
Products Sold: 0
Product Views: 10

Available Options

Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Terminal type Crimp Type
Installation characteristics None
Gender Male
Function Other
Direction Right Angle
Polarity Standard
Coating Nickel Plating
Impedance 75 Ω
Installation method Cable
Outer conductor connection Crimp
  • Description

Mini BNC Connector Crimping RG58 RG59 Male Type

Electrical Characteristics

  • Impedance:75 Ohms
  • Frequency Range:DC-4 GHz (acceptable return loss up to 1 GHz)
  • Return Loss：DC-750 Hz 26.4 dB
    DC-1 GHz 22.6 dB
  • VSWR： DC-750 Hz 1.10 max
    DC-1 GHz 1.16 max
  • Insertion Loss Max：0.10 dB max @ 1 GHz
  • Power Handling: .60kW - 10kW max
  • Insulation Resistance：5000 MΩ

Mechanical Characteristics

  • Engagement Force：≤ 5 lbs (22 N)
  • Disengagement Force：≥ 1.5 lbs (7N)
  • Connector Durability：≥ 500 cycles min

Environmental Characteristics

  • Temperature Range：-45⁰C to +85⁰C

Material:

PartMaterialFinish
BodyBrassNickel(Ni)
Center Contact PinBrassGold
InsulatorTeflonWhite
