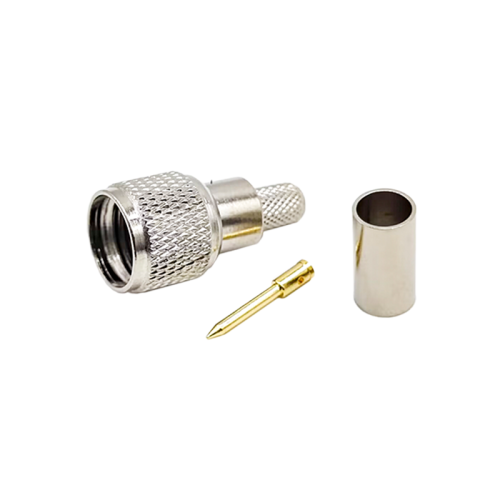

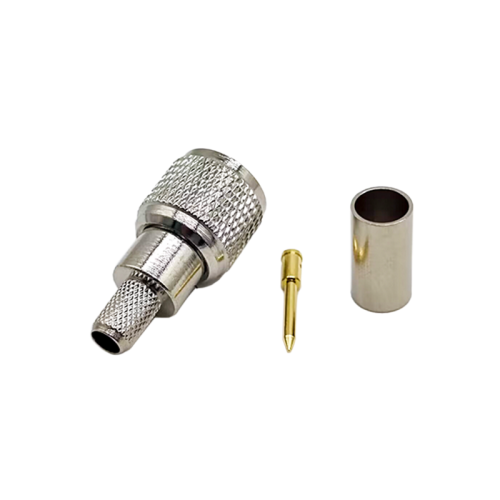

Mini UHF Plug Male Crimp Nickel Plated Coaxial Connector for Cable RG142 RG58

Applications:

• Antennas, Military, Public Address Systems and Low-frequency applications

Electrical Characteristics

• Impedance：Non-constant
• Frequency Range: 0~300MHz
• voltage Rating: 500 volts peak

Mechanical Characteristics

• Coupling: 5/8-24 threaded coupling
• Cable Affixment: Braid Solder, Set screw, clamp and crimp
• Durability(mating) ≧ 500 cycles (For Beryllium Copper Contact)

Environmental Characteristics

• Temprature Range:
  Mica-filled phenolic insulators: -55°C ~ +149°C
  Copolymer of styrene and polystyrene: -55°C ~ +85°C
  TFE insulators: -65°C ~ +165°C
• Weatherproof: Except as noted, all UHF series are non-weatherproof

Material:

• Material: nickel-plated copper, gold-plated
• Conductor: Gold-plated copper
• Impedance: 50 ohms
