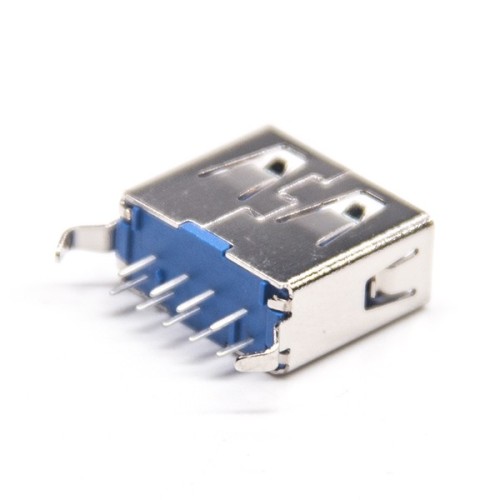

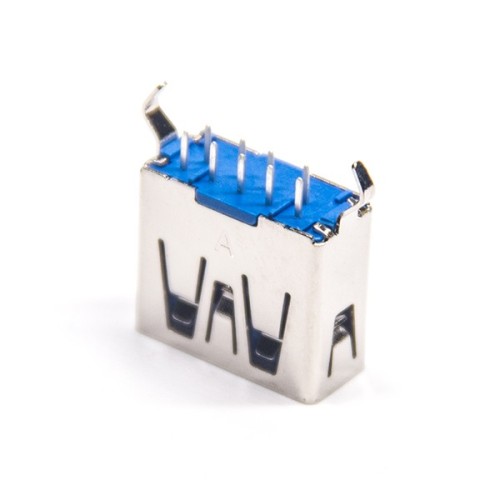

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through

Features:

  • USB connector,Type A Connector ,USB 3.0,9p,female,180 degree,through hole,PCB
  • Capable of transferring data up to 5Gb/s;
  • Full metal shielding;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$0.63
Ex Tax: $0.63
  • Stock: In Stock
  • Model: JE00005612
  • Weight: 2.00g
  • SKU: JE00005612
Products Sold: 0
Product Views: 13
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Solder Type
Installation characteristics Through Hole
Connector Type Type A
Gender Female
Number of Positions 9 pin
Direction Straight
Waterproof level Not Waterproof
Port number Single
Standard USB 3.0
Installation method PCB Mount
  • Description

Applications:

  • Desktop Computer and Motherboard
  • Notebook
  • Memory Card Reader
  • Set top box
  • Consumer Solid State Drives
  • LCD TV Panel
  • Music Synthesizer

Electrical Characteristics

  • Contact Resistance:30Ω Maximum
  • Contact Current Rating:1.50A
  • Dielectric Withstanding Voltage:100V R.M.S
  • Insulation Resistance 1000 Megohms Min
  • Operating Temperoture:-45°C ~ +80°C

Mechanical Characteristics

  • Mating Force:3.57kg Max
  • Unmating Force:1.02kg Min

Environmental Characteristics

  • Operating Temperature：-45°C~ + 85°C

Material:

PartMaterialFinish
Housing High Temperature PolymerUL94V-0
ShellStainless Steel------
ContactCopper Alloy
------

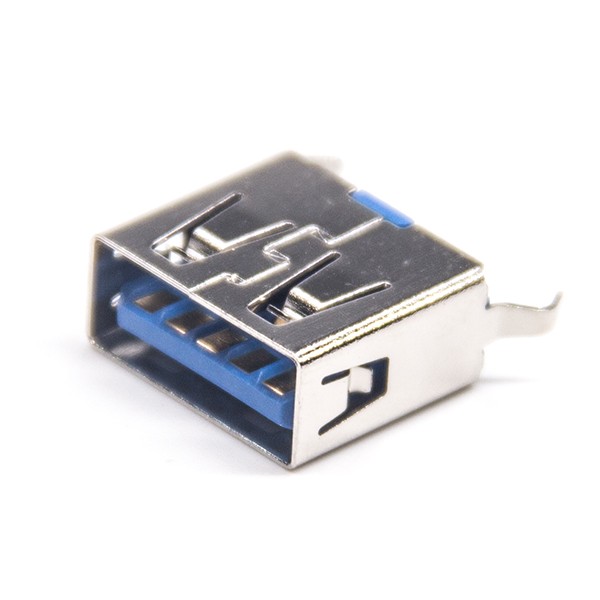

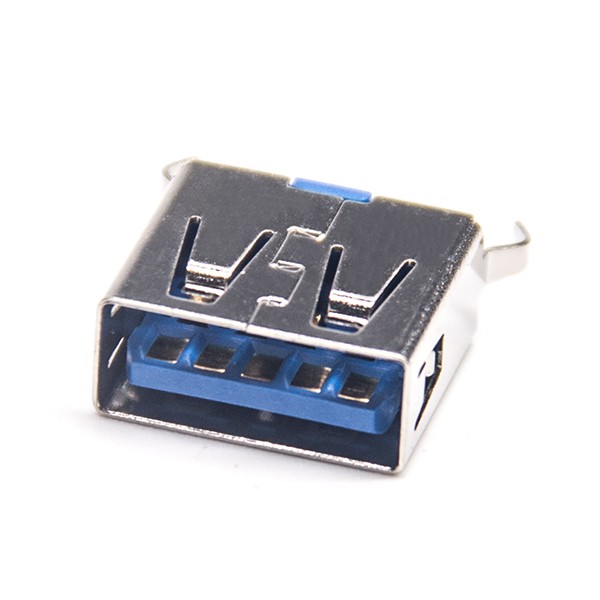

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through

Motherboard USB 3.0 Connector Female Type 9p Straight Type with Hole Through
