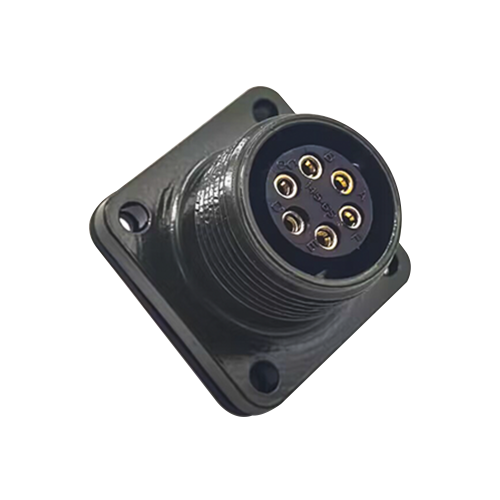

MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector

MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector
MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector

Product features:

  • MS3102A14S-6S,Box Receptacle,Class A,Size 14S,6 *16 Solder Pin Contact,Olive Drab
  • Meduim to heavy weight cylindrical;
  • Durable,field-proven design;
  • Environmental resistant;
  • Resilient inserts;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$11.25
Ex Tax: $11.25
10 or more $10.35
30 or more $9.56
50 or more $9.00
  • Stock: In Stock
  • Model: JE00004507
  • Weight: 25.00g
  • SKU: JE00004507
Products Sold: 0
Product Views: 15
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Aluminum Alloy
Terminal type Solder Type
Installation characteristics 4 Hole Flange
Connector Type Socket
Gender Female
Number of Positions 6 pin
Direction Straight
Docking method Thread Coupling
Coating Olive Drab Cadmium
Installation method Panel Mount
  • Description

MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector


MS3102A14S-6S MIL-DTL-5015 Series Box Mount Receptacle 6 Contacts Solder Socket Female Circular Connector

Electrical Characteristics

  • Shock: 490 m/s2
  • Relative humility: 95+-4% at 40℃
  • Insulation resistance: 5,000 Mega ohms minimum (at 25°C)
  • Frequency Range: 10-2000Hz/147m/s2
  • Voltage Rating: 500VAC 700VDC

Mechanical Characteristics

  • Mating Type: threaded coupling
  • Termination : Solder
  • Durability(mating) ≧ 500 cycles

Environmental Characteristics

  • Temprature Range:  -55°C ~ +125°C

Material:

Part Material Finish
Body Aluminum alloy Olive drab chromate
Center Contact Pin Brass Gold
Insulator Synthetic Rubber -

  • Reviews

There are no reviews for this product.
