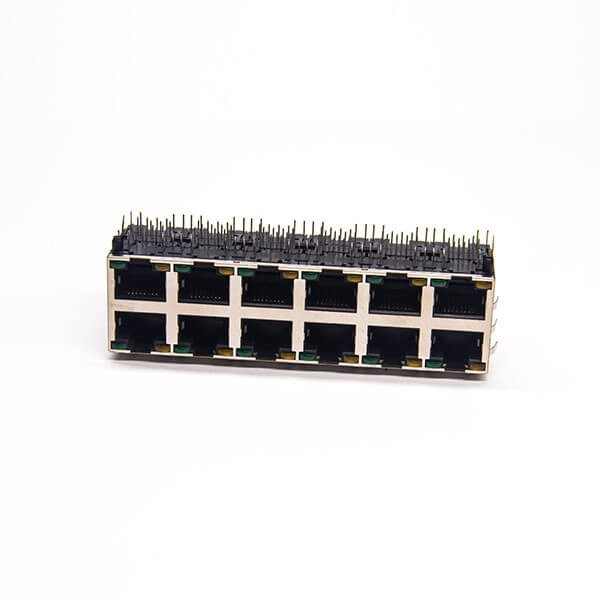

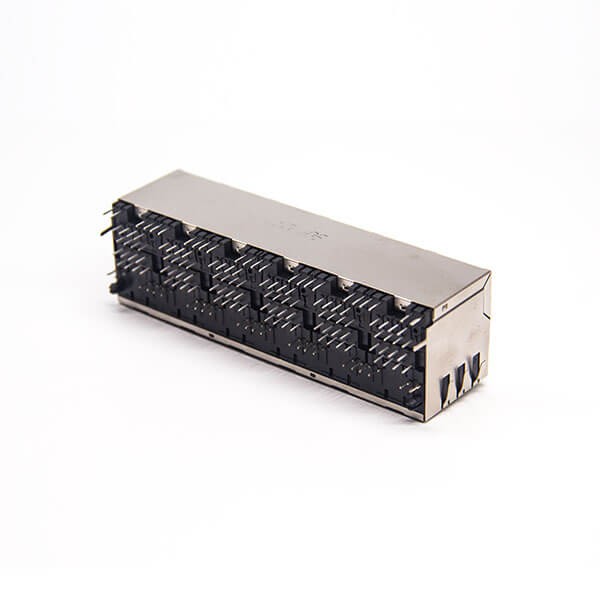

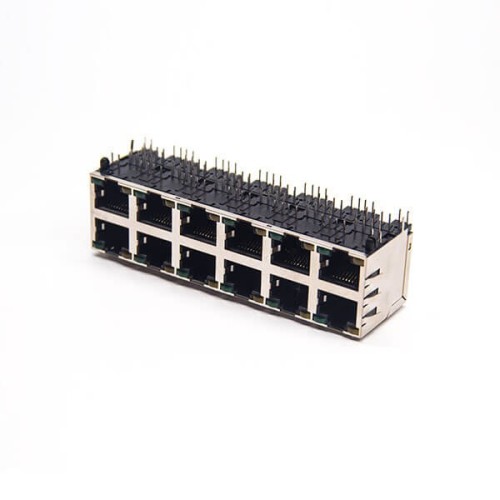

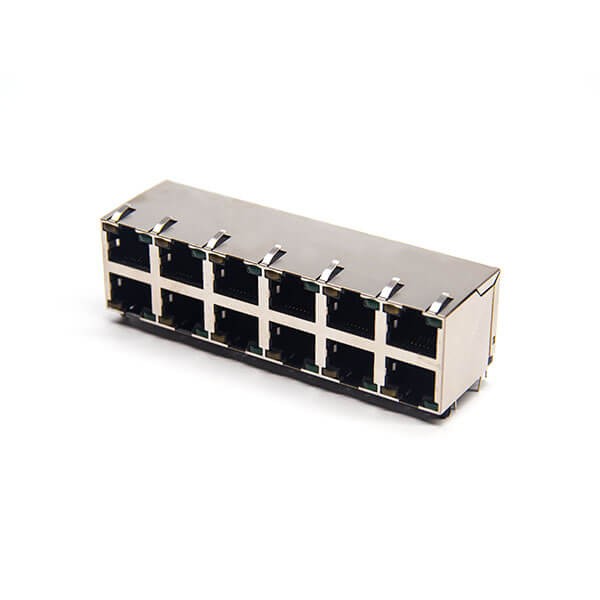

Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs

Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs
Multi Port RJ45 2x6 Right Angled 8p8c Network Shielded Jack Through Hole 5pcs

Features:

  • RJ45 Jack,8P8C,12 Port,2*6,Angled,Gold,Through Hole,PCB Mount,Shielded,with LED,without Filtered
  • Comprehensive range for all application needs;
  • Stackable side by side design;
  • Supports wide variety of low-speed networking applications;
  • Supports high-speed Gigabit Ethernet applications;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.
- Write a review
from
$59.33
Ex Tax: $59.33
  • Stock: In Stock
  • Model: JE00006110
  • Weight: 74.45g
  • SKU: JE00006110
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Terminal type Through Hole
Connector Type Socket
Shield shielded
Number of contacts 8p8c
Continuous plating Gold
Direction Right Angle
LED Yes
Number of Rows 2×6
Filter No
Waterproof level Not Waterproof
Port number 12
Installation method PCB Mount
  • Description

Applications:

  • Routers
  • Ethernet switches
  • ATMs
  • Point of sales terminals
  • Vending machines
  • Set-top boxes
  • Technology analysis equipment
  • Laptops
  • Phone line security systems

Electrical Characteristics

  • Current rating: 3A continuous
  • Insulation resistance: 500MΩ min.
  • Dielectric withstanding voltage: 1500V min.
  • Voltage rating 1000V rms

Mechanical Characteristics

  • Mating force: 5N to 20N
  • Unmating force: 8N to 20N
  • Durability:10,000 mating cycles

Environmental Characteristics

  • Operating Temperature: -40°C~ + 120°C

Material:

PartMaterialFinish
HousingNylon 46 glass filledUL94V-0
ShieldCopper AlloyNickel Plating
ContactCopper AlloyAu over nickel
