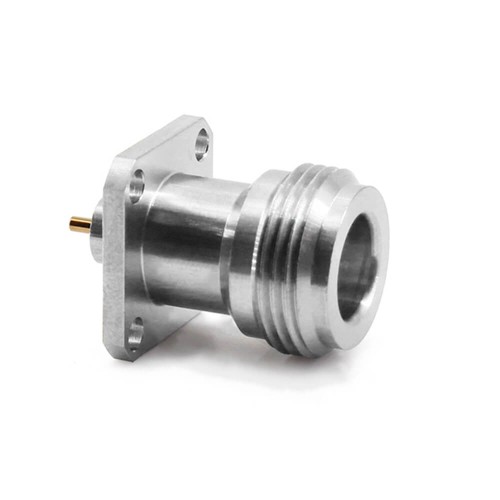

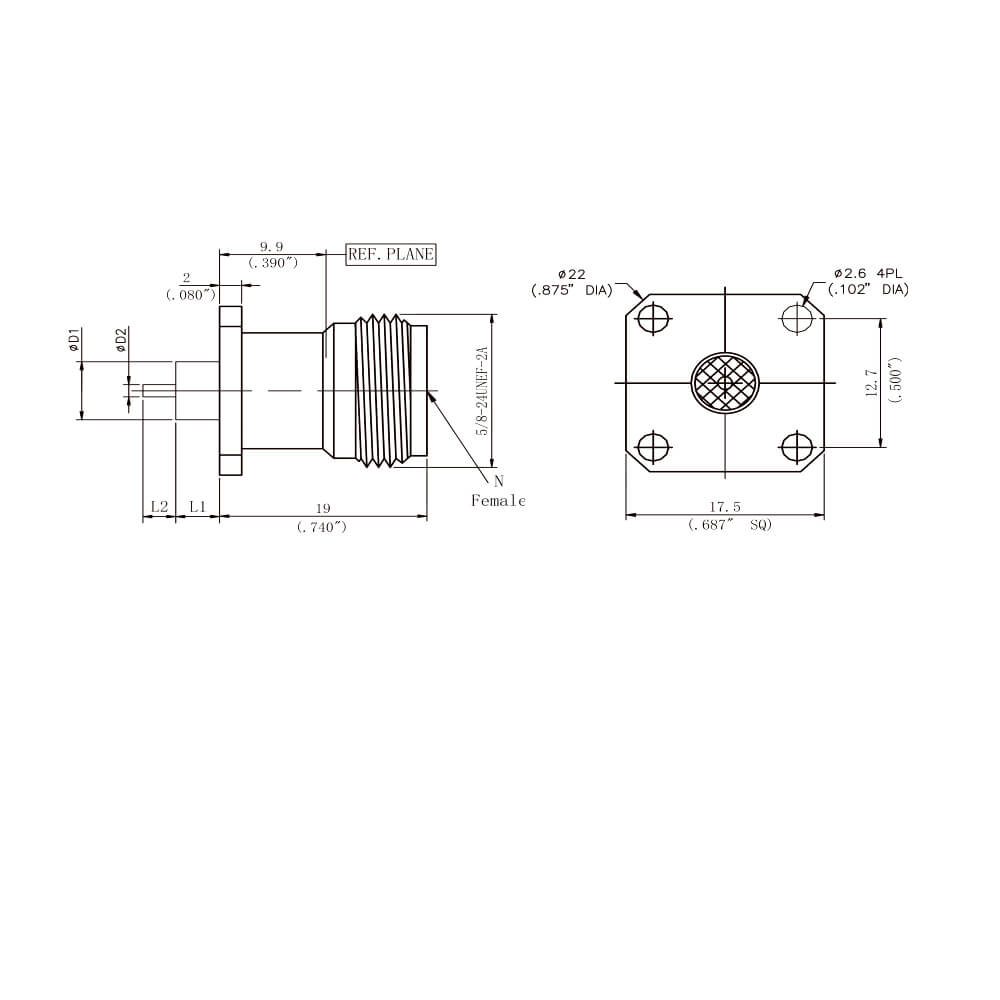

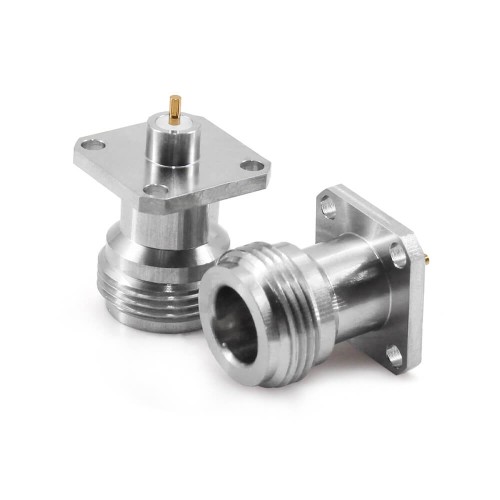

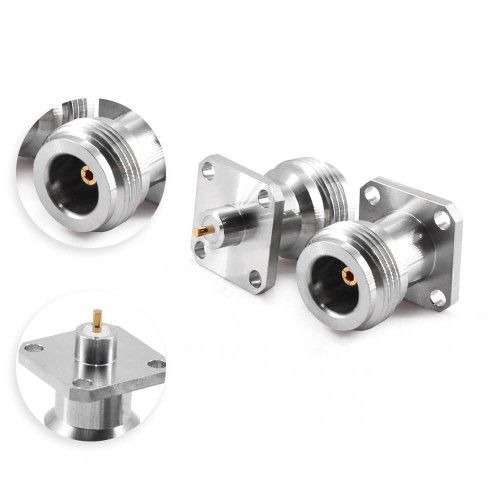

N-Kfd Female 18Ghz 4-hole Flange Bulkhead Pcb Mount Sloder High Frequency Rf Coax Connector

                              4 ～ 8GHz：1.06 max.

                               8 ～ 18GHz：1.10 max.

Appliance:

• Test and measurement systems
• Network routers and switches
• RFID
• Instrumentation test fixtures equipment
• Semiconductor ATE test boards
• Radar systems

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range:DC to 18  GHz
• Rated Voltage:500VAC(r.m.s.)
• Insulation Resistance:1000M Ω (min.) at 500V DC
• Contact Resistance:3m Ω（max.)
• Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

• Mating Torque:5 - 7 in - lbs
• Connector Durability：500 mating cycles min

Environmental Characteristics

•  Temperature Range：-40 〜 +85℃

Material:
