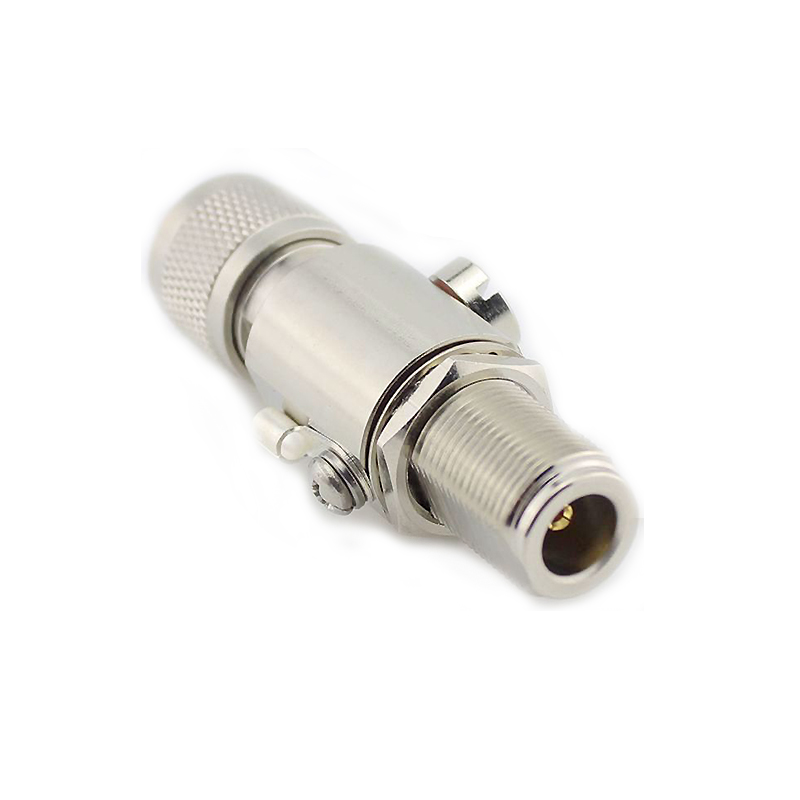

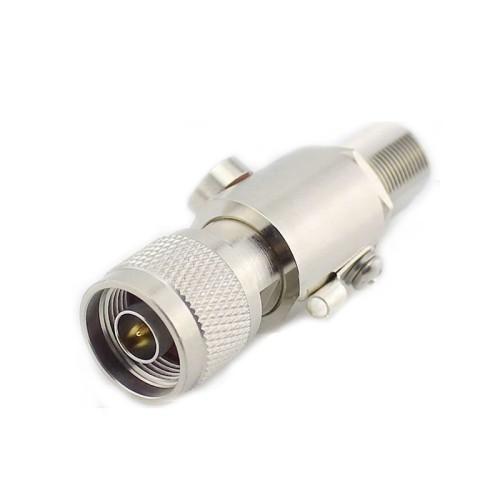

N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V

N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
  • Medium size used in military, industry or consumption electronic area, etc;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.







Electrical
Characteristic Impedance50ohm
Dielectric Resistance  ≥5000 MΩ
Frequency Range  DC-6GHz
VSWR       ≤1.20@DC-6GHz
Insertion Loss≤0.18dB
DC Breakdown Voltage 230±20%(@100v/s)
AC Discharge Current 5A(50Hz)
Surge Discharge Current  5KA(8/20μs)
Peak RF Power   <200W
Maximum Withstand Current 20KA
Material and Plating
Parts NameMaterialPlating (Finish)
Body(Housing)BrassNi
InsulatorPTFE—
Center conductorPhosphor Bronze Au
Gasket (Sealing)     Silicon rubber—
Coupling NutBrassNi
Sealing nut  BrassNi
Grounding lug BrassNi
Hardware kit  Stainless steel _
Environmental
Operating Temperature -45℃~+85℃
Working Humidity  <85℃/85% RH-48hrs
Waterproof Rate    IP 67
RoHS Compliant   Yes
Notes: Hardware kit includes : bolt and lock washer.

- Write a review
from
$9.75
Ex Tax: $9.75
10 or more $8.97
30 or more $8.29
50 or more $7.80
100 or more $7.31
  • Stock: In Stock
  • Model: JE00002055
  • Weight: 40.00g
  • SKU: JE00002055
Products Sold: 0
Product Views: 9
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Cooper
Gender Male to Female
Direction Straight
Polarity Standard
Coating Nickel Plating
  • Description

N Type Surge Arrester N male to N female Bulkhead RF Coaxial Connector Port DC-6GHz 230V
