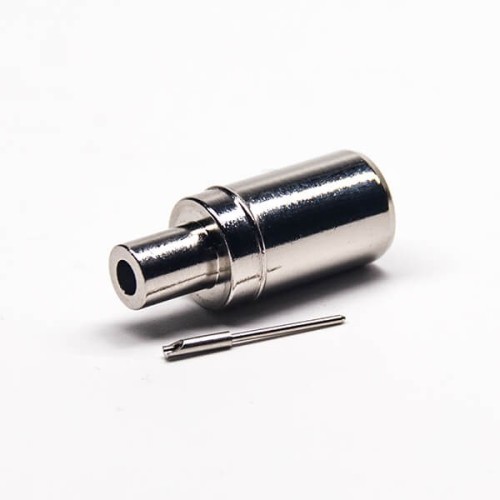

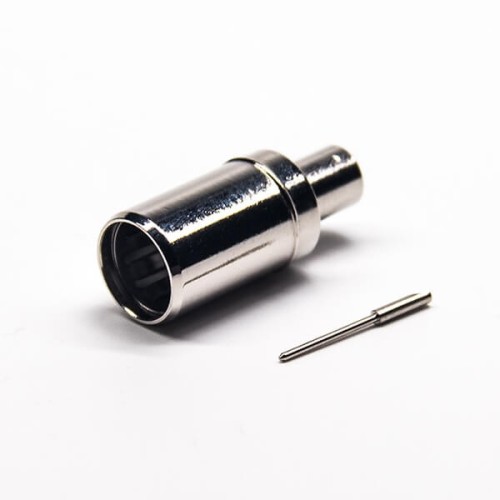

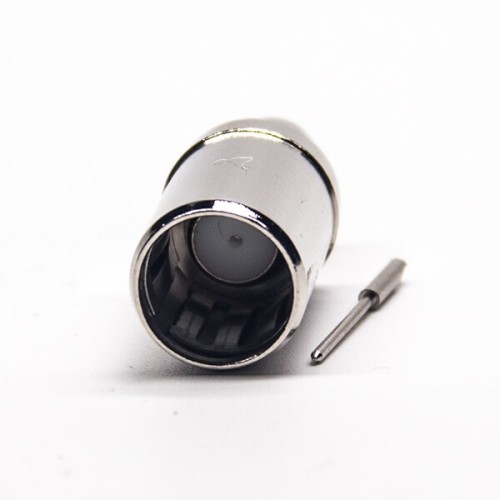

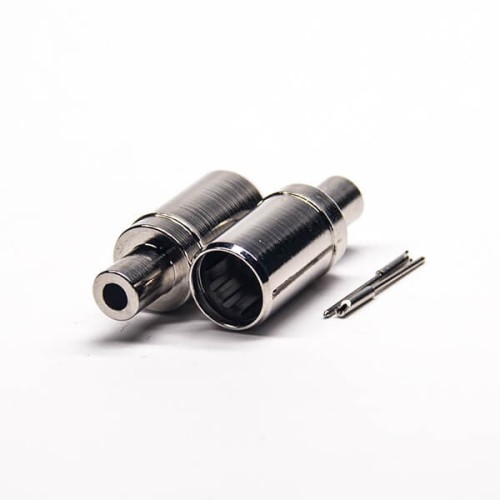

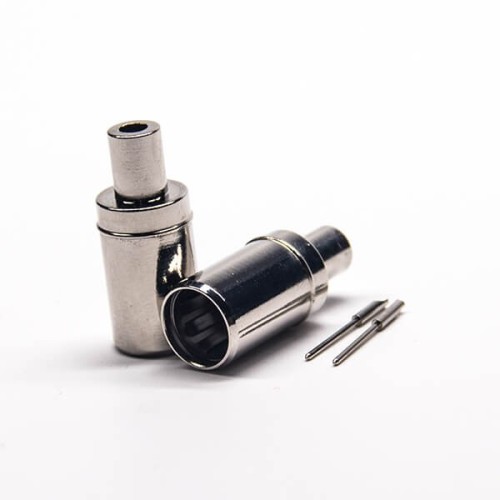

PAL Type Connector Straight Male Solder Type for Cable
from
$3.05
Ex Tax: $3.05
10 or more $2.81
30 or more $2.59
50 or more $2.44
100 or more $2.29
200 or more $2.14
- Stock: In Stock
- Model: JE00003269
- Weight: 1.80g
- SKU: JE00003269
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Electrical Characteristics
- Impedance：75 ohm
- Frequency Range: 0~3Ghz
- VSWR: Straight type ≦ 1.2max / R/A type ≦ 1.3max
- Withstanding Voltage: 500 V rms
- Working Voltage: 170 V rms
- Center Contact Resistance ≦ 10 mΩ
- Outer Contact Resistance ≦ 5 mΩ
- Insultation Resistance ≧ 1000 mΩ
- RF Leakage -100dB min @1GHz
Mechanical Characteristics
- Coupling: 3/8-32 thread
- Cable Retention: 20 lbs min.
- Durability(mating) ≧ 500 cycles
Environmental Characteristics
- Temprature Range: -40°C ~ +60°C
Material:
| Part | Material | Finish |
| Body | ZINC NI:80-120u" | NI:80-120u" |
| Center Contact Pin | phosphor | SN |
| Insulator | PP | White |
