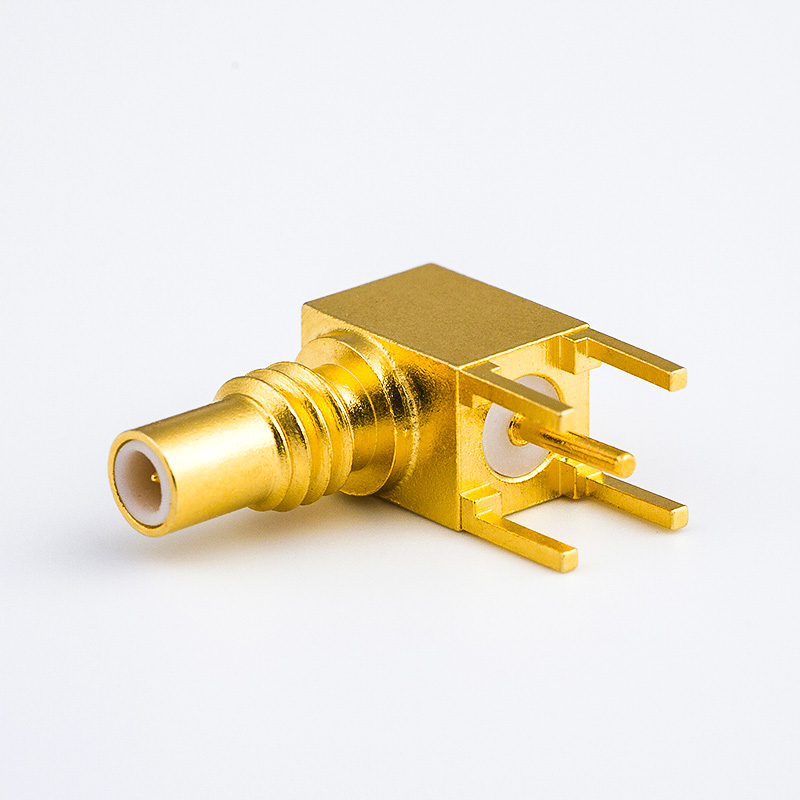

PCB Mount SSMC Connector Male Right Angle Through Hole Type
from
$2.33
Ex Tax: $2.33
10 or more $2.15
30 or more $1.98
50 or more $1.87
100 or more $1.75
200 or more $1.63
- Stock: In Stock
- Model: JE00003512
- SKU: JE00003512
Products Sold: 0
Product Views: 14
Ask a Question About This Product
- Description
Appliance:
- Civil Aviation
- Military aerospace and missile
Electrical Characteristics
- Impedance：50 ohm
- Frequency Range: DC- 11 GHz
- Rated voltage : 250VRMS
- Voltage resistance : 250 Vmax ( effective value )
- VSWR :Straight type DC～1GHz ≤ 1.15; 1～3GHz ≤ 1.25/ R/A type DC～1GHz ≤ 1.20; 1～3GHz ≤ 1.35
- Contact resistance : inner conductor : ≤ 5.0 mΩ /outer conductor : ≤ 2.5 mΩ
- Insultation Resistance; ≧ 1000 mΩ
Mechanical Characteristics
- durability : 500 times（cycles）
Environmental Characteristics
- Temperature Range: -55⁰C to +155⁰C
- Vibration : 98m / s2 ( acceleration 10g ) 10 ~ 500Hz
Material:
| Body | brass | hard gold plating | |
| pin | gun metal | hard gold plating | |
| hole | beryllium bronze | hard gold plating | |
| insulator | PTFE | ------ | |
| pressure sleeve | copper alloy | hard gold plating | |
Note : The parameters are only for reference. If there are special requirements for the parameters, please contact us for confirmation.
