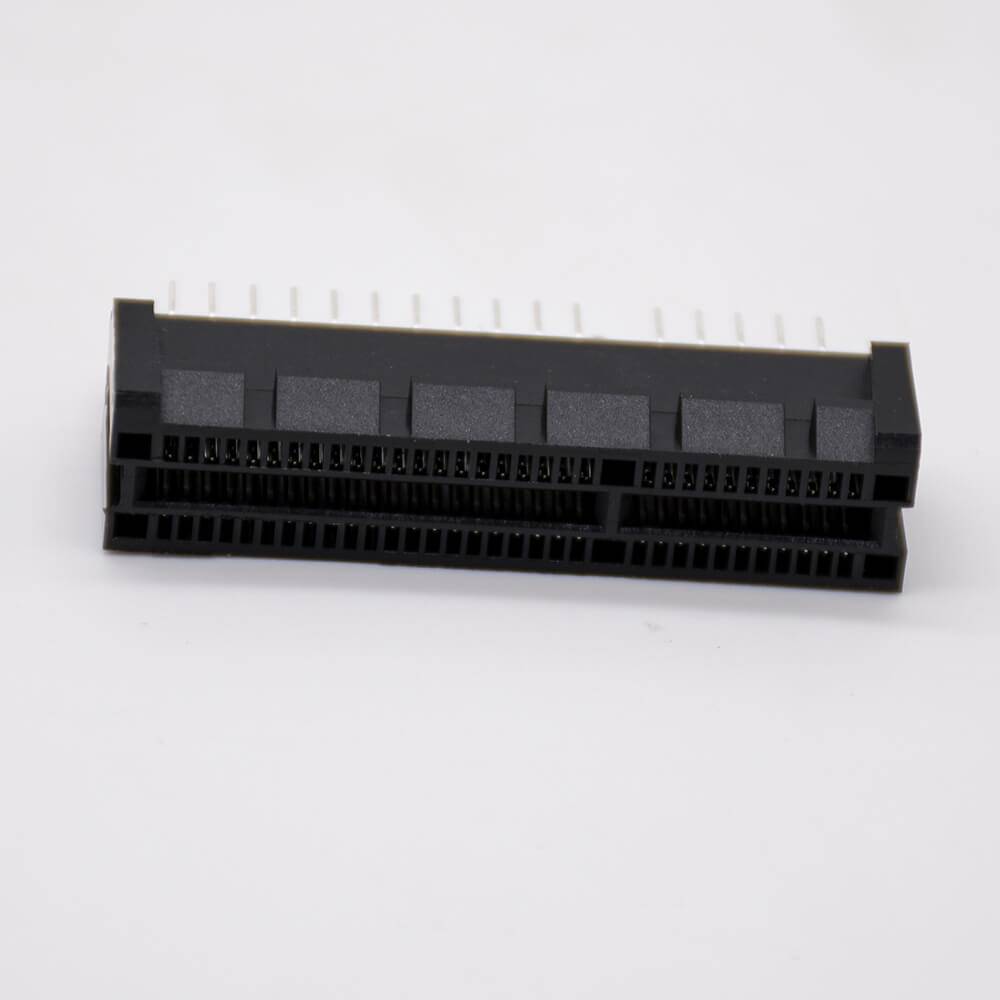

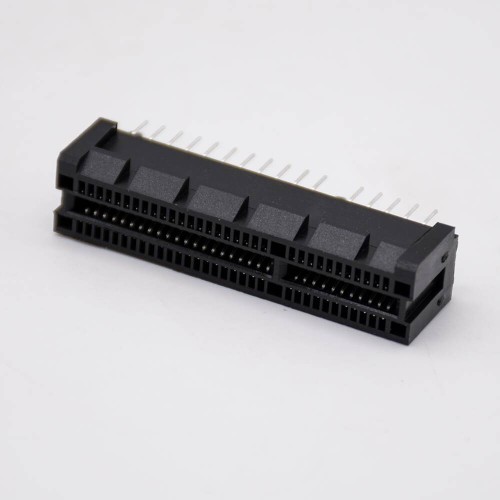

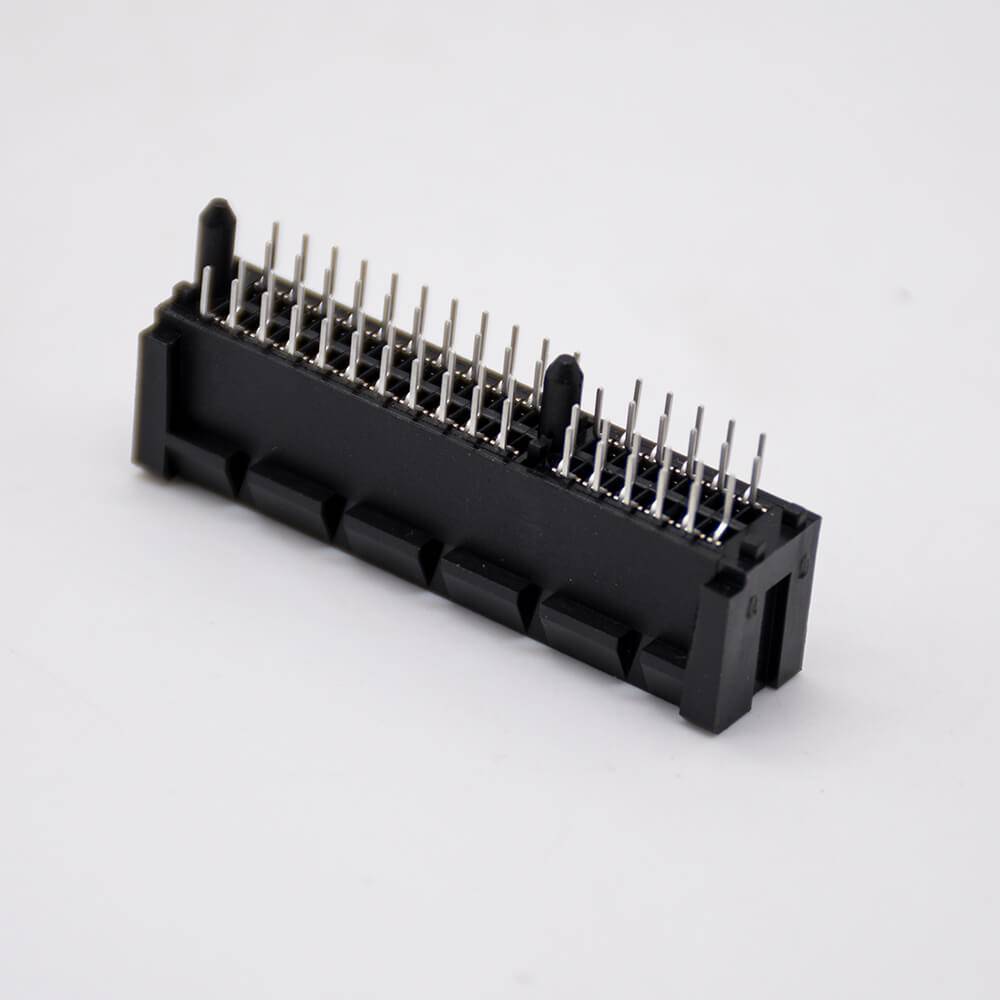

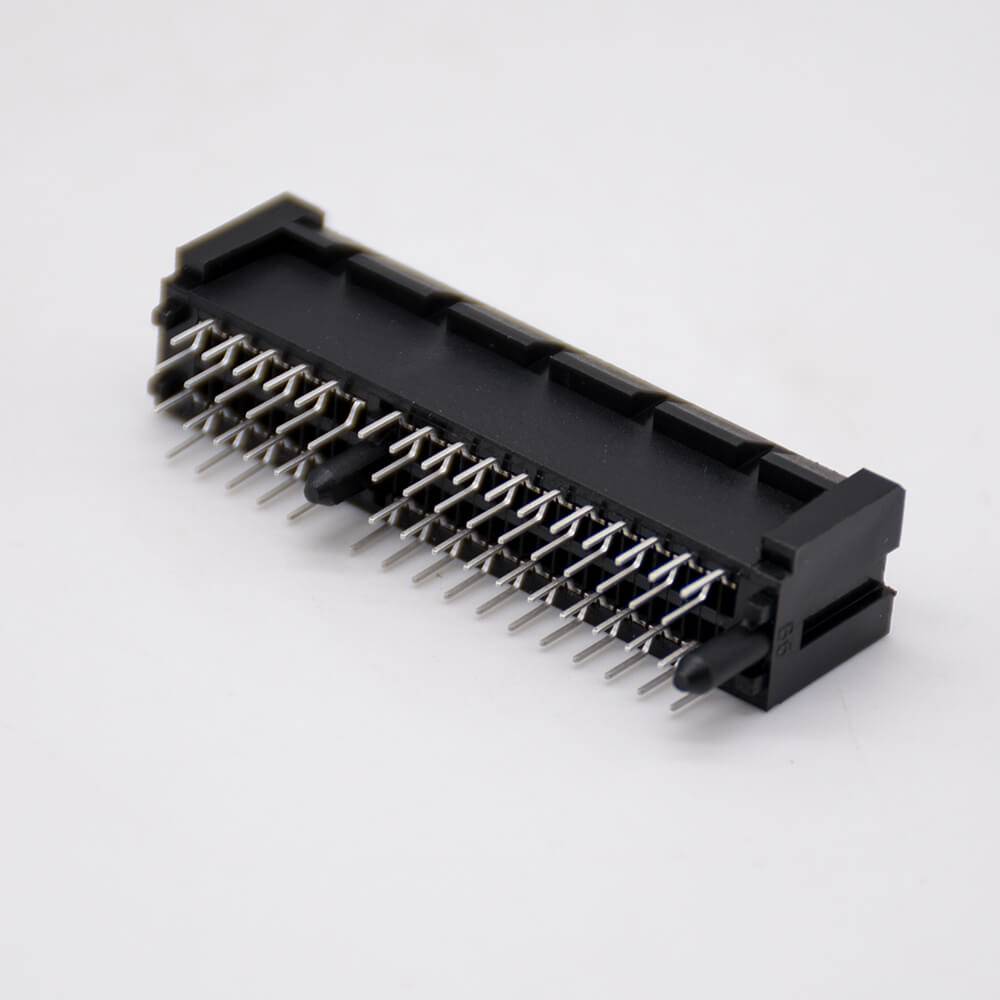

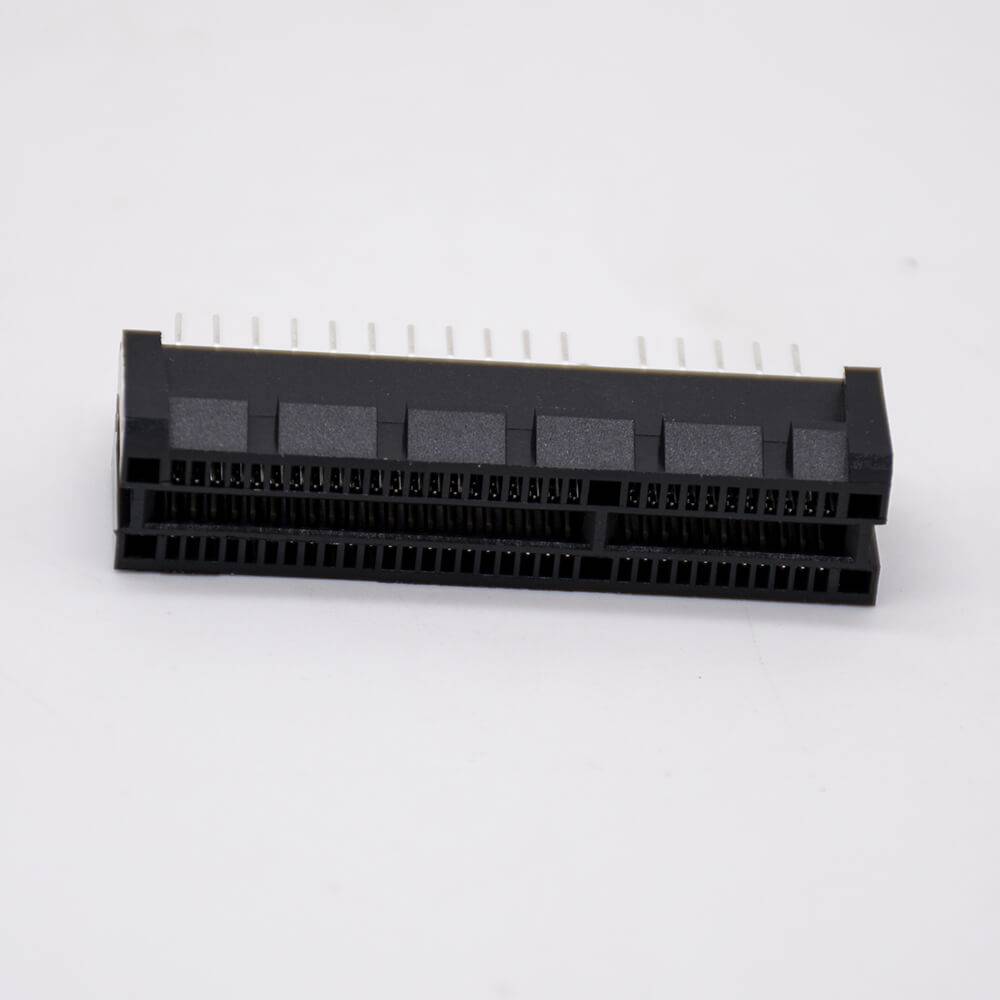

PCIE 4X Connector PCI-E64P Splint Slot Black Graphics Card Connector
from
$0.50
Ex Tax: $0.50
10 or more $0.46
30 or more $0.43
50 or more $0.40
100 or more $0.38
200 or more $0.35
- Stock: In Stock
- Model: JE00009774
- Weight: 3.30g
- SKU: JE00009774
Products Sold: 0
Product Views: 4
Ask a Question About This Product
- Description
Main Application
- Memory card for computer or communication equipment
- Visual equipment
- Wi-Fi
- Bluetooth
- GPS
- Solid State Storage Device (SSD)
- Global Navigation Satellite System (GNSS)
- Near Field Communication (NFC)
- Hybrid Digital Broadcast (HDR)
Electrical Characteristics
- Withstand voltage: 500Vr.m.s, 1mA, 60s
- Insulation resistance: ≥1000MΩ
- Contact resistance: ≤30MΩ
Mechanical characteristics
- Insertion force: ≤1.15N/pair of pins
- Pull-out force: ≥0.15N/pair of pins
- Mechanical life: 50 times
Environmental and Processing
- Working temperature: -40°C~+100°C
- Humidity: ≤93% (at 40^C)
- Resistance to welding heat: 265°C+5°C, 10s
Material
- Colloid: PBT+30%GF, UL94V-2
- Pin material and plating: brass, contact area Au, solder area Sn 3~5μm
