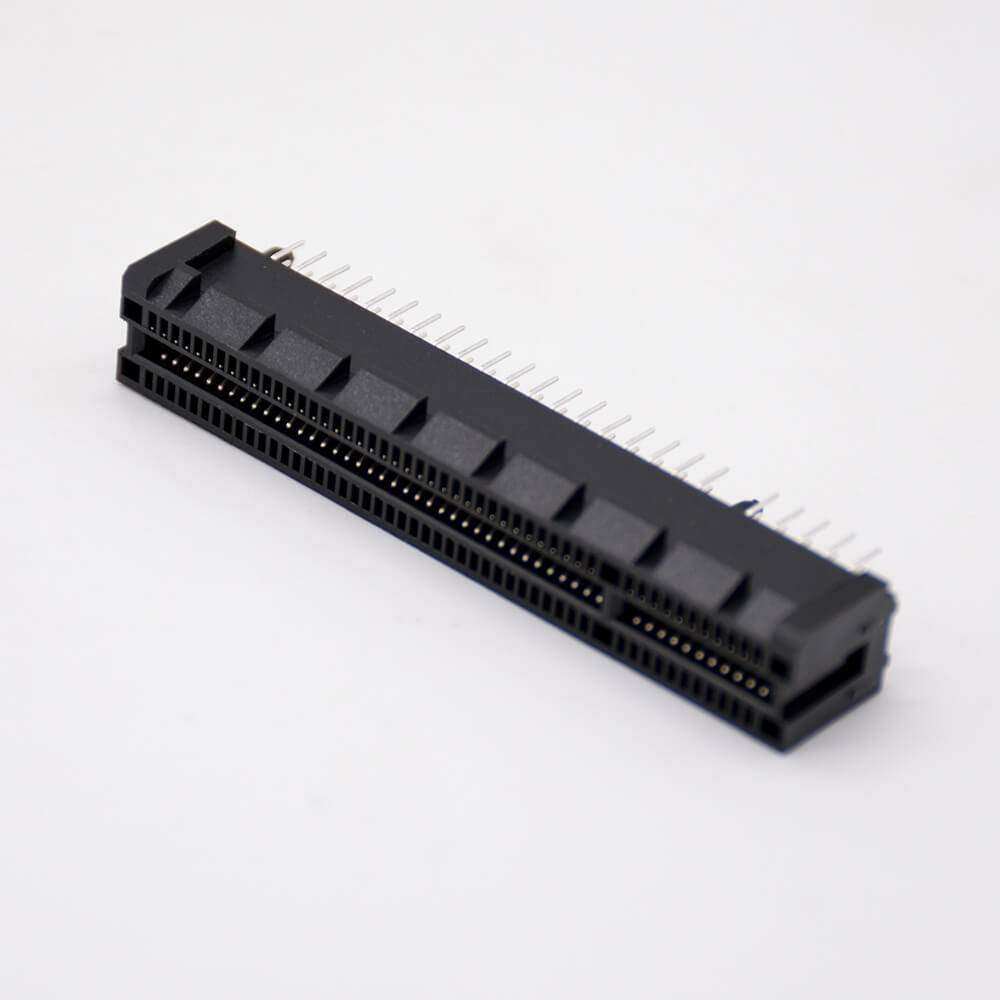

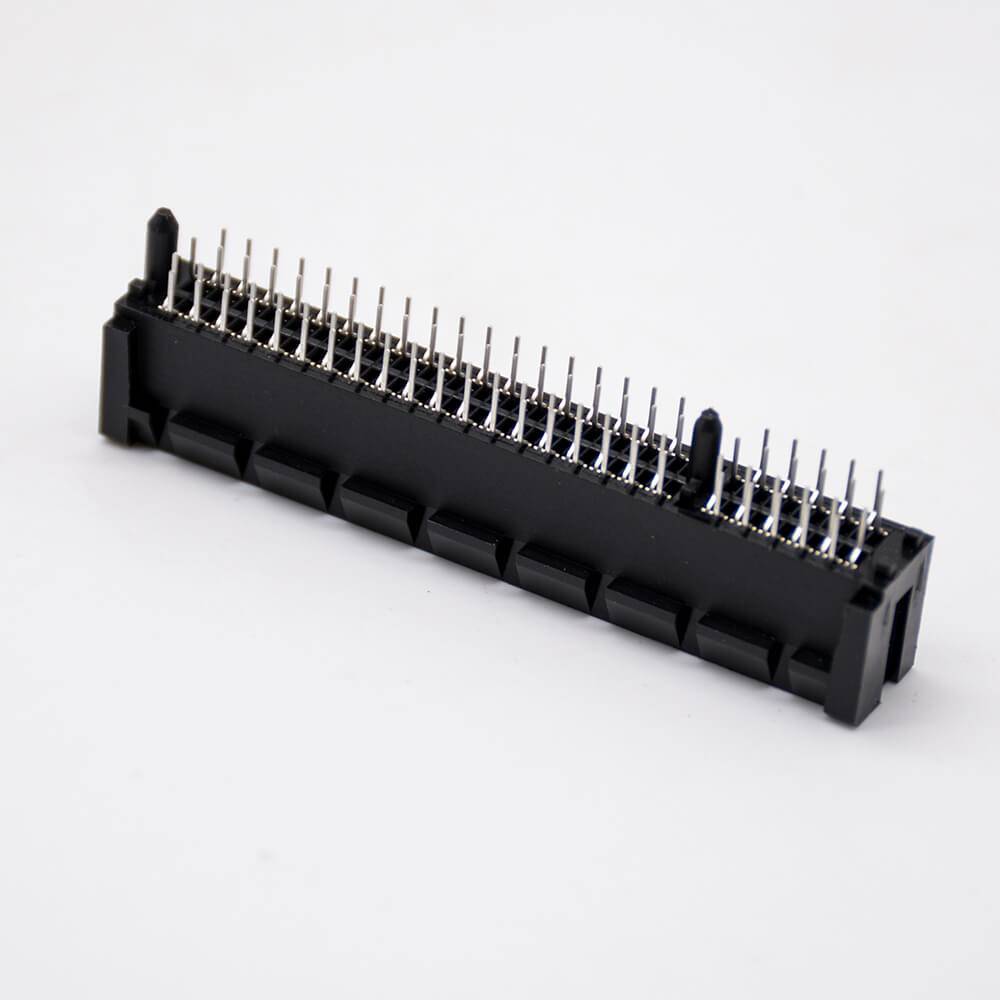

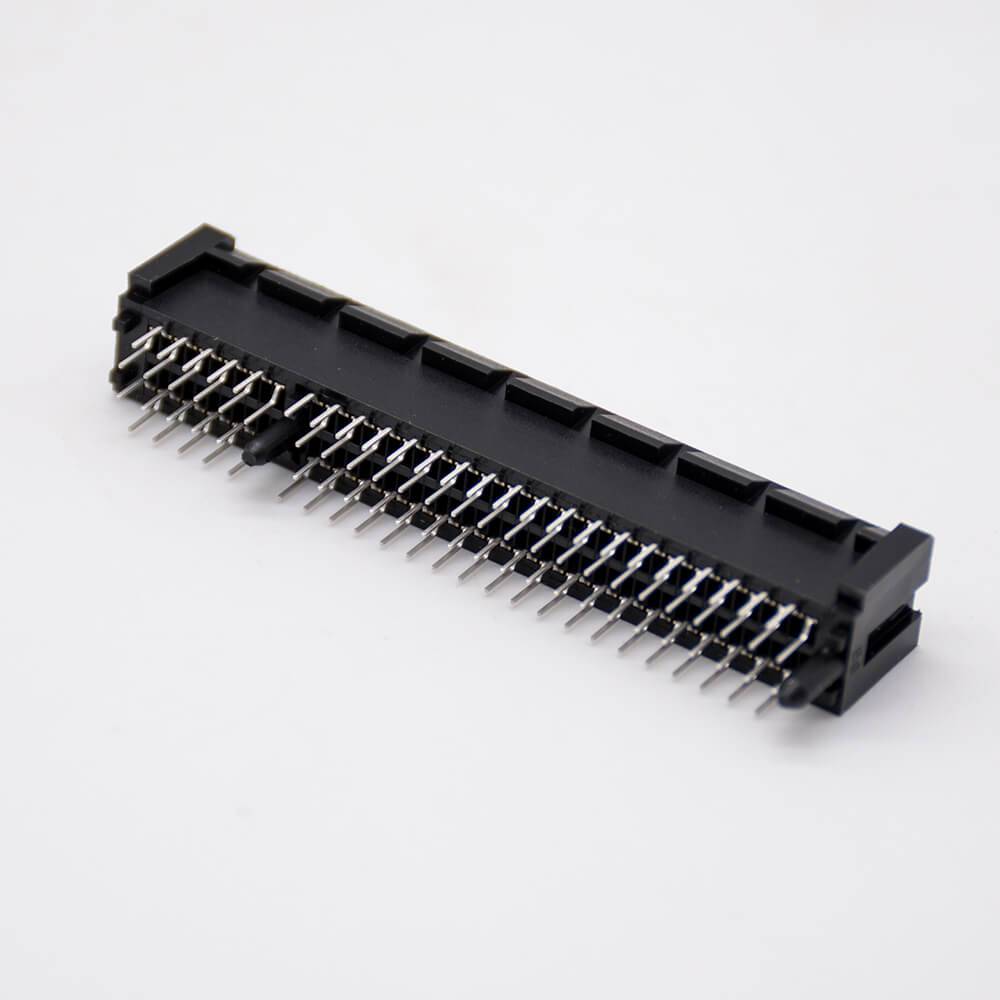

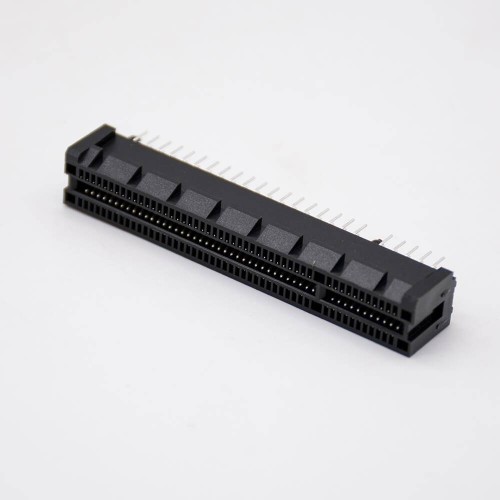

PCIE 98 Pin Connector Plug-in PCB Mount 8X Black Card Slot Connector

Main Application

• Memory card for computer or communication equipment
• Visual equipment
• Wi-Fi
• Bluetooth
• GPS
• Solid State Storage Device (SSD)
• Global Navigation Satellite System (GNSS)
• Near Field Communication (NFC)
• Hybrid Digital Broadcast (HDR)

Electrical Characteristics

• Withstand voltage: 500Vr.m.s, 1mA, 60s
• Insulation resistance: ≥1000MΩ
• Contact resistance: ≤30MΩ

Mechanical characteristics

• Insertion force: ≤1.15N/pair of pins
• Pull-out force: ≥0.15N/pair of pins
• Mechanical life: 50 times

Environmental and Processing

• Working temperature: -40°C~+100°C
• Humidity: ≤93% (at 40^C)
• Resistance to welding heat: 265°C+5°C, 10s

Material

• Colloid: PBT+30%GF, UL94V-2
• Pin material and plating: brass, contact area Au, solder area Sn 3~5μm
