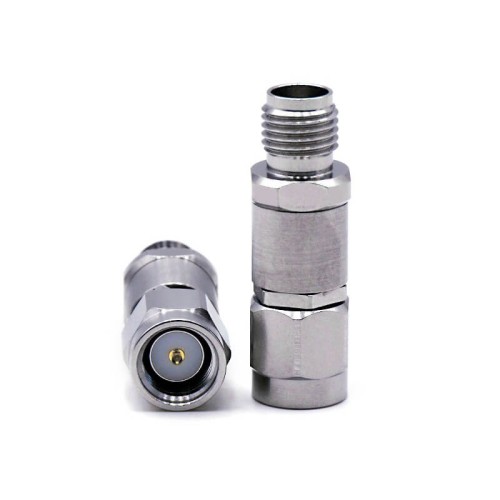

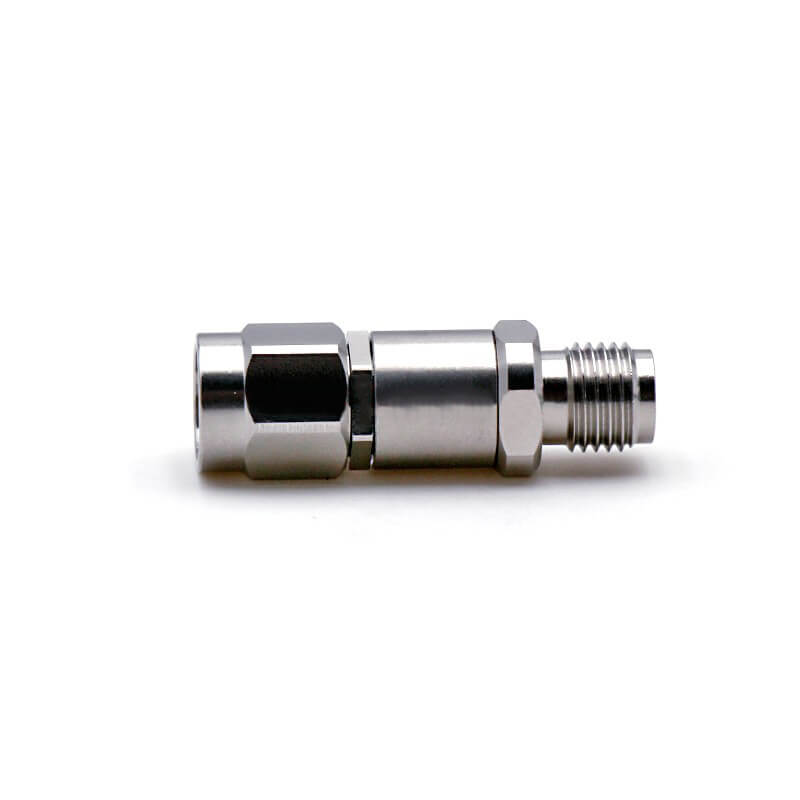

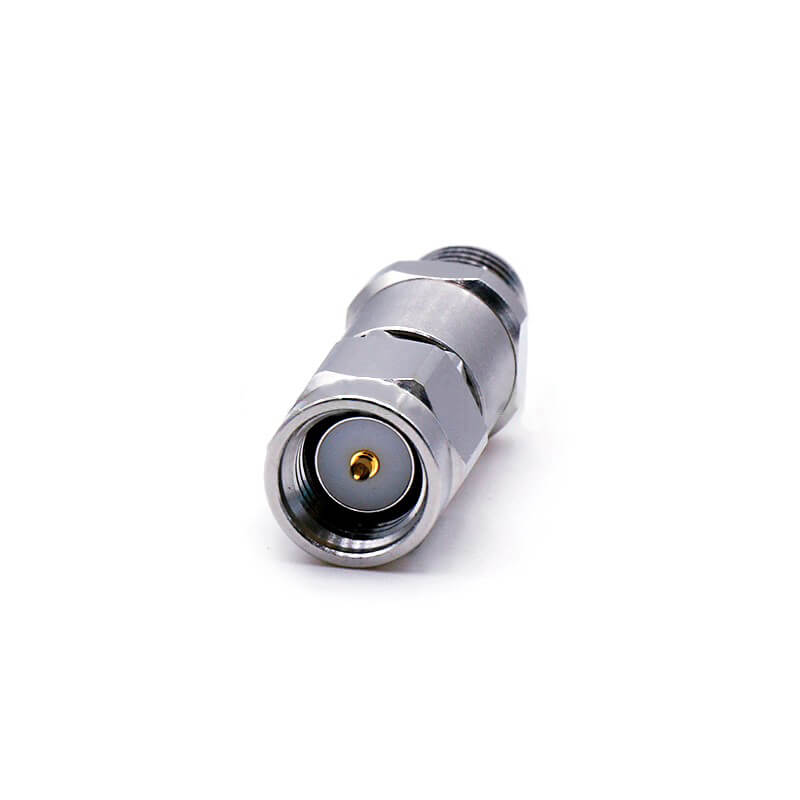

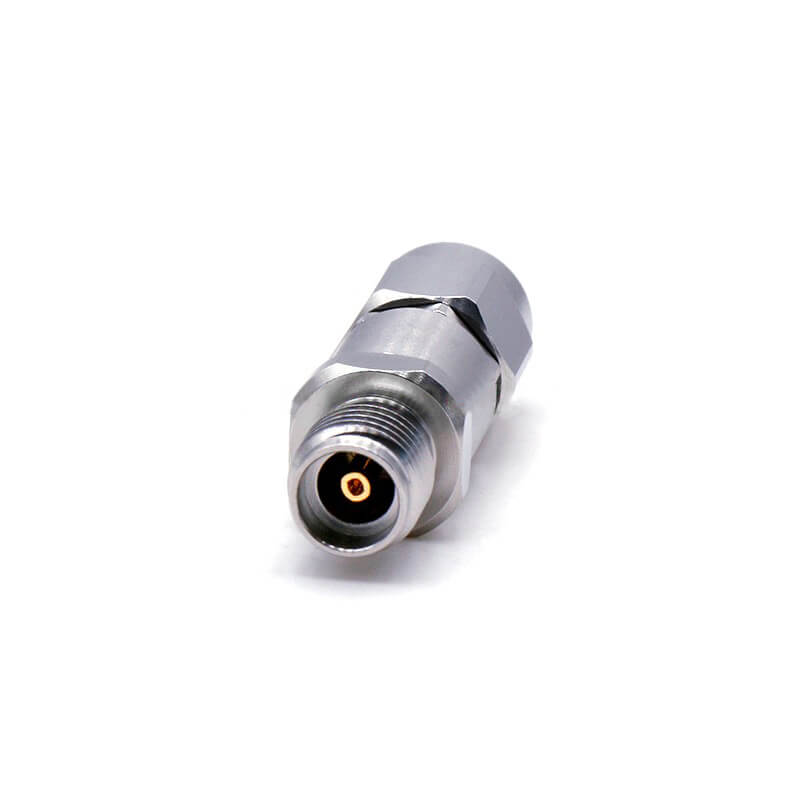

RF Coax Connector 3.5mm Female To SMA Male Dc-26.5Ghz Stainless Steel

Appliance:

• Cellular/Broadband amplifiers
• Radar systems
• High-speed routers and switches
• Microwave filters
• Wireless infrastructures
• Remote sensing and metering
• RFID
• GPS antennas

Electrical Characteristics

• Impedance：50 ohm
• Frequency Range:DC to 26.5 GHz
• Rated Voltage:170V(r.m.s.)
• Insulation Resistance:1000MΩ  (min.) at 500V DC
• Contact Resistance:3m Ω（max.)
• Outer C ontact  Resistance:2m Ω（max.)
• Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

• Mating Torque:5 - 7 in - lbs
• Connector Durability：500 mating cycles min

Environmental Characteristics

•  Temperature Range：-65°C to +165°C

Material:
