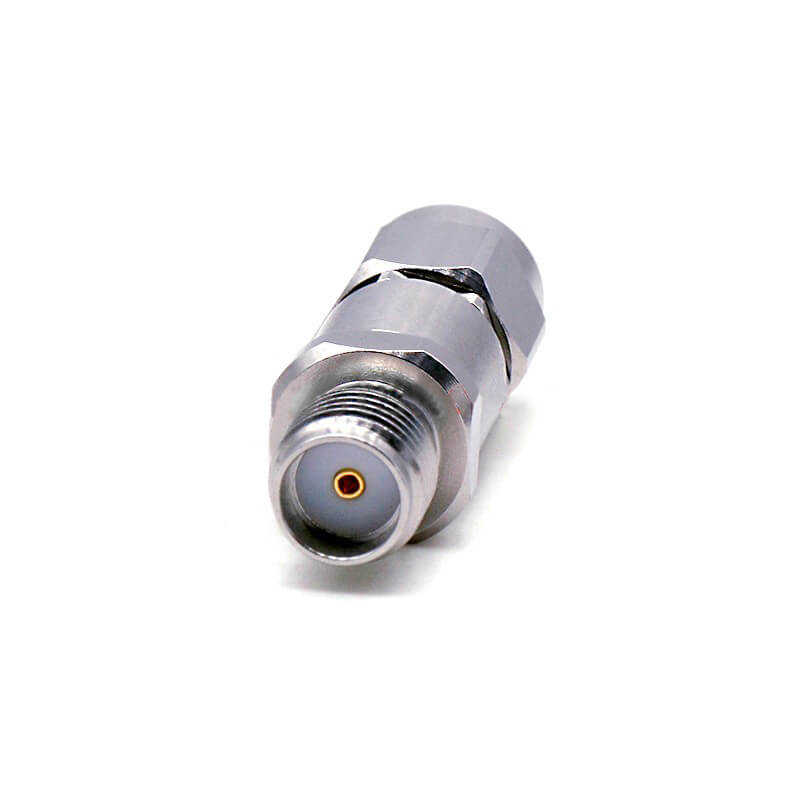

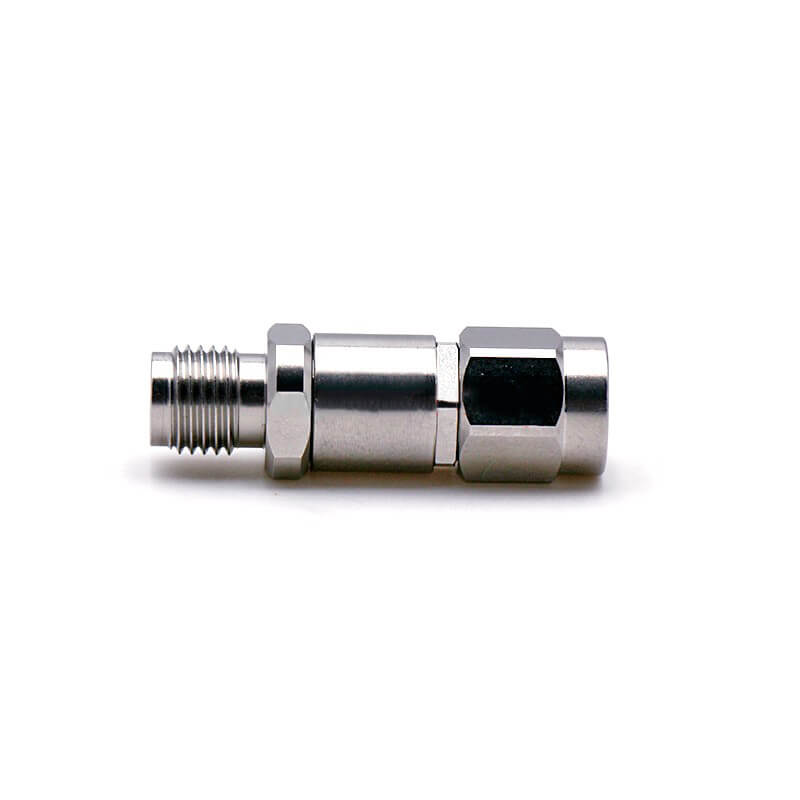

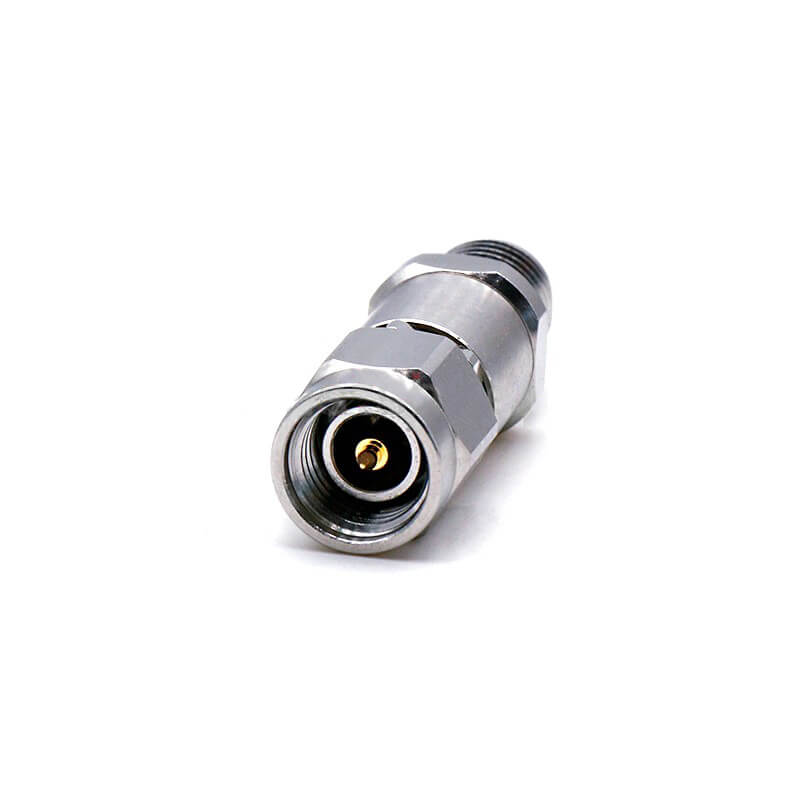

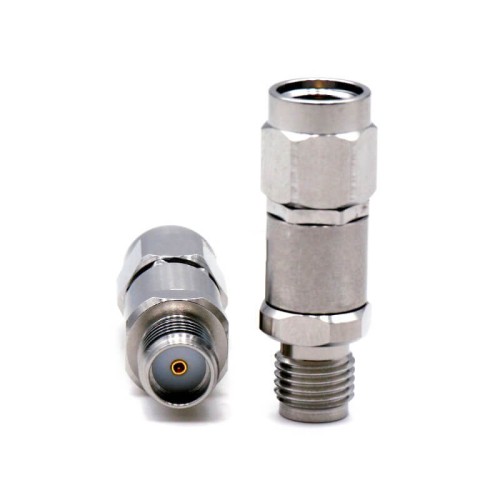

RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz

RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz
RF Coax Connector 3.5Mm Male To SMA Female Dc-26.5Ghz

Features:

  • SMA Connector, 3.5mm male To SMA  female, Straight, Stainless Steel,High frequency RF coax connector;
  • Operation from DC to 26.5 GHz
  • Impedance: 50 Ω
  • Dielectric: Air
  • Ideal PCB connector solution for high-frequency applications
  • Optimized end launch design with through-hole legs or traditional slide-on mounting legs
  • Available for multiple different PCB thicknesses
  • Interface Standards: IEEE 287-200
- Write a review
from
$68.14
Ex Tax: $68.14
5 or more $64.73
10 or more $61.33
  • Stock: In Stock
  • Model: JE00013146
  • Weight: 0.03kg
  • SKU: JE00013146
Products Sold: 0
Product Views: 4
Add to Cart
Buy Now Ask a question
Add to Wish List Compare this Product
Add to Cart
Buy Now
  • Specifications
attribute-list
Body Material Steel
Connector A Direction Straight
Connector B Direction Straight
Connector A Gender Male
Connector A Type 3.5mm
Connector B Type SMA
Connector B Gender Female
  • Description

Appliance:

  • Cellular/Broadband amplifiers
  • Radar systems
  • High-speed routers and switches
  • Microwave filters
  • Wireless infrastructures
  • Remote sensing and metering
  • RFID
  • GPS antennas





Electrical Characteristics

  • Impedance：50 ohm
  • Frequency Range:DC to 26.5 GHz
  • Rated Voltage:170V(r.m.s.)
  • Insulation Resistance:1000MΩ  (min.) at 500V DC
  • Contact Resistance:3m Ω（max.)
  • Outer C ontact  Resistance:2m Ω（max.)
  • Shielding Effectiveness:≥ 100 dB

Mechanical Characteristics

  • Mating Torque:5 - 7 in - lbs
  • Connector Durability：500 mating cycles min

Environmental Characteristics

  •  Temperature Range：-65°C to +165°C



Material:

Part Material Finish
Body Stainless Steel Stainless stee
Center Contact  Pin Copper Alloy Au Plating
Insulator PTFE white
