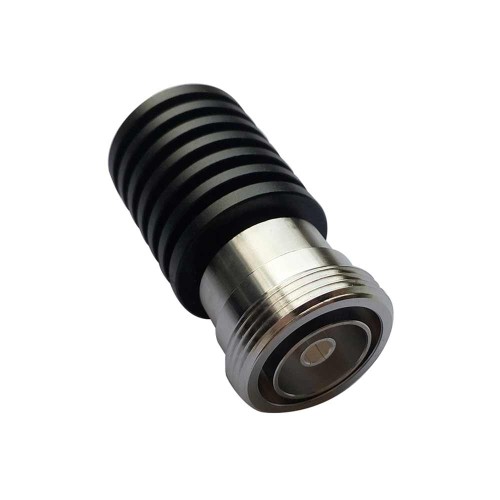

DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz

DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz
DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz
DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz
DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz
DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz

Product features:

  • DIN Female,  Straight, DC-3/4/6G  10W
  • Special shielding design, excellent surge performance, can withstand multiple lightning strikes;
  • Excellent passive intermodulation performance, excellent rf performance in the whole working band and superior power processing capability;
  • Bi-directional protection、DC Pass;
  • High Quality with 30 days 100% Money back;
  • From the OEM Original Factory, same quality with much better price.

Applications:

  • 3G/4G/LTE Cellular Modems
  • Routers
  • Boosters/Amplifiers
  • 2.4&5GHz WiFi Access Points
  • other Sensitive Communications Devices
from
$15.58
Ex Tax: $15.58
  • Stock: In Stock
  • Model: JE00003373
  • Weight: 0.95kg
  • SKU: JE00003373
Products Sold: 0
Product Views: 3

Available Options

  • Description

1.Power: 10W

2.Frequency Range : DC-3/4/6G

3.VSWR: ≤1.20

4.Connector: DIN Female

5.Impedance:50Ω

 DIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHzDIN 10W Female 50 Ohm Coaxial RF Load Resistor DC-3/4/6GHz

Electrical Characteristics

  • Power capacity (W) : 0-100w
  • Contact resistance: 50 Ω
  • Frequency range:DC - 6GHz

Mechanical Characteristics

  • Connector Mounting Type:Bulkhead/Panel/Outdoor
  • Installation angle:Straight/ Right Angle
  • Durability: >500 cycles

Environmental Characteristics

  • Ambient temperature:-40 ~ +85ºC
  • Temperature: -40 to +155°C/ 5 to 95% non-condensing
  • Environmental Protection L evel: IP55

Material:

art Material
Outer conductor copper/stainless steel
Central conductor copper
Insulator polytetrafluoroethylene/polyethylene
Coating gold plated/silver/nickel/tin
Construction Nickel plated brass
